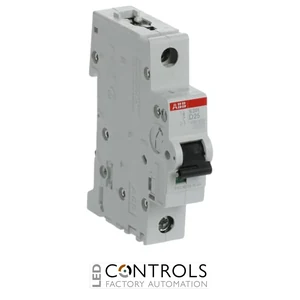

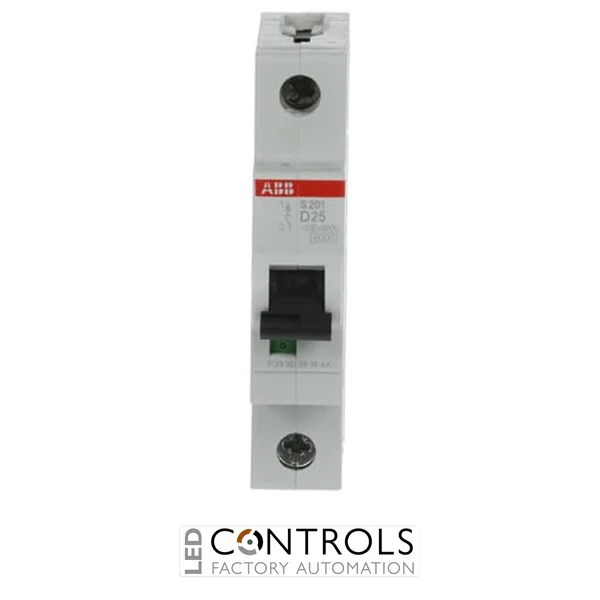

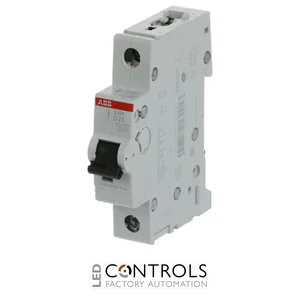

ABB S201-D25 single-pole miniature circuit breaker with a 25 A rated current, D curve tripping characteristic and 6 kA rated breaking capacity for overload and short-circuit protection.
£21.48
The ABB S201-D25 is a high-quality single-pole miniature circuit breaker (MCB) designed to protect electrical circuits against overloads and short circuits. Part of the established ABB System pro M Compact S200 series, this current-limiting circuit breaker provides dependable protection for residential, commercial and industrial electrical installations.
The S201-D25 incorporates two complementary tripping mechanisms. A delayed thermal mechanism provides overload protection, while an electromechanical mechanism responds rapidly to short-circuit faults. This combination helps protect cables, connected equipment and electrical systems while supporting safe and reliable long-term operation.
With a 25 A rated current, a D curve tripping characteristic and a 6 kA rated breaking capacity according to IEC/EN 60898-1, the ABB S201-D25 is particularly suitable for circuits with high temporary starting currents. Typical loads include motors, transformers, solenoids, power supplies and industrial machinery.
The ABB S201-D25 automatically disconnects an electrical circuit when excessive current is detected. Its thermal tripping mechanism responds to sustained overload conditions, while the electromagnetic mechanism provides rapid protection against short-circuit currents.
The D curve characteristic allows the circuit breaker to tolerate higher temporary starting currents than B or C curve devices. This makes the S201-D25 suitable for correctly designed circuits supplying motors, transformers and electromagnetic equipment that may produce significant inrush current during start-up.
| Current | 25 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S200 |
| Model | S201-D25 |
| Manufacturer part number | 2CDS251001R0251 |
| EAN | 4016779530057 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 25 A |
| Number of poles | 1 |
| Tripping characteristic | D |
| Rated breaking capacity Icn | 6 kA at 230/400 V AC |
| Rated ultimate breaking capacity Icu | 10 kA at 230/400 V AC |
| Rated operational voltage | 230 / 400 V AC |
| Frequency | 50 Hz |
| Rated impulse withstand voltage | 4 kV |
| Protection rating | IP20 |
| Mounting type | 35 mm DIN rail |
| Solid conductor capacity | 0.75–35 mm² |
| Flexible conductor capacity | 0.75–25 mm² |
| Operating temperature | -25 to +55 °C |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2 and UL 1077 |
| Dimensions (H × W × D) | approx. 88 × 17.5 × 69 mm |
| Weight | approx. 0.125 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S201-D25 protects electrical circuits against overloads and short circuits, particularly where connected equipment produces high temporary starting currents.
A D curve miniature circuit breaker can tolerate relatively high short-duration inrush currents before magnetic tripping, making it suitable for certain motors, transformers and inductive loads.
The ABB S201-D25 has a rated current of 25 A.
The S201-D25 has a rated short-circuit breaking capacity of 6 kA according to IEC/EN 60898-1 and an ultimate breaking capacity of 10 kA according to IEC/EN 60947-2.
The circuit breaker is designed for installation on a standard 35 mm DIN rail inside a suitable distribution board, switchboard or electrical control panel.
ABB System pro M Compact miniature circuit breakers are widely specified by electricians, engineers and panel builders for dependable circuit protection, compact installation and compatibility with modern electrical distribution systems.
