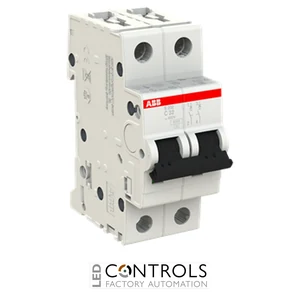

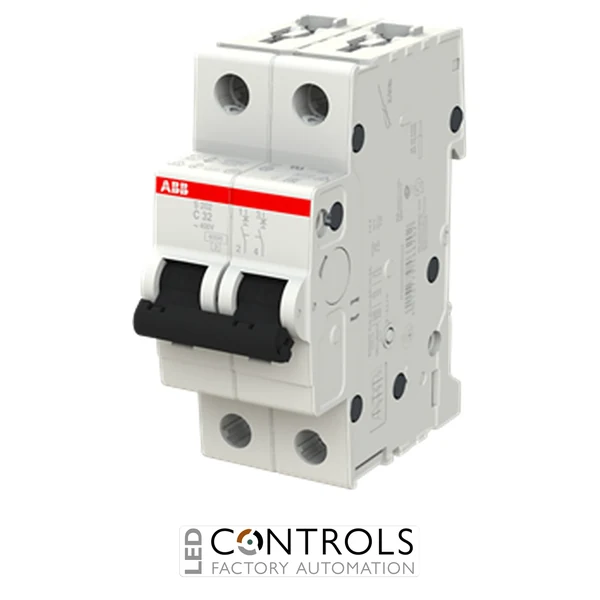

Why Choose the ABB S202-C32 Miniature Circuit Breaker?
The ABB S202-C32 is a premium two-pole miniature circuit breaker (MCB) designed to provide dependable protection against overloads and short circuits in residential, commercial and industrial electrical installations. As part of the trusted ABB System pro M Compact S200 series, it combines reliable current-limiting performance with compact dimensions and long service life.
The S202-C32 incorporates both delayed thermal and electromagnetic tripping mechanisms. The thermal trip protects against prolonged overloads, while the magnetic trip rapidly disconnects short-circuit faults to help safeguard electrical wiring, switchgear and connected equipment. The compact modular design also allows bottom-mounted auxiliary contacts to be fitted, helping to save valuable panel space.
With a 32 A rated current, C curve tripping characteristic, two-pole configuration and a 6 kA rated breaking capacity, the ABB S202-C32 is ideal for protecting commercial distribution boards, consumer units, HVAC equipment, socket outlet circuits, industrial control panels and general-purpose electrical installations with moderate inrush currents.
Key Advantages
- Reliable two-pole overload and short-circuit protection.
- 32 A rated current for residential, commercial and industrial applications.
- C curve tripping characteristic suitable for circuits with moderate inrush currents.
- 6 kA rated breaking capacity according to IEC/EN 60898-1.
- Simultaneous switching and protection of both conductors.
- Compatible with ABB System pro M Compact auxiliary contacts and accessories.
Key Features
- ABB System pro M Compact S200 series.
- 32 A rated current.
- Two-pole (2P) configuration.
- C tripping characteristic.
- 6 kA rated short-circuit breaking capacity.
- Thermal overload protection.
- Electromagnetic short-circuit protection.
- 35 mm DIN rail mounting.
Reliable Protection for General Electrical Circuits
The ABB S202-C32 automatically disconnects electrical circuits when overload or short-circuit conditions occur, helping to minimise damage to wiring and connected equipment. The thermal tripping mechanism provides dependable overload protection, while the electromagnetic trip rapidly clears fault currents.
Its C curve characteristic is designed for applications with moderate temporary starting currents, making the S202-C32 ideal for commercial distribution boards, consumer units, lighting circuits, socket outlets, HVAC equipment, pumps, compressors, small motors and industrial control systems.
Typical Applications
- Commercial distribution boards.
- Residential consumer units.
- Lighting circuits.
- Socket outlet circuits.
- HVAC systems.
- Industrial control panels.
- OEM machinery.
- General-purpose electrical installations.
