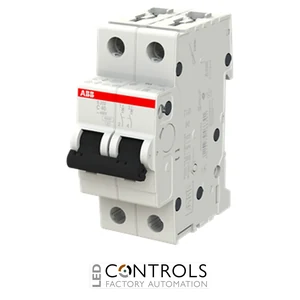

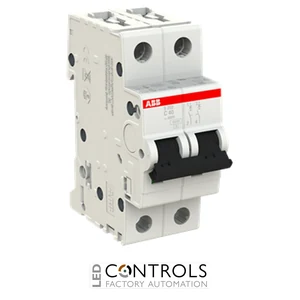

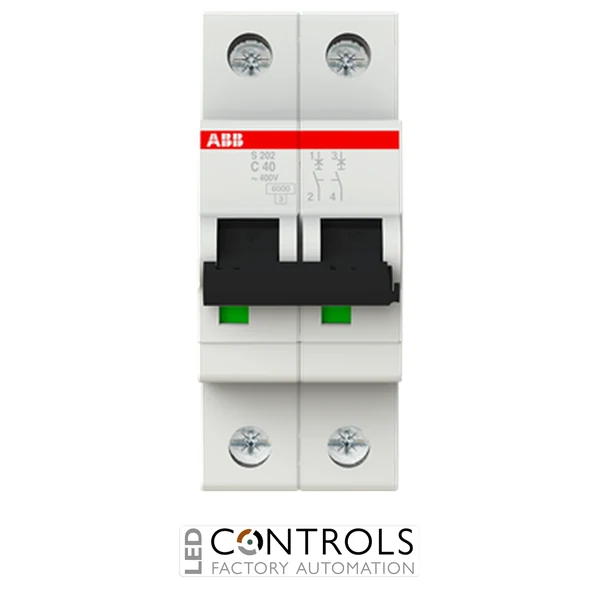

ABB S202-C40 two-pole miniature circuit breaker with a 40 A rated current, C curve tripping characteristic and 6 kA rated breaking capacity for overload and short-circuit protection.
£55.79
The ABB S202-C40 is a dependable two-pole miniature circuit breaker (MCB) designed to protect electrical circuits against overloads and short circuits. Part of the established ABB System pro M Compact S200 series, it provides current-limiting protection for residential, commercial and industrial electrical distribution systems.
The S202-C40 uses two complementary tripping mechanisms. A delayed thermal mechanism responds to sustained overloads, while an electromagnetic mechanism provides rapid disconnection during short-circuit conditions. This helps protect cables, switchgear and connected equipment from damaging overcurrents.
With a 40 A rated current, C curve tripping characteristic, two-pole configuration and 6 kA rated breaking capacity, the ABB S202-C40 is suitable for correctly designed circuits with moderate inrush currents. Typical uses include commercial distribution boards, HVAC equipment, pumps, motors, industrial control panels and general-purpose power distribution.
The ABB S202-C40 automatically disconnects a circuit when an overload or short circuit occurs. Its thermal trip responds to prolonged overcurrent, while the electromagnetic trip rapidly interrupts high fault currents to help minimise damage to electrical wiring and connected equipment.
The C curve characteristic provides tolerance for moderate temporary inrush currents while maintaining effective fault protection. This makes the S202-C40 suitable for circuits supplying HVAC systems, pumps, motors, commercial equipment and industrial machinery, provided the breaker rating and cable size have been selected by a qualified electrical professional.
| Current | 40 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S200 |
| Model | S202-C40 |
| Manufacturer part number | 2CDS252001R0404 |
| EAN | 4016779466301 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 40 A |
| Number of poles | 2 |
| Number of protected poles | 2 |
| Tripping characteristic | C |
| Rated breaking capacity (Icn) | 6 kA at 230 / 400 V AC |
| Ultimate short-circuit breaking capacity (Icu) | 20 kA at 230 V AC and 10 kA at 400 V AC |
| Rated operational voltage | 230 / 400 V AC |
| Maximum operational voltage | 440 V AC |
| Rated DC voltage | 125 V DC |
| Frequency | 50 / 60 Hz |
| Rated insulation voltage (Ui) | 440 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Energy-limiting class | 3 |
| Protection rating | IP20 |
| Electrical endurance | 10,000 operating cycles |
| Mechanical endurance | 20,000 operating cycles |
| Terminal tightening torque | 2.8 N·m |
| Mounting type | 35 mm DIN rail |
| Module width | 2 modules |
| Dimensions (H × W × D) | approximately 88 × 35 × 69 mm |
| Weight | approximately 0.25 kg |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2 and UL 1077 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S202-C40 protects higher-current electrical circuits against overloads and short circuits in commercial, industrial and suitable residential installations.
A C curve miniature circuit breaker is designed to tolerate moderate temporary inrush currents, making it suitable for equipment such as HVAC systems, pumps, transformers and motors.
The ABB S202-C40 has a rated current of 40 A.
The S202-C40 is a two-pole miniature circuit breaker, allowing two conductors to be protected and disconnected simultaneously.
The ABB S202-C40 has a rated short-circuit breaking capacity of 6 kA according to IEC/EN 60898-1.
The circuit breaker is designed for installation on a standard 35 mm DIN rail inside a suitable distribution board, switchboard or electrical control panel.
ABB System pro M Compact miniature circuit breakers are widely specified by electricians, engineers and panel builders for dependable circuit protection, compact installation and compatibility with modern electrical distribution systems.
