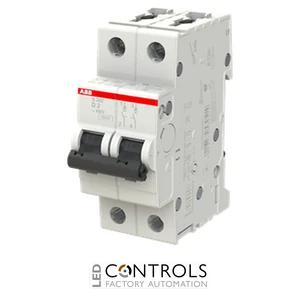

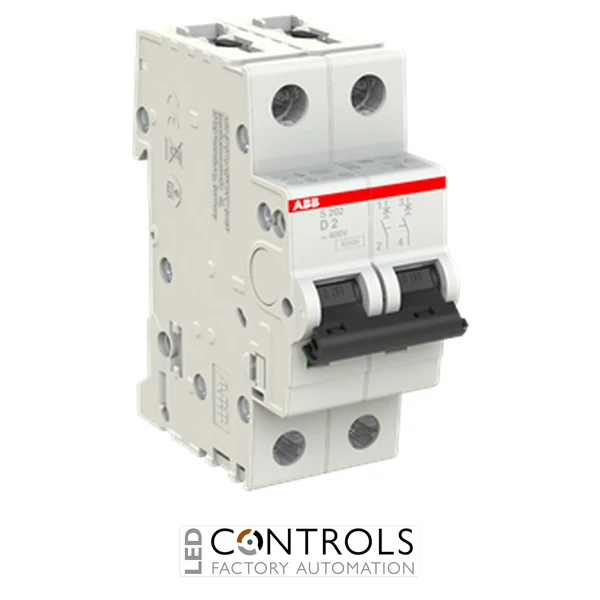

ABB S202D2 2-pole 2 A miniature circuit breaker with D curve tripping characteristic and 6 kA breaking capacity for overload and short-circuit protection.
£64.86
The ABB S202D2 is a high-performance 2-pole miniature circuit breaker (MCB) engineered to provide reliable protection against overloads and short circuits in commercial, industrial and specialist electrical installations. As part of the proven ABB System pro M Compact S200 series, it combines dependable protection with robust construction and long service life.
Featuring a D curve tripping characteristic, the S202D2 is specifically designed for circuits with high inrush currents, making it ideal for equipment such as transformers, motors, compressors and other inductive loads. Its current-limiting design helps minimise fault energy while maintaining excellent protection for both equipment and wiring.
With a 2 A rated current, 2-pole configuration and a 6 kA short-circuit breaking capacity, the ABB S202D2 is suitable for applications operating on systems up to 400 V AC. The compact DIN rail mounting format allows fast installation into distribution boards and industrial control panels.
The ABB S202D2 automatically disconnects electrical circuits during overload or short-circuit conditions, protecting cables, equipment and connected electrical systems. Its D curve characteristic allows temporary high inrush currents without nuisance tripping, making it well suited to demanding industrial applications.
The ABB S200 miniature circuit breaker range is trusted by electrical contractors, machine builders and panel manufacturers for delivering reliable circuit protection, simple installation and compliance with international electrical standards.
| Current | 2 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S200 |
| Model | S202D2 |
| Product type | Miniature Circuit Breaker (MCB) |
| Current rating | 2 A |
| Number of poles | 2 |
| Trip characteristic | D Curve |
| Rated operational voltage | 400 V AC |
| Maximum operational voltage | 440 V AC |
| Rated frequency | 50 / 60 Hz |
| Short-circuit breaking capacity | 6 kA |
| Protection rating | IP20 |
| Mounting type | DIN rail |
| Dimensions (H × W × D) | approx. 88 × 35 × 69 mm |
| Weight | approx. 0.25 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S202D2 protects electrical circuits against overloads and short circuits, particularly those supplying equipment with high inrush currents.
D curve breakers are designed to tolerate higher temporary starting currents, making them suitable for motors, transformers, compressors and other inductive equipment.
The S202D2 is a 2-pole miniature circuit breaker designed to protect two conductors simultaneously.
The ABB S202D2 has a 2 amp current rating.
The breaker is designed for installation onto standard DIN rails within distribution boards and industrial electrical control panels.
ABB System pro M Compact miniature circuit breakers are widely specified across industrial, commercial and OEM applications for their dependable protection, robust construction and consistent long-term performance.
