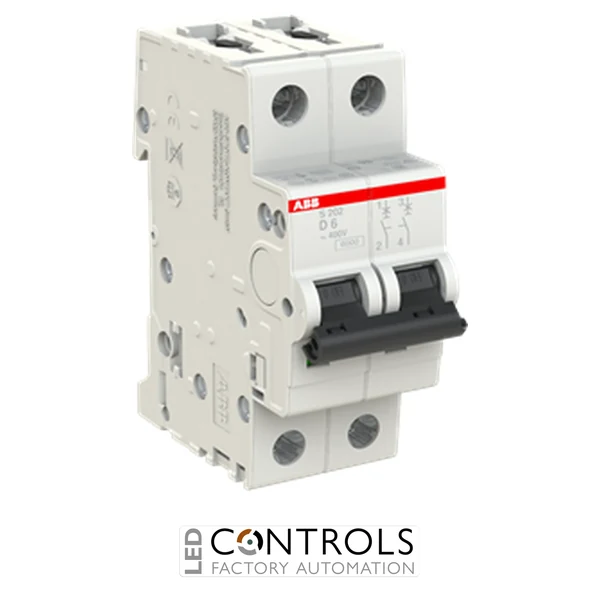

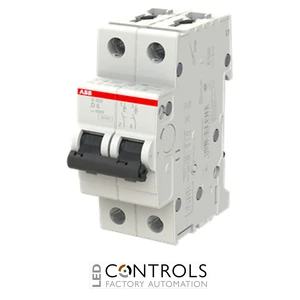

ABB S202-D6 2-pole 6 A miniature circuit breaker with D curve tripping characteristic and 6 kA breaking capacity for overload and short-circuit protection.
£59.00
The ABB S202D6 is a premium 2-pole miniature circuit breaker (MCB) engineered to provide dependable protection against overloads and short circuits in commercial, industrial and specialist electrical installations. As part of the trusted ABB System pro M Compact S200 series, it combines robust performance with reliable circuit protection for demanding applications.
Featuring a D curve tripping characteristic, the S202D6 is specifically designed for circuits with high inrush currents, making it ideal for transformers, motors, compressors, solenoids and other inductive loads. Its current-limiting design helps minimise fault energy while reducing the risk of damage to electrical equipment.
With a rated current of 6 A, a 2-pole configuration and a 6 kA short-circuit breaking capacity, the ABB S202D6 is suitable for electrical systems operating up to 400 V AC. Its compact DIN rail mounting format allows quick installation into distribution boards, control panels and OEM machinery.
The ABB S202D6 automatically disconnects electrical circuits when overload or short-circuit conditions occur, protecting cables, electrical equipment and connected loads. Its D curve characteristic allows temporary high starting currents without nuisance tripping, making it ideal for inductive applications.
The ABB S200 miniature circuit breaker range is trusted by electrical contractors, panel builders and OEM manufacturers for dependable protection, long service life and compliance with recognised international electrical standards.
| Current | 6 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S200 |
| Model | S202-D6 |
| Product code | 2CDS252001R0061 |
| EAN | 4016779530545 |
| Product type | Miniature Circuit Breaker (MCB) |
| Current rating | 6 A |
| Number of poles | 2 |
| Trip characteristic | D Curve |
| Rated operational voltage | 400 V AC |
| Maximum operational voltage | 440 V AC |
| Rated frequency | 50 / 60 Hz |
| Short-circuit breaking capacity | 6 kA |
| Impulse withstand voltage | 4 kV |
| Protection rating | IP20 |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL1077 |
| Mounting type | DIN rail |
| Dimensions (H × W × D) | approx. 88 × 35 × 69 mm |
| Weight | approx. 0.25 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S202D6 protects electrical circuits against overloads and short circuits, particularly those supplying equipment with high inrush currents.
A D curve breaker is designed to tolerate high temporary starting currents, making it suitable for motors, transformers, compressors and other inductive loads.
The S202D6 is a 2-pole miniature circuit breaker designed to protect two conductors simultaneously.
The ABB S202D6 has a 6 amp current rating.
The breaker mounts onto a standard DIN rail inside electrical distribution boards and industrial control panels.
ABB System pro M Compact miniature circuit breakers are widely specified across commercial and industrial installations for delivering reliable electrical protection, robust construction and long-term performance.
