Why Choose the ABB S203MC2-1 Miniature Circuit Breaker?

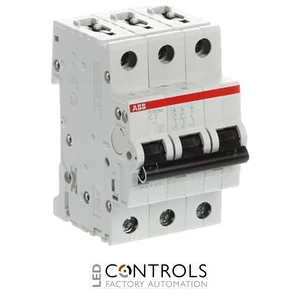

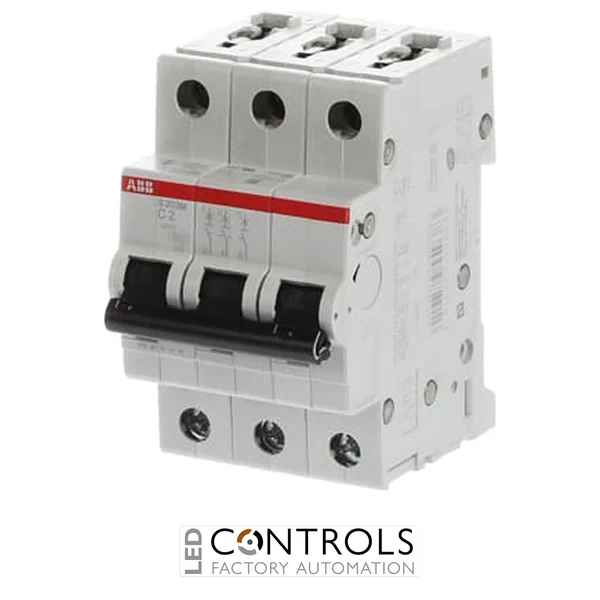

The ABB S203MC2-1, also identified as S203M-C2, is a premium three-pole miniature circuit breaker (MCB) engineered to protect electrical circuits against overloads and short circuits. As part of the proven ABB System pro M compact S200M series, it delivers dependable protection for residential, commercial and industrial electrical installations.
The circuit breaker incorporates both a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for rapid short-circuit interruption. Its C-curve tripping characteristic makes it suitable for general power distribution circuits, lighting systems, control panels and equipment with moderate inrush currents.
With a rated current of 2 A, a three-pole configuration and a 10 kA rated short-circuit capacity at 230/400 V AC, the S203MC2-1 provides reliable protection for low-current three-phase circuits. Its compact modular construction enables straightforward installation on standard 35 mm DIN rails inside electrical distribution boards and industrial control panels.
Key Advantages
- Reliable overload and short-circuit protection for three-phase electrical circuits.
- 2 A rated current for low-current applications.
- C-curve tripping characteristic for circuits with moderate inrush currents.
- 10 kA rated short-circuit breaking capacity.
- Current-limiting design helps reduce fault energy.
- Compact DIN rail mounting simplifies installation.
Key Features
- ABB System pro M compact S200M series.
- Three-pole miniature circuit breaker.
- 2 A rated current.
- C tripping characteristic.
- 10 kA rated short-circuit capacity (Icn).
- Thermal overload and magnetic short-circuit protection.
- Bottom-mounted auxiliary contact compatibility.
- Current-limiting construction.
- Red ON and green OFF contact indication.
- 35 mm DIN rail mounting.
Reliable Circuit Protection for Electrical Installations
The ABB S203MC2-1 automatically disconnects electrical circuits whenever overload or short-circuit conditions occur, helping protect wiring, connected equipment and personnel. Its current-limiting construction reduces fault energy and contributes to improved system reliability.
Its C-curve characteristic makes the breaker ideal for protecting lighting circuits, control systems, distribution boards and other electrical installations where moderate temporary current surges are expected during normal operation.
Typical Applications
- Commercial electrical distribution boards.
- Industrial control panels.
- Lighting circuits.
- Building services installations.
- Automation and OEM machinery.
- General-purpose three-phase distribution circuits.
