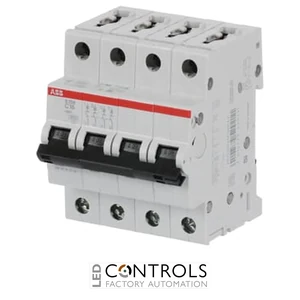

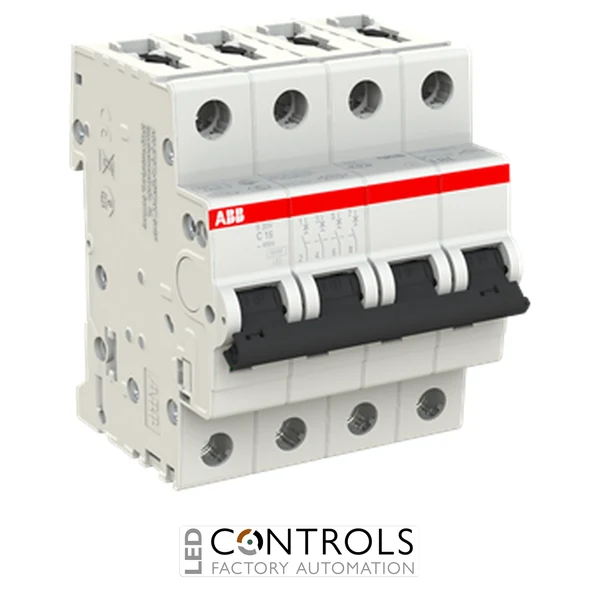

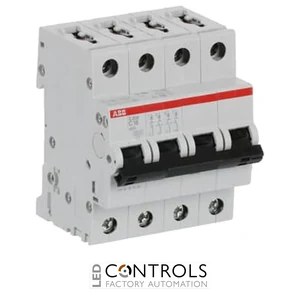

ABB S204C16 four-pole miniature circuit breaker with a 16 A rating, C-curve tripping characteristic and 6 kA short-circuit capacity for commercial and industrial electrical protection.
£193.89
The ABB S204C16, also identified as S204-C16, is a premium four-pole miniature circuit breaker (MCB) designed to protect electrical circuits against overloads and short circuits. As part of the trusted ABB System pro M compact S200 series, it provides dependable protection for residential, commercial and industrial electrical installations.
The circuit breaker incorporates a delayed thermal tripping mechanism for overload protection together with an electromechanical tripping mechanism for rapid short-circuit interruption. Its C-curve tripping characteristic makes it ideal for protecting distribution circuits, lighting installations, HVAC systems, control panels and equipment with moderate inrush currents.
With a rated current of 16 A, a four-pole configuration and a rated short-circuit capacity of 6 kA at 230/400 V AC, the S204C16 offers reliable protection for three-phase installations with neutral switching. Its compact modular design enables quick installation on standard 35 mm DIN rails within distribution boards and switchboards.
The ABB S204C16 automatically disconnects electrical circuits whenever overload or short-circuit conditions occur, helping protect cables, equipment and connected installations. Its current-limiting design reduces fault energy, contributing to improved safety and longer equipment life.
Its C-curve tripping characteristic makes it well suited to protecting three-phase distribution systems, lighting circuits, HVAC equipment, machinery and commercial electrical installations where moderate starting currents are present.
| Current | 16 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S200 |
| Model | S204-C16 |
| Commercial reference | S204C16 |
| Product ID | 2CDS254001R0164 |
| EAN | 4016779529211 |
| Product type | Miniature circuit breaker |
| Number of poles | 4 |
| Number of protected poles | 4 |
| Rated current | 16 A |
| Tripping characteristic | C curve |
| Rated operational voltage | 230 / 400 V AC |
| Maximum operational voltage | 440 V AC |
| Rated frequency | 50 / 60 Hz |
| Rated short-circuit capacity (Icn) | 6 kA at 230/400 V AC |
| Rated insulation voltage | 440 V |
| Rated impulse withstand voltage | 4 kV |
| Protection rating | IP20 |
| Protection in enclosure | IP40 |
| Terminal type | Screw terminals |
| Mounting type | 35 mm DIN rail |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2 and UL 1077 |
| Operating temperature | -25 to +55 °C |
| Dimensions (H × W × D) | approximately 88 × 70 × 69 mm |
| Weight | approximately 0.50 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S204C16 protects four-pole electrical circuits against overloads and short circuits in residential, commercial and industrial installations.
The miniature circuit breaker has a rated current of 16 A.
A C-curve miniature circuit breaker is suitable for circuits with moderate inrush currents, including lighting, HVAC equipment, control panels and general power distribution.
The circuit breaker provides a rated short-circuit breaking capacity of 6 kA at 230/400 V AC.
The S204C16 is designed for installation on a standard 35 mm DIN rail inside electrical distribution boards and industrial control panels.
ABB System pro M compact miniature circuit breakers are trusted worldwide by electrical contractors, panel builders and automation engineers for dependable protection, proven reliability and straightforward installation.
