Why Choose the ABB S204D32 Miniature Circuit Breaker?

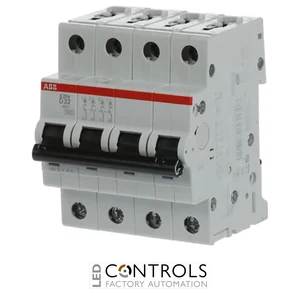

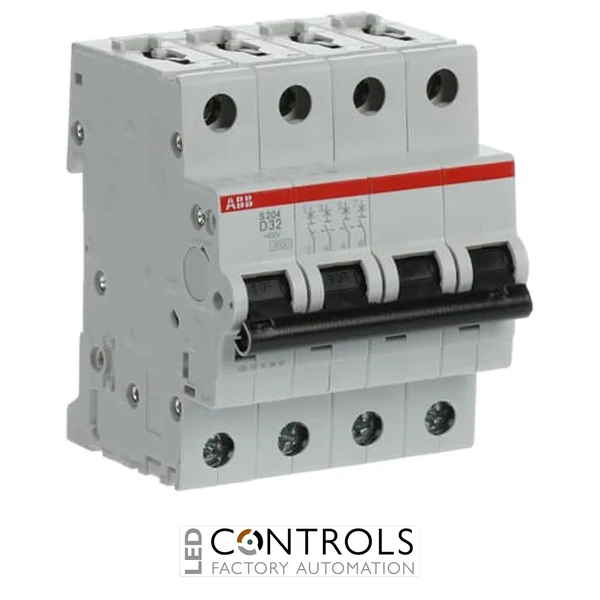

The ABB S204D32, also identified as S204-D32, is a premium four-pole miniature circuit breaker (MCB) designed to provide dependable protection against overloads and short circuits. As part of the trusted ABB System pro M compact S200 series, it delivers reliable protection for commercial, industrial and specialist electrical installations.
The circuit breaker combines a delayed thermal tripping mechanism for overload protection with an electromechanical tripping mechanism for rapid short-circuit interruption. Its D-curve tripping characteristic makes it ideal for circuits with high inrush currents, including motors, transformers, compressors, welding equipment and industrial machinery.
With a rated current of 32 A, a four-pole configuration and a rated short-circuit capacity of 6 kA at 230/400 V AC, the S204D32 provides dependable protection for three-phase installations requiring neutral switching. Its compact modular design enables straightforward installation on a standard 35 mm DIN rail inside distribution boards, switchboards and industrial control panels.
Key Advantages
- Reliable overload and short-circuit protection for four-pole electrical circuits.
- 32 A rated current for commercial and industrial applications.
- D-curve tripping characteristic designed for high inrush current loads.
- 6 kA rated short-circuit breaking capacity.
- Current-limiting construction helps reduce fault energy.
- Compact DIN rail mounting for quick installation and maintenance.
Key Features
- ABB System pro M compact S200 series.
- Four-pole miniature circuit breaker.
- 32 A rated current.
- D tripping characteristic.
- 6 kA rated short-circuit capacity (AC).
- Thermal overload and magnetic short-circuit protection.
- Current-limiting design for improved electrical safety.
- Compatible with ABB bottom-mounted auxiliary contacts.
- Suitable for residential, commercial and industrial applications.
- 35 mm DIN rail mounting.
Reliable Protection for High Inrush Current Applications
The ABB S204D32 automatically disconnects electrical circuits whenever overload or short-circuit conditions occur, helping protect cables, connected equipment and personnel. Its current-limiting construction reduces fault energy and contributes to improved electrical safety.
Its D-curve characteristic is specifically intended for circuits with high starting currents, making it particularly suitable for motors, transformers, compressors, welding equipment and industrial machinery where nuisance tripping must be avoided during normal start-up.
Typical Applications
- Three-phase distribution boards with neutral protection.
- Industrial motors and motor control circuits.
- Transformers and inductive loads.
- Compressors and pumps.
- Industrial machinery and manufacturing equipment.
- OEM control panels and automation systems.
