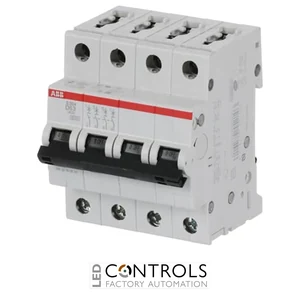

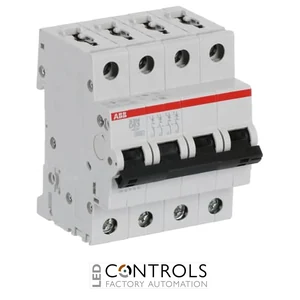

ABB S204D63 four-pole miniature circuit breaker with a 63 A rating, D-curve tripping characteristic and 6 kA short-circuit capacity for industrial and commercial circuit protection.
£259.76
The ABB S204D63, also identified as S204-D63, is a premium four-pole miniature circuit breaker (MCB) designed to provide dependable protection against overloads and short circuits. As part of the trusted ABB System pro M compact S200 series, it is suitable for demanding residential, commercial and industrial electrical installations.
The breaker combines a delayed thermal tripping mechanism for overload protection with an electromechanical tripping mechanism for rapid short-circuit interruption. Its D-curve tripping characteristic is specifically intended for circuits with high inrush currents, including motors, transformers, compressors, pumps, welding equipment and other inductive loads.
With a rated current of 63 A, a four-pole configuration and a rated short-circuit capacity of 6 kA at 230/400 V AC, the S204D63 delivers reliable protection for three-phase installations requiring simultaneous switching of all four conductors. Its compact modular construction allows quick installation on a standard 35 mm DIN rail within distribution boards and industrial control panels.
The ABB S204D63 automatically disconnects electrical circuits whenever overload or short-circuit conditions occur, protecting cables, connected equipment and personnel. Its current-limiting construction helps minimise fault energy and contributes to improved installation safety.
Its D-curve characteristic makes it particularly suitable for motors, transformers, compressors, welding equipment and other inductive loads where high temporary starting currents are expected without causing nuisance tripping.
| Current | 63 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S200 |
| Model | S204-D63 |
| Commercial reference | S204D63 |
| Product ID | 2CDS254001R0631 |
| EAN | 4016779552103 |
| Product type | Miniature circuit breaker |
| Number of poles | 4 |
| Number of protected poles | 4 |
| Rated current | 63 A |
| Tripping characteristic | D curve |
| Rated operational voltage | 230 / 400 V AC |
| Maximum operational voltage | 440 V AC |
| Rated frequency | 50 / 60 Hz |
| Rated short-circuit capacity (Icn) | 6 kA at 230/400 V AC |
| Rated insulation voltage | 440 V |
| Rated impulse withstand voltage | 4 kV |
| Energy limiting class | 3 |
| Protection rating | IP20 |
| Terminal type | Screw terminals |
| Mounting type | 35 mm DIN rail |
| Operating temperature | -25 to +55 °C |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2 and UL 1077 |
| Dimensions (H × W × D) | approximately 88 × 70 × 69 mm |
| Weight | approximately 0.50 kg |
The ABB S204D63 protects four-pole electrical circuits against overloads and short circuits, especially where connected equipment produces high starting currents.
The miniature circuit breaker has a rated current of 63 A.
A D-curve miniature circuit breaker is intended for circuits with high inrush currents, making it ideal for motors, transformers, compressors and other inductive equipment.
The circuit breaker provides a rated short-circuit breaking capacity of 6 kA at 230/400 V AC.
The S204D63 is designed for installation on a standard 35 mm DIN rail inside electrical distribution boards, switchboards and industrial control panels.
ABB System pro M compact miniature circuit breakers are trusted worldwide by electrical contractors, panel builders and automation engineers for dependable protection, robust construction and long-term reliability.
