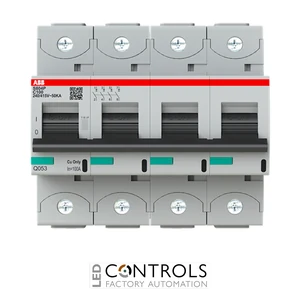

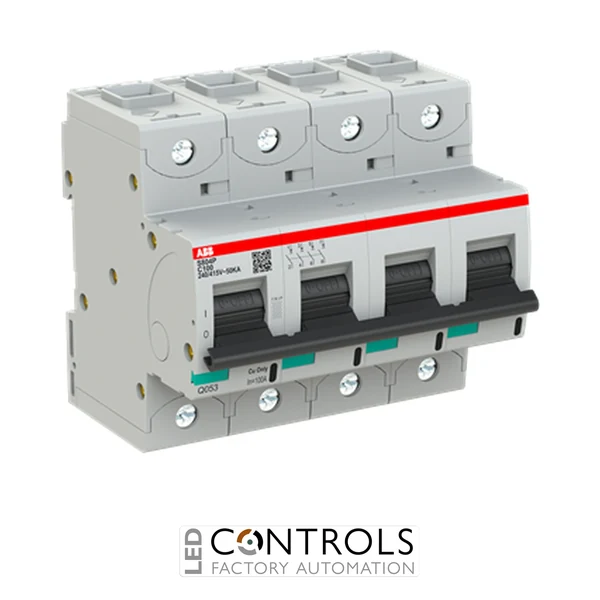

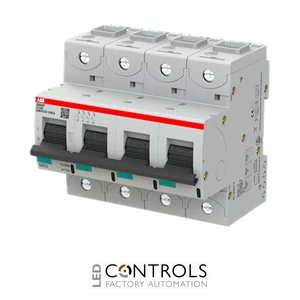

ABB S804P-C100 high performance miniature circuit breaker featuring a 100 A current rating, 4 poles, C characteristic and up to 50 kA breaking capacity for industrial electrical protection.
£486.00
The ABB S804P-C100 is a premium four-pole miniature circuit breaker (MCB) engineered to provide dependable protection against overloads and short circuits in demanding industrial and commercial electrical installations. Manufactured by ABB, this high performance circuit breaker delivers exceptional reliability where high fault levels and continuous operation are essential.
Designed as part of the trusted ABB S800 high performance MCB range, the S804P-C100 combines advanced protection technology with a compact DIN rail mounted design. Its robust construction and high breaking capacity make it suitable for protecting power distribution systems, machinery, switchboards and critical infrastructure.
With a 100 A current rating, C curve tripping characteristic and support for 690 V AC applications, the S804P-C100 is ideal for industrial installations requiring reliable protection, excellent selectivity and compliance with IEC/EN 60947-2 standards.
The ABB S804P-C100 safeguards electrical installations by automatically disconnecting power whenever overload or short circuit conditions occur. Its high breaking capacity enables it to interrupt exceptionally high fault currents, helping protect equipment, minimise downtime and improve electrical safety.
Designed for industrial switchboards, power distribution systems and OEM equipment, the S804P-C100 delivers long-term reliability while supporting modern electrical infrastructure with robust performance under demanding operating conditions.
| Current | 100 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | ABB |
| Series | S800 High Performance MCB |
| Model | S804P-C100 |
| Product ID | 2CCG001236R0001 |
| Product type | High Performance Miniature Circuit Breaker |
| Rated current | 100 A |
| Number of poles | 4 |
| Tripping characteristic | C Curve |
| Rated operational voltage | 400 V AC |
| Rated voltage | 690 V AC / 500 V DC |
| Rated insulation voltage (Ui) | 690 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Breaking capacity | Up to 50 kA |
| Protection rating | IP20 |
| Mounting type | DIN rail |
| Standards | IEC/EN 60947-2 |
| Dimensions (H × W × D) | Approx. 95 × 106 × 82.5 mm |
| HS Code | 85362090 |
| Country of Manufacture | Switzerland |
The S804P-C100 protects industrial electrical circuits against overloads and short circuits in commercial and industrial power distribution systems.
The ABB S804P-C100 has a 100 A rated current.
This model features a 4-pole configuration, making it suitable for protecting three-phase systems with neutral.
The breaker features a C characteristic, making it suitable for circuits with moderate inrush currents such as motors and general industrial loads.
The S804P-C100 is designed for quick installation onto standard DIN rails within electrical distribution boards and industrial control panels.
ABB S800 High Performance miniature circuit breakers are widely trusted by electrical engineers, panel builders and industrial maintenance professionals for delivering reliable circuit protection, outstanding fault interruption capability and long service life in demanding applications.
