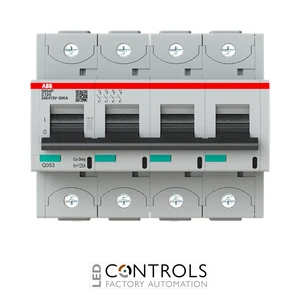

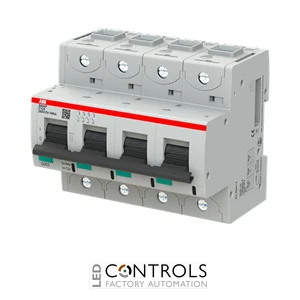

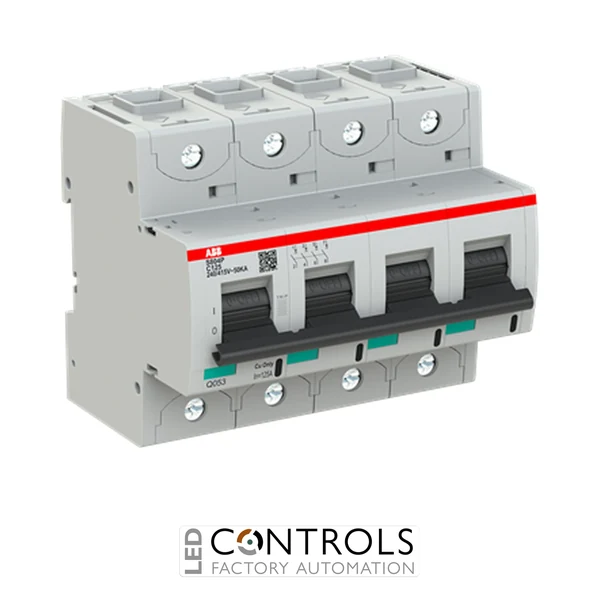

Why Choose the ABB S804P-C125 High Performance MCB?
The ABB S804P-C125 is a robust four-pole high performance miniature circuit breaker (MCB) designed to protect demanding industrial and commercial electrical installations against overloads and short circuits. Part of the advanced ABB S800P circuit breaker series, it combines a high rated current with exceptional fault interruption performance.
This circuit breaker features a C tripping characteristic, making it suitable for circuits containing equipment with moderate inrush currents. Its dependable thermal-magnetic protection helps safeguard cables, machinery and electrical distribution equipment while reducing the risk of damage caused by abnormal current conditions.
With a rated current of 125 A, a four-pole configuration and an ultimate short-circuit breaking capacity of up to 50 kA at 240/415 V AC, the S804P-C125 is ideal for high-demand power distribution, industrial switchboards and machine control systems. Its compact rail-mounted construction enables straightforward integration into professional electrical panels.
Key Advantages
- High performance four-pole miniature circuit breaker for demanding installations.
- 125 A rated current suitable for high-load distribution circuits.
- C characteristic trip curve supports circuits with moderate starting currents.
- Ultimate short-circuit breaking capacity of up to 50 kA at 240/415 V AC.
- Thermal-magnetic protection against overloads and short circuits.
- Compact rail-mounted format simplifies installation in control and distribution panels.
Key Features
- ABB S800P high performance MCB series.
- 125 A rated current.
- Four-pole configuration.
- C tripping characteristic.
- Rated operational voltage of 230/400 V AC.
- Suitable for systems up to 690 V AC.
- IP20 protection rating.
- Compliant with IEC/EN 60947-2.
Reliable Circuit Protection for High-Power Installations
The ABB S804P-C125 continuously monitors current flowing through an electrical circuit and disconnects the supply when an overload or short circuit occurs. Its thermal element provides overload protection, while its magnetic release responds rapidly to severe fault currents.
The S800P series is engineered for installations where conventional miniature circuit breakers may not provide sufficient current capacity or fault interruption performance. Its four-pole design enables simultaneous isolation of all conductors in compatible three-phase systems, supporting safe maintenance and dependable circuit protection.
Typical Applications
- Industrial power distribution boards.
- Commercial switchboards and electrical panels.
- Manufacturing and production machinery.
- Three-phase equipment and feeder circuits.
- Automation and motor control systems.
- Infrastructure, utilities and OEM installations.
