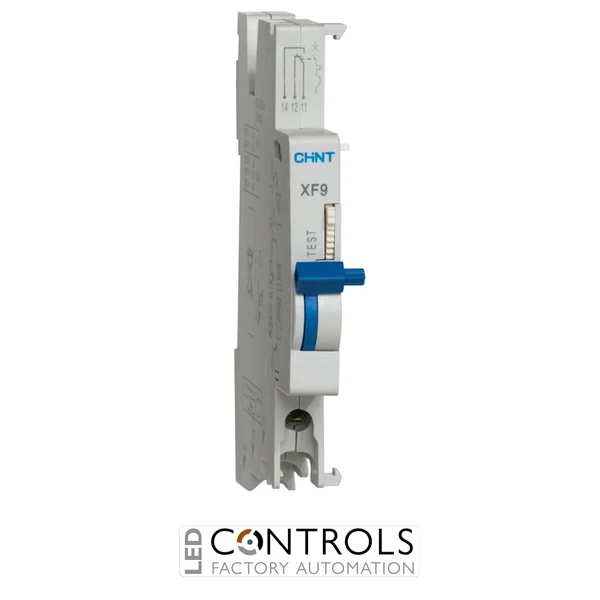

Chint XF9 auxiliary contact accessory with 1 normally open and 1 normally closed contact for status indication of compatible Chint MCBs and RCBOs.
£17.37
The Chint XF9 is a compact and reliable auxiliary contact accessory designed to provide remote status indication for compatible Chint miniature circuit breakers and RCBOs. It is used to signal the ON, OFF or tripped position of a connected protective device, helping improve monitoring and control within low voltage electrical distribution systems.
Designed for use with compatible Chint NB1, NBH8, NB1L and NBH8LE devices, the XF9 mounts to the left side of the circuit breaker or RCBO using a dedicated connection pin. Its 1 normally open and 1 normally closed contact configuration allows it to integrate easily into signalling, indication and control circuits.
With a rated insulation voltage of 500 V and contact ratings suitable for AC and DC control circuits, the XF9 is ideal for distribution boards, control panels, switchboards and automation systems where clear electrical status feedback is required.
Auxiliary contacts such as the Chint XF9 are used to transmit the operating status of a connected circuit protection device to external control, indication or monitoring equipment. This allows electrical panels to provide visual alarms, remote status feedback or system interlocking based on the position of the protective device.
The XF9 is particularly useful in control panels and distribution boards where operators need to know whether a circuit breaker or RCBO is switched ON, switched OFF or has tripped. Its compact design and compatible mounting arrangement make it a practical accessory for professional low voltage installations.
| Manufacturer | Chint |
|---|---|
| Series | XF9 |
| Model | XF9 |
| Product type | Auxiliary contact accessory |
| Function | ON/OFF or tripped status indication |
| Compatible devices | NB1, NBH8, NB1L, NBH8LE series MCBs and RCBOs |
| Contact configuration | 1 N/O + 1 N/C |
| Rated insulation voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated operating current | 3 A at 415 V AC |
| DC contact rating | 6 A at 24 V DC, 2 A at 48 V DC, 1 A at 130 V DC |
| Utilisation category | AC-12 / DC-12 |
| Electrical life | 4,000 operations |
| Mechanical life | 10,000 operations |
| Protection degree | IP20 |
| Pollution degree | Class 2 |
| Terminal capacity | 2.5 mm² |
| Tightening torque | 0.8 N·m |
| Mounting position | Left side of compatible MCB or RCBO |
| Standard | IEC/EN 60947-5-1 |
| Operating temperature | -5°C to +40°C |
| Storage temperature | -25°C to +70°C |
| Dimensions (H × W × D) | approx. 82 × 45 × 49.5 mm |
The Chint XF9 is used to provide auxiliary status indication for compatible Chint MCBs and RCBOs, allowing the ON, OFF or tripped position to be signalled to external circuits.
The XF9 is designed for use with compatible Chint NB1, NBH8, NB1L and NBH8LE series miniature circuit breakers and RCBOs.
The Chint XF9 has a 1 N/O + 1 N/C contact configuration, providing one normally open and one normally closed auxiliary contact.
The XF9 is mounted on the left side of a compatible Chint MCB or RCBO using the dedicated connection pin.
The XF9 complies with IEC/EN 60947-5-1 for low voltage control circuit devices.
Chint XF9 auxiliary contacts are used by electricians, panel builders and maintenance engineers to provide dependable circuit status feedback, remote indication and professional integration within low voltage distribution systems.
