Why Choose the ABB OFAA1GG100 100 A gG DIN Fuse?

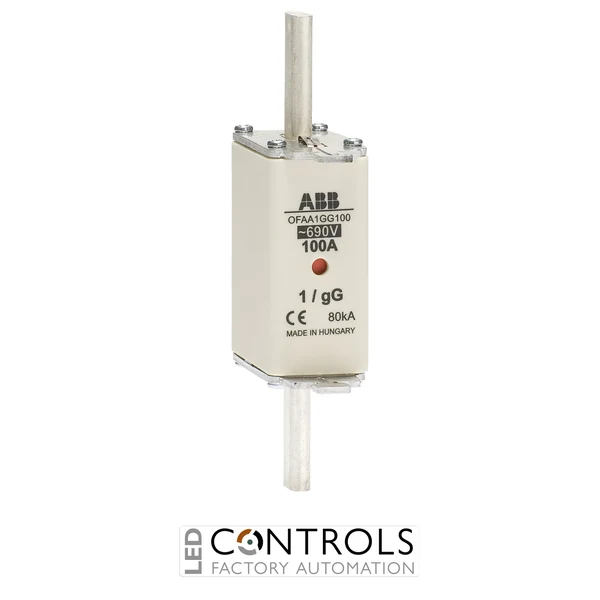

The ABB OFAA1GG100, ABB order code 1SCA022700R9950, is a DIN-type HRC fuse link designed for general-purpose protection of cables, conductors and electrical equipment. Rated at 100 A, this fuse uses the NH1 / DIN size 1 format and the gG full-range fuse characteristic.
With a rated voltage of 690 V AC / 400 V DC, the OFAA1GG100 is suitable for demanding industrial distribution and power-control systems. Its gG utilisation category provides full-range protection against both overload and short-circuit currents when correctly selected and coordinated with the protected circuit.
The OFAA1GG100 incorporates dual indication to assist with fuse-status identification. Manufactured for industrial DIN-type fuse systems, it has a rated power loss of approximately 9.4 W, a net weight of approximately 0.28 kg and is supplied in a delivery batch of 3 pieces.
Key Advantages
- 100 A rated current for industrial circuit protection.
- 690 V AC / 400 V DC rated voltage.
- gG full-range characteristic for overload and short-circuit protection.
- Standard NH1 / DIN size 1 construction.
- Dual indication assists with fuse-status identification.
- DIN-type HRC fuse-link construction.
- Suitable for cable, conductor and general equipment protection.
- Part of ABB's established OFAA industrial fuse range.
Key Features
- ABB OFAA1GG100 HRC fuse link.
- 100 A rated current.
- 690 V AC rated voltage.
- 400 V DC rated voltage.
- gG general-purpose fuse characteristic.
- NH1 / DIN size 1.
- Full-range overload and short-circuit protection.
- Dual fuse indication.
- 9.4 W rated power loss.
- Approximate net weight of 0.28 kg.
Full-Range Protection for Industrial Circuits
The gG characteristic makes the ABB OFAA1GG100 suitable for general-purpose electrical protection across the full fault-current range. When correctly selected for the installation, it protects cables, conductors and associated equipment against sustained overload currents as well as potentially damaging short-circuit currents.
Its standard NH1 / DIN size 1 construction enables integration with appropriately rated fuse bases and fuse-switch disconnectors, while dual indication assists maintenance personnel when checking fuse status. These characteristics make the OFAA1GG100 a practical protection component for industrial switchboards, machinery and power-distribution systems.
Typical Applications
- Industrial power distribution systems.
- Electrical switchboards and control panels.
- Cable and conductor protection.
- Industrial machinery and production equipment.
- Feeder and branch-circuit protection.
- Compatible fuse-switch disconnectors and fuse bases.
- 690 V AC systems requiring NH1 gG fuse protection.
