Why Choose the ABB E9F10GG12 Cylindrical Fuse?

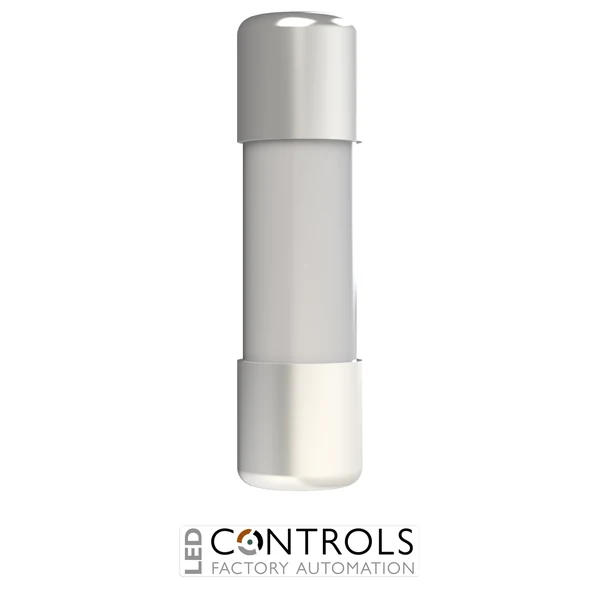

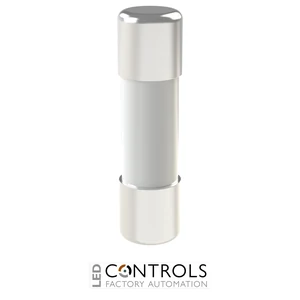

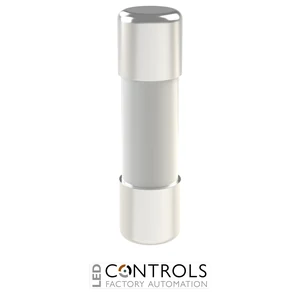

The ABB E9F10GG12 is a compact and reliable 12 A gG cylindrical fuse link designed to protect electrical circuits against overload and short-circuit currents. Identified by ABB as the E 9F10 GG12 with order code 2CSM256273R1801, it forms part of the ABB E 9F range of cylindrical fuses for industrial and commercial electrical installations.
The fuse uses the standard 10.3 × 38 mm cylindrical format and has a gG full-range utilisation category, making it suitable for general-purpose protection of cables, conductors, transformers, electronic equipment and distribution circuits. Its operating characteristics provide protection against both overload and short-circuit conditions.
With a rated current of 12 A, a rated voltage of 500 V AC and a high breaking capacity of 120 kA, the E9F10GG12 provides dependable protection for demanding electrical installations. It is designed for use with compatible 10.3 × 38 mm fuseholders and fuse switch disconnectors, including products from the ABB E 90 range.
Key Advantages
- Reliable gG full-range fuse protection against overload and short-circuit currents.
- 12 A rated current for appropriately rated electrical circuits.
- 500 V AC rated voltage suitable for industrial and commercial installations.
- High 120 kA breaking capacity for effective fault-current interruption.
- Standard 10.3 × 38 mm cylindrical format for compatible fuseholders.
- Suitable for general-purpose protection of cables, transformers and electrical equipment.
Key Features
- ABB E 9F10 cylindrical fuse range.
- 12 A rated current.
- 500 V AC rated voltage.
- 120 kA breaking capacity.
- gG full-range utilisation category.
- 10.3 × 38 mm cylindrical fuse format.
- Protection against both overload and short-circuit currents.
- Suitable for compatible ABB E 90 fuseholders and fuse disconnectors.
Reliable Full-Range Circuit Protection
gG fuse links provide full-range protection, allowing them to interrupt both overload currents and high short-circuit fault currents. This makes them suitable for general-purpose circuit protection where cables, conductors and connected electrical equipment require dependable protection across a broad range of fault conditions.
The ABB E 9F gG range is designed for applications including industrial automation panels and electrical distribution systems. The E9F10GG12 combines a compact 10.3 × 38 mm format with a 120 kA breaking capacity, providing effective protection while occupying minimal space within compatible fuseholders.
Typical Applications
- Industrial electrical control panels.
- Electrical distribution circuits.
- Automation and machinery systems.
- Cable and conductor protection.
- Transformer protection.
- Electronic equipment protection.
- Commercial and industrial switchboards.
