Why Choose the ABB E9F10GG6 Cylindrical Fuse?

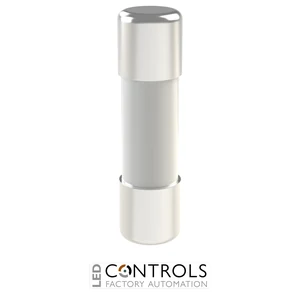

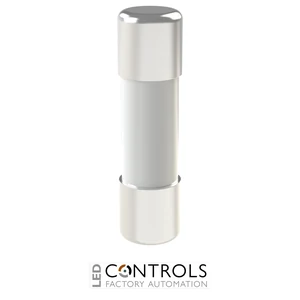

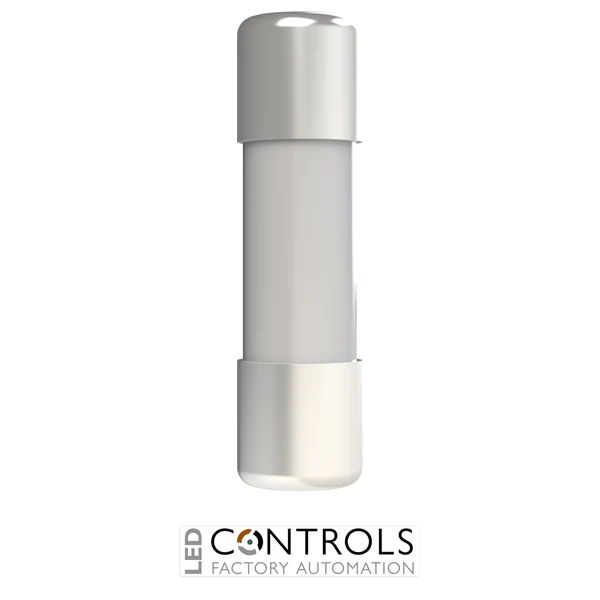

The ABB E9F10GG6 is a compact and reliable 6 A gG cylindrical fuse link designed to protect electrical circuits against overload and short-circuit currents. Identified by ABB as the E 9F10 GG6 with order code 2CSM256363R1801, it forms part of the ABB E 9F range of cylindrical fuses for industrial and installation applications.
The fuse uses the standard 10.3 × 38 mm cylindrical format and features a gG full-range utilisation category. This makes it suitable for general protection of cables and lines, with the E 9F gG series also offering fast operating characteristics suitable for protecting electronic devices, transformers and electrical cables.
With a rated current of 6 A, rated voltage of 500 V AC and maximum breaking capacity of 120 kA, the E9F10GG6 provides dependable fault protection for demanding electrical installations. Its ceramic construction and silver-plated copper contacts provide a robust fuse link for compatible 10.3 × 38 mm fuseholders and fuse disconnectors.
Key Advantages
- Reliable gG full-range fuse protection against overload and short-circuit currents.
- 6 A rated current for appropriately rated electrical circuits.
- 500 V AC rated voltage for industrial and installation applications.
- High 120 kA maximum breaking capacity for effective fault-current interruption.
- Standard 10.3 × 38 mm cylindrical format for compatible fuseholders.
- Suitable for general protection of cables, lines, transformers and electrical equipment.
Key Features
- ABB E 9F10 cylindrical fuse range.
- 6 A rated current.
- 500 V AC rated voltage.
- 120 kA maximum breaking capacity.
- gG full-range fuse type.
- 10.3 × 38 mm cylindrical fuse format.
- 0.85 W power loss at rated operating conditions per pole.
- Ceramic construction with silver-plated copper contacts.
Reliable Full-Range Circuit Protection
gG fuse links provide full-range protection against both overload and short-circuit currents, making them suitable for general protection of cables and lines in installation and industrial applications. Their protective characteristics allow electrical conductors and connected equipment to be safely isolated when excessive current conditions occur.
The ABB E 9F gG range is designed for use with compatible E 90 and E 90 50/125 fuse disconnectors and features a fast tripping curve suitable for protecting electronic devices, transformers and electric cables. The E9F10GG6 combines these characteristics with a compact 10.3 × 38 mm format and a high 120 kA breaking capacity.
Typical Applications
- Industrial electrical control panels.
- Electrical distribution circuits.
- Cable and line protection.
- Transformer protection.
- Electronic equipment protection.
- Industrial automation switchboards.
- Machinery and OEM electrical systems.
