Why Choose the ABB E9F10AM12 Cylindrical Fuse?

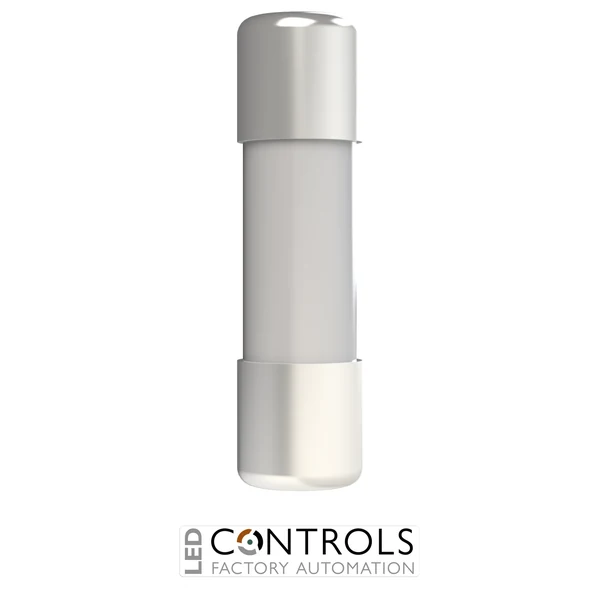

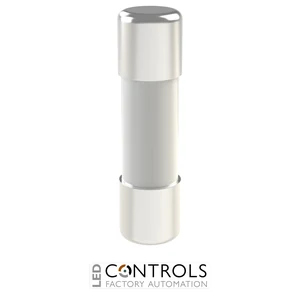

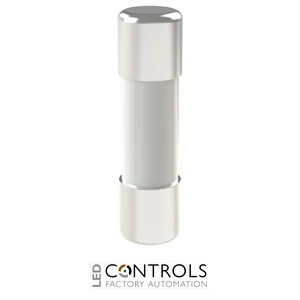

The ABB E9F10AM12 is a compact and reliable 12 A aM cylindrical fuse link designed primarily for the protection of industrial motor circuits with high starting currents. Identified by ABB as the E 9F10 AM12 with order code 2CSM256373R1801, it forms part of the ABB E 9F range of cylindrical fuses for compatible fuseholders and fuse switches.
The fuse uses the standard 10.3 × 38 mm cylindrical format and has an aM utilisation category with delayed tripping characteristics. This makes it particularly suitable for motor applications where temporary high inrush currents occur during starting while dependable protection against high fault currents is required.
With a rated current of 12 A, rated voltage of 500 V AC and breaking capacity of 120 kA, the E9F10AM12 provides robust protection for demanding industrial installations. Its compact format allows straightforward integration into compatible 10.3 × 38 mm fuseholders used in control panels, machinery and motor-control systems.
Key Advantages
- Reliable aM cylindrical fuse designed for motor applications.
- 12 A rated current for appropriately rated motor circuits.
- 500 V AC rated voltage suitable for industrial electrical systems.
- High 120 kA breaking capacity for effective fault-current interruption.
- Standard 10.3 × 38 mm cylindrical format for compatible fuseholders.
- Delayed tripping characteristics accommodate the high inrush currents associated with motor starting.
Key Features
- ABB E 9F10 cylindrical fuse range.
- 12 A rated current.
- 500 V AC rated voltage.
- 120 kA breaking capacity.
- aM utilisation category.
- 10.3 × 38 mm cylindrical fuse format.
- 0.82 W power loss at rated current.
- Delayed operating characteristic suited to industrial motors with high starting currents.
Reliable Protection for Industrial Motor Circuits
aM cylindrical fuses feature delayed operating characteristics designed for motor circuits where substantial inrush currents occur during starting. This characteristic allows normal motor-starting currents to pass without unnecessary fuse operation while providing effective interruption of high fault currents.
The ABB E 9F aM range is available in standard cylindrical fuse sizes for industrial motor applications. The E9F10AM12 combines a compact 10.3 × 38 mm format with a 120 kA breaking capacity, making it suitable for dependable protection within machinery, automation panels and motor-control installations.
Typical Applications
- Industrial motor circuits.
- Motor starters and control panels.
- Motor control centres.
- Pumps, fans and conveyor systems.
- Industrial machinery and automation equipment.
- Production and processing equipment.
- OEM motor-control systems.
