Why Choose the ABB E91125S Fuse Holder?

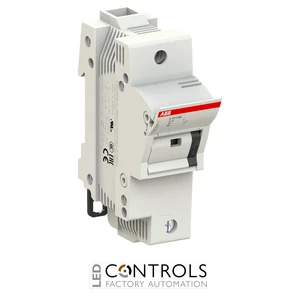

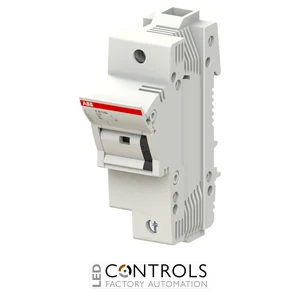

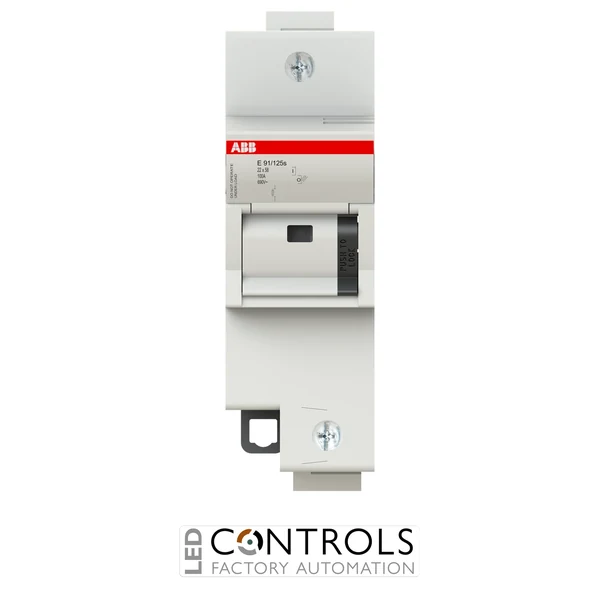

The ABB E91125S, also designated E 91/125s, is a robust single-pole cylindrical fuse holder / fuse disconnector designed for industrial circuit protection and isolation. As part of the ABB E 90/125 range, it accommodates 22 × 58 mm cylindrical fuse links and includes an integrated blown-fuse indicator for convenient status checking.
The E91125S combines fuse accommodation, circuit isolation and fuse-status indication in a compact DIN-rail device. Its single-pole configuration occupies two DIN modules, while the open position can be padlocked to support safer maintenance procedures in industrial electrical installations.
Rated for fuse applications up to 125 A, the E91125S provides a practical solution for higher-current industrial circuits where dependable cylindrical fuse protection, straightforward replacement and visible blown-fuse indication are required.
Key Advantages
- Robust single-pole fuse holder / fuse disconnector for industrial applications.
- Designed for circuits using fuse links rated up to 125 A.
- Accepts standard 22 × 58 mm cylindrical fuse links.
- Integrated blown-fuse indicator simplifies fuse-status checking.
- Two-module DIN-rail format for straightforward panel integration.
- Padlockable open position supports safer maintenance and circuit isolation.
Key Features
- ABB E 90/125 fuse disconnector range.
- Single-pole configuration.
- Suitable for fuse links up to 125 A.
- Compatible with 22 × 58 mm cylindrical fuses.
- Blown-fuse indicator for visual fuse-status monitoring.
- AC-20B utilisation category.
- Two-module width for modular DIN-rail installations.
- IP20 protection rating.
- Screw-terminal connection.
- Padlockable for safer isolation during servicing.
Reliable Fuse Protection with Status Indication
Cylindrical fuse disconnectors provide a practical way to integrate replaceable fuse links into industrial low-voltage circuits while also providing a means of circuit isolation. When fitted with a correctly selected 22 × 58 mm fuse link, the ABB E91125S supports overload and short-circuit protection according to the characteristics of the installed fuse.
The s version incorporates a blown-fuse indicator, allowing maintenance personnel to identify fuse operation more easily. Combined with its DIN-rail construction and padlockable open position, this makes the E91125S particularly suitable for industrial switchboards and machinery where convenient servicing and safe isolation are important.
Typical Applications
- Industrial electrical switchboards.
- Control and automation panels.
- Industrial machinery and production equipment.
- Power distribution and feeder circuits.
- Higher-current auxiliary and control circuits.
- Low-voltage circuit protection and isolation systems.
