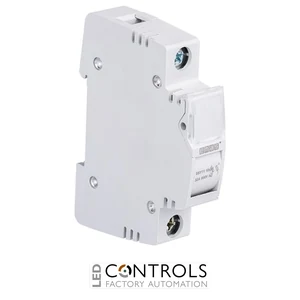

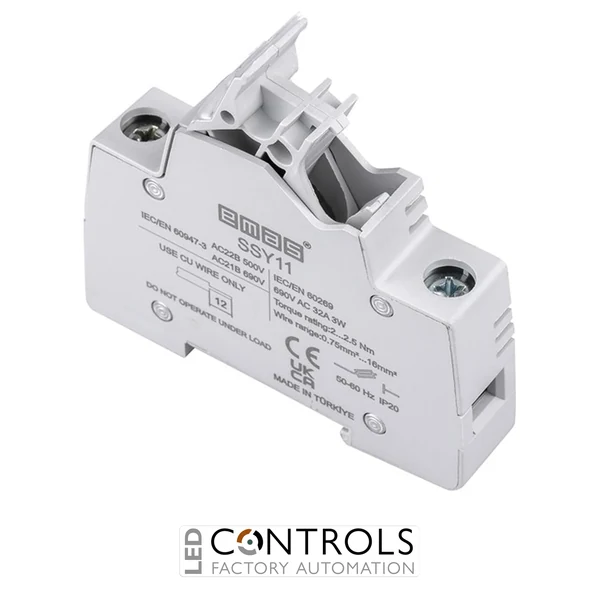

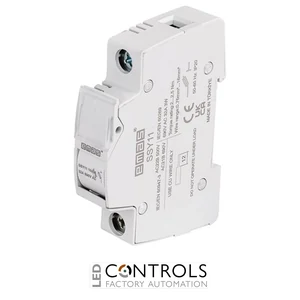

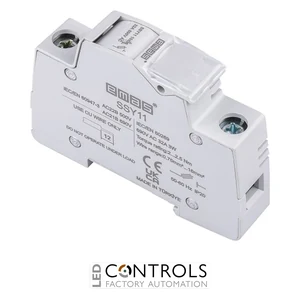

Why Choose the EMAS SSY11 10 × 38 mm Cylindrical Fuse Holder?
The EMAS SSY11 is a compact and dependable single-pole cylindrical fuse holder designed for use with standard 10 × 38 mm fuse links. Part of the EMAS SSY series, it provides a secure and accessible method of installing fuse protection within industrial control panels, machinery and low-voltage distribution systems.
Rated for an operational current of up to 32 A at 690 V, the SSY11 is suitable for protecting motors, transformers, control circuits, variable-speed drives and electrical distribution equipment when fitted with an appropriately rated fuse link. Its AC-21B utilisation category supports switching under resistive load conditions, including moderate overloads.
The fuse holder is manufactured using durable PA 6.6 insulating material and mounts directly onto a standard 35 mm DIN rail. A dedicated labelling area simplifies circuit identification, while its finger-safe construction, IP20 protection rating and wide conductor capacity support neat and reliable control-panel installation.
Key Advantages
- Designed for standard 10 × 38 mm cylindrical fuse links.
- Single-pole configuration for individual circuit protection.
- Rated for currents up to 32 A at 690 V.
- High prospective short-circuit capability of up to 100 kA when correctly coordinated.
- Quick installation on a standard 35 mm DIN rail.
- Dedicated labelling area supports clear circuit identification.
Key Features
- EMAS SSY series cylindrical fuse holder.
- One-pole construction.
- Accepts 10 × 38 mm fuse cartridges.
- 32 A operational current at 690 V.
- AC-21B utilisation category.
- Durable PA 6.6 insulating body.
- 6 kV rated impulse withstand voltage.
- IP20 protection rating.
Reliable Cylindrical Fuse Protection for Electrical Circuits
Cylindrical fuse holders provide a secure mounting and connection point for replaceable fuse links. When excessive current or a short circuit occurs, the installed fuse element interrupts the electrical supply, helping protect cables, motors and connected equipment against thermal and mechanical damage.
The EMAS SSY11 allows the fuse link to be inspected and replaced without removing the complete holder from the DIN rail. Its secure lever-operated design and durable insulating body make it suitable for frequent maintenance and dependable service within industrial electrical panels.
Typical Applications
- Industrial electrical control panels.
- Motor and transformer protection circuits.
- Low-voltage distribution boards.
- Variable-speed drive and inverter circuits.
- Automation and machinery control systems.
- Metering and auxiliary control circuits.
