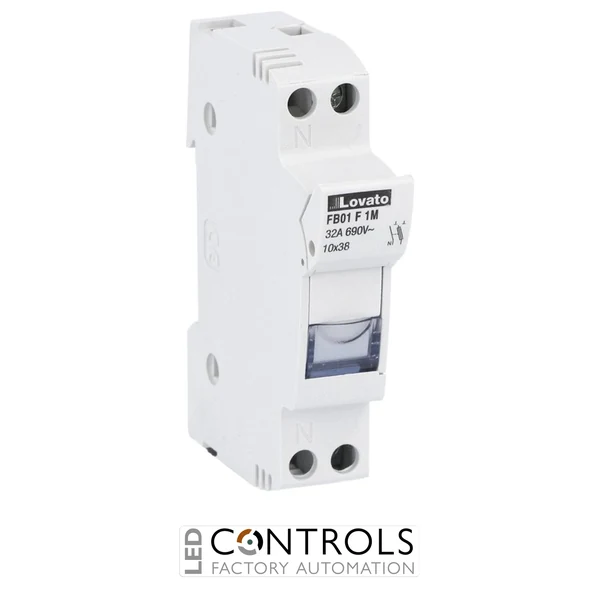

FB01F1M - FUSE HOLDER 1P+N 10X38 1 MODULE

FB01F1M – FUSE HOLDER 1P+N 10X38 1 MODULE

Lovato FB01F1M DIN rail mounted fuse holder for 10 × 38 mm cylindrical fuses, 32 A, 690 V AC, 1P+N configuration without status indicator.

SKU: FB01F1MMPN: FB01F1M
Price
List Price £11.26 ex VAT
Your Price (ex VAT)
£11.26
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £11.26
Trade pricing is personalised to your account

Manufacturer Lead Time

£11.26

Why Choose the Lovato FB01F1M Fuse Holder?

The Lovato FB01F1M is a compact DIN rail mounted fuse holder designed for 10 × 38 mm cylindrical fuses. It provides safe and reliable fuse protection for industrial control panels, distribution boards and electrical equipment requiring dependable overload and short-circuit protection.

Rated at 32 A with a maximum operating voltage of 690 V AC, the FB01F1M features a 1P+N configuration while occupying only 1 DIN module. This makes it a practical choice for compact panel layouts where phase and neutral fuse isolation is required without taking up unnecessary space.

Designed for standard 35 mm DIN rail mounting, this Lovato FB series fuse holder offers straightforward installation and dependable operation in industrial electrical systems. Supplied without a status indicator, it is suited to applications where a robust, simple and space-saving fuse holder is required.

Key Advantages

  • Genuine Lovato Electric fuse holder.
  • Designed for 10 × 38 mm cylindrical fuses.
  • 32 A rated current for industrial circuit protection.
  • 690 V AC rated voltage for low-voltage installations.
  • 1P+N configuration in a compact format.
  • Space-saving 1-module DIN rail design.

Key Features

  • Lovato FB01F1M fuse holder.
  • Suitable for 10 × 38 mm fuse links.
  • 1P+N pole configuration.
  • 32 A IEC maximum rated current.
  • 690 V AC IEC maximum rated voltage.
  • Without built-in status indicator.
  • DIN rail mounting on standard 35 mm rail.
  • Occupies only 1 DIN module.

Reliable Fuse Protection for Industrial Installations

Fuse holders provide secure installation and electrical connection for cylindrical fuse links, allowing circuits to be protected against overloads and short circuits. DIN rail mounted fuse holders simplify panel assembly, maintenance and replacement while helping maintain electrical safety.

The Lovato FB01F1M combines compact dimensions with reliable 32 A, 690 V AC performance, making it suitable for control panels, distribution boards, machinery circuits and industrial automation applications where a 1P+N fuse holder is required.

Typical Applications

  • Industrial control panels.
  • Electrical distribution boards.
  • Machine building and OEM equipment.
  • Motor control and auxiliary circuits.
  • Industrial automation systems.
  • Low-voltage circuit protection applications.

Technical Specifications

Phase Single Phase
Manufacturer Lovato Electric
Series FB
Model FB01F1M
Product type Fuse holder
Fuse size 10 × 38 mm
Number of poles 1P+N
Operating voltage type AC
IEC maximum rated voltage Un 690 V AC
IEC maximum rated current In 32 A
Light indicator No
DIN modules 1
Mounting type 35 mm DIN rail
Protection rating IP20 front
Operating temperature -20°C to +70°C
Maximum conductor size 16 mm²
Weight approx. 62 g
Quantity per package 1
EAN 8013975188163
Conformity IEC/EN 60947-1, IEC/EN 60947-3, IEC/EN 60269-1, IEC/EN 60269-2, UL 4248-1, CSA C22.2 No. 4248.1
HS Code 85389099
Poles 1-pole + N
Device Type Fuse base / holder
Fuse Type Cylindrical
Fuse Size 10x38 mm
Current 32 A
Voltage 690 V

Frequently Asked Questions

What fuse size does the Lovato FB01F1M accept?

The FB01F1M is designed for 10 × 38 mm cylindrical fuses.

What is the current rating of the FB01F1M?

The fuse holder has a maximum rated current of 32 A.

What voltage is the FB01F1M rated for?

The Lovato FB01F1M is rated for applications up to 690 V AC.

Does this fuse holder include a status indicator?

No. The FB01F1M is supplied without a light status indicator.

How is the FB01F1M mounted?

It is designed for installation on a standard 35 mm DIN rail and occupies 1 DIN module.

Trusted by Panel Builders Worldwide

Lovato Electric fuse holders are widely specified by panel builders, OEMs and electrical engineers for dependable circuit protection, safe maintenance and reliable long-term industrial performance.
