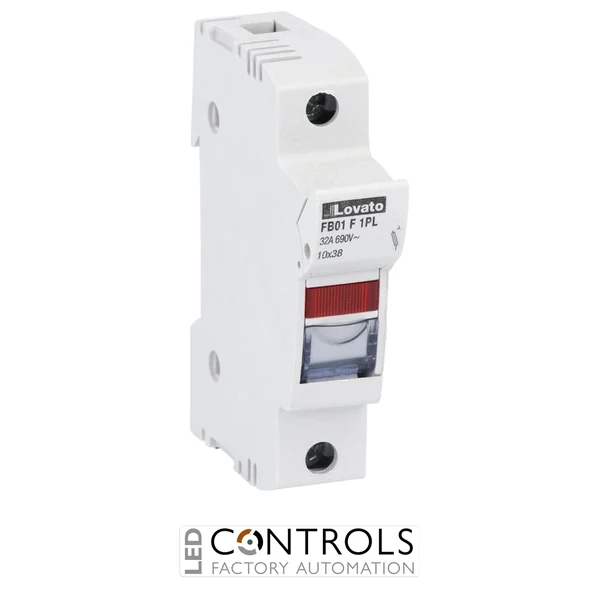

FB01F1PL – FUSE HOLDER 1P 10X38 C/W IND.

Q: What fuse size does the Lovato FB01F1PL accept?

The FB01F1PL is designed for 10 × 38 mm cylindrical fuses.

Q: What is the current rating of the FB01F1PL?

The fuse holder has a maximum rated current of 32 A.

Q: What voltage is the FB01F1PL rated for?

The Lovato FB01F1PL is rated for applications up to 690 V AC.

Q: Does this fuse holder include a status indicator?

Yes. The FB01F1PL includes a built-in light status indicator to help identify blown fuses quickly.

Q: How is the FB01F1PL mounted?

It is designed for installation on a standard 35 mm DIN rail and occupies 1 DIN module.

Lovato FB01F1PL DIN rail mounted fuse holder for 10 × 38 mm cylindrical fuses, 32 A, 690 V AC, single-pole configuration with status indicator.

SKU: FB01F1PLMPN: FB01F1PL

List Price £15.91 ex VAT

Your Price (ex VAT)

£15.91

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £15.91

Trade pricing is personalised to your account

Manufacturer Lead Time

£15.91

Why Choose the Lovato FB01F1PL Fuse Holder?

The Lovato FB01F1PL is a compact DIN rail mounted fuse holder designed for 10 × 38 mm cylindrical fuses. It provides safe and reliable fuse protection for industrial control panels, switchgear and electrical distribution systems requiring dependable overload and short-circuit protection.

Rated at 32 A with a maximum operating voltage of 690 V AC, the FB01F1PL features a single-pole (1P) configuration and occupies just 1 DIN module. Its integrated status indicator helps identify blown fuses quickly, reducing fault-finding time and supporting efficient maintenance.

Designed for standard 35 mm DIN rail mounting, this Lovato FB series fuse holder offers quick installation, secure screw terminals and reliable long-term performance. With cUL recognition and CSA certification, it is suitable for panel builders and OEMs working to recognised international standards.

Key Advantages

Genuine Lovato Electric fuse holder.
Designed for 10 × 38 mm cylindrical fuses.
32 A rated current at 690 V AC.
Single-pole (1P) configuration for compact circuit protection.
Integrated light status indicator for quick fuse fault identification.
Compact 1-module DIN rail design.

Key Features

Lovato FB01F1PL fuse holder.
Suitable for 10 × 38 mm fuse links.
Single-pole (1P) configuration.
32 A IEC maximum rated current.
690 V AC IEC maximum rated voltage.
With built-in light status indicator.
DIN rail mounting on standard 35 mm rail.
Occupies only 1 DIN module.

Reliable Fuse Protection for Industrial Installations

Fuse holders provide secure installation and electrical connection for cylindrical fuse links, protecting electrical circuits against overloads and short circuits. DIN rail mounted fuse holders simplify installation, maintenance and fuse replacement while helping maintain operator safety.

The Lovato FB01F1PL combines compact dimensions, reliable 32 A performance and a built-in status indicator, making it suitable for industrial control panels, switchboards, OEM equipment and low-voltage distribution systems.

Typical Applications

Industrial control panels.
Electrical distribution boards.
Machine building and OEM equipment.
Motor control circuits.
Industrial automation systems.
Low-voltage circuit protection.

Technical Specifications

Phase	Single Phase
Manufacturer	Lovato Electric
Series	FB
Model	FB01F1PL
Product type	Fuse holder
Fuse size	10 × 38 mm
Number of poles	1P
Operating voltage type	AC
IEC maximum rated voltage	690 V AC
IEC maximum rated current	32 A
IEC utilisation category	AC22B 500 V / AC21B 690 V
Status indicator	Yes
DIN modules	1
Mounting type	35 mm DIN rail
Protection rating	IP20 front
Maximum conductor size	16 mm²
Operating temperature	-20°C to +70°C
Storage temperature	-40°C to +80°C
Weight	approx. 65 g
Quantity per package	12
Package dimensions	227 × 85 × 65 mm
Volume	104.515 cm³
EAN	8013975208786
Certifications	cURus, CSA, EAC
Conformity	IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-1, IEC/EN 60947-3, UL 4248-1, CSA C22.2 No. 4248.1
HS Code	85389099
Poles	1-pole
Device Type	Fuse base / holder
Fuse Type	Cylindrical
Fuse Size	10x38 mm
Current	32 A
Voltage	690 V

Frequently Asked Questions

What fuse size does the Lovato FB01F1PL accept?

The FB01F1PL is designed for 10 × 38 mm cylindrical fuses.

What is the current rating of the FB01F1PL?

The fuse holder has a maximum rated current of 32 A.

What voltage is the FB01F1PL rated for?

The Lovato FB01F1PL is rated for applications up to 690 V AC.

Does this fuse holder include a status indicator?

Yes. The FB01F1PL includes a built-in light status indicator to help identify blown fuses quickly.

How is the FB01F1PL mounted?

It is designed for installation on a standard 35 mm DIN rail and occupies 1 DIN module.

Trusted by Panel Builders Worldwide

Lovato Electric fuse holders are trusted by panel builders, OEMs and electrical engineers for dependable circuit protection, recognised compliance and reliable long-term industrial performance.

Phase	Single Phase
Manufacturer	Lovato Electric
Series	FB
Model	FB01F1PL
Product type	Fuse holder
Fuse size	10 × 38 mm
Number of poles	1P
Operating voltage type	AC
IEC maximum rated voltage	690 V AC
IEC maximum rated current	32 A
IEC utilisation category	AC22B 500 V / AC21B 690 V
Status indicator	Yes
DIN modules	1
Mounting type	35 mm DIN rail
Protection rating	IP20 front
Maximum conductor size	16 mm²
Operating temperature	-20°C to +70°C
Storage temperature	-40°C to +80°C
Weight	approx. 65 g
Quantity per package	12
Package dimensions	227 × 85 × 65 mm
Volume	104.515 cm³
EAN	8013975208786
Certifications	cURus, CSA, EAC
Conformity	IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-1, IEC/EN 60947-3, UL 4248-1, CSA C22.2 No. 4248.1
HS Code	85389099
Poles	1-pole
Device Type	Fuse base / holder
Fuse Type	Cylindrical
Fuse Size	10x38 mm
Current	32 A
Voltage	690 V
