Why Choose the Mersen BTCP69V100 Industrial Fuse Link?

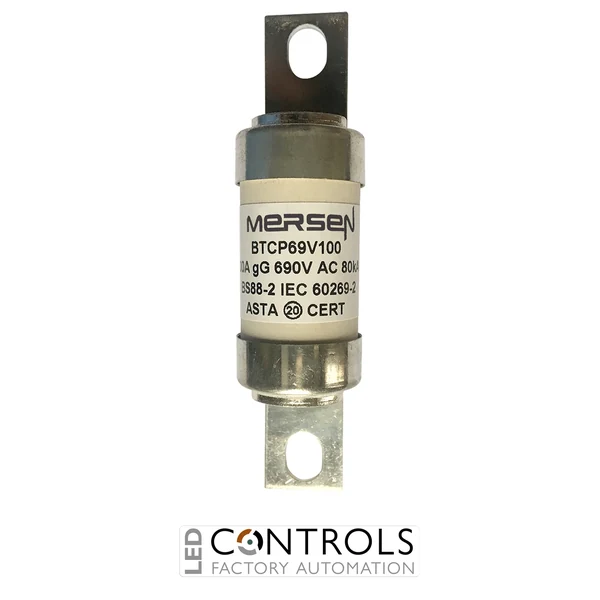

The Mersen BTCP69V100 is a robust industrial low-voltage fuse link designed to provide reliable overcurrent and short-circuit protection in electrical distribution, machinery and control applications. Manufactured by Mersen, it helps protect compatible cables, conductors, switchgear and connected equipment against potentially damaging fault currents.
The fuse uses a current-limiting element to interrupt excessive current rapidly, reducing the thermal and mechanical energy passed through to downstream components during a fault. This dependable operating characteristic makes the BTCP69V100 suitable for industrial installations where equipment protection, electrical safety and continuity of operation are important.
With a rated current of 100 A and a voltage rating of 690 V AC, the BTCP69V100 is suitable for compatible high-voltage industrial distribution circuits and machinery systems. Its bolted-tag format provides a secure electrical connection within correctly rated fuse holders, switch-fuse units and control-panel assemblies.
Key Advantages
- Dependable overcurrent and short-circuit protection for industrial circuits.
- 100 A rated current for compatible machinery and distribution applications.
- 690 V AC voltage rating suitable for demanding industrial power systems.
- Current-limiting operation helps reduce damaging fault energy.
- Bolted-tag construction provides a secure electrical connection.
- Replaceable design supports straightforward maintenance and circuit restoration.
Key Features
- Mersen industrial bolted-tag fuse link.
- 100 A nominal current rating.
- 690 V AC rated operating voltage.
- Designed for overcurrent and short-circuit protection.
- Current-limiting fuse element for rapid fault interruption.
- Suitable for compatible fuse carriers and switch-fuse assemblies.
- Industrial-grade construction for dependable performance.
- Non-resettable design requiring replacement after operation.
Reliable Protection for Industrial Electrical Systems
Industrial fuse links disconnect electrical circuits when current rises beyond safe operating limits. During a short circuit or severe overcurrent condition, the internal fuse element operates rapidly to limit fault energy and reduce the risk of damage to conductors, switchgear and connected equipment.
The Mersen BTCP69V100 should be installed in a correctly rated and mechanically compatible fuse holder. Selection must account for the operating voltage, continuous load current, prospective short-circuit current, conductor capacity, equipment characteristics and coordination with other protective devices.
Typical Applications
- Industrial electrical distribution panels.
- Machinery and production equipment.
- Switch-fuse and fuse-switch assemblies.
- Motor feeder and power circuits.
- Automation and control panels.
- Cable, conductor and switchgear protection.
