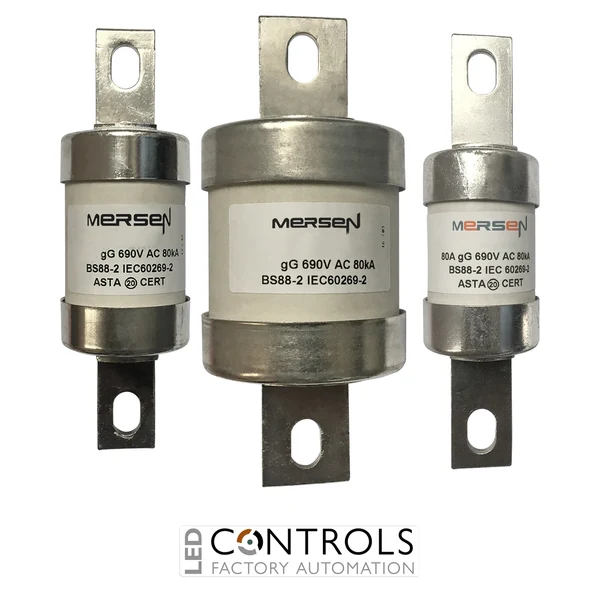

MERSEN FUSE 100A69B1 BTC69V100

MERSEN FUSE 100A69B1 BTC69V100

The BTC69V100 fuse-link is engineered for reliable circuit protection in demanding industrial applications, complying fully with IEC and BS88 standards. It supports both 690VAC and 460VDC operational voltages at a rated current of 100A with a central bolted tag mounting.

SKU: BTC69V100Alt SKU: BTC69V100MPN: A1006618
Price
List Price £48.17 ex VAT
Your Price (ex VAT)
£48.17
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £48.17
Trade pricing is personalised to your account

Manufacturer Lead Time

Sold in packs of 10

£48.17

Why Choose the Mersen BTC69V100 BS88 Central Bolted Tag Fuse?

The Mersen BTC69V100 is a high-quality British Standard BS88 gG central bolted tag fuse-link designed to provide reliable overcurrent and short-circuit protection for industrial low-voltage power distribution systems. Part of the trusted Mersen Central Bolted Tag fuse-link range, it delivers dependable protection for cables, switchgear, motors and distribution equipment in demanding commercial and industrial environments.

Manufactured in accordance with EN 60269-2 and BS 88 Part 2, the BTC69V100 offers excellent current-limiting performance while maintaining high breaking capacity. Its central bolted tag construction provides secure electrical connections and straightforward installation into compatible fuse carriers, switch disconnectors and busbar assemblies.

With a 100 A current rating, 690 V AC and 460 V DC voltage ratings, the Mersen BTC69V100 is ideal for protecting industrial power circuits where dependable fault interruption and long service life are essential.

Key Advantages

  • High-performance BS88 gG central bolted tag fuse-link.
  • 100 A current rating for industrial power distribution.
  • 690 V AC and 460 V DC voltage ratings.
  • Excellent current-limiting performance for overload and short-circuit protection.
  • Central bolted tag design ensures secure installation.
  • Suitable for switchgear, fuse switch disconnectors and busbar applications.

Key Features

  • Mersen Central Bolted Tag fuse-link series.
  • BS88 Type B1 fuse-link.
  • 100 A rated current.
  • 690 V AC rated voltage.
  • 460 V DC rated voltage.
  • General purpose gG operating characteristic.
  • Central bolted tag terminals.
  • Manufactured to EN 60269-2 and BS88 Part 2.

Reliable Protection for Industrial Power Distribution

General purpose gG fuse-links such as the Mersen BTC69V100 provide comprehensive protection against overloads and short circuits across a wide range of industrial electrical installations. Their excellent current-limiting characteristics help reduce thermal and mechanical stress on downstream equipment while improving system safety.

The BTC series is widely used within electrical distribution systems, motor control equipment and industrial switchgear where compliance with British Standard fuse requirements and dependable fault interruption are essential.

Typical Applications

  • Industrial power distribution systems.
  • Switchgear and switch disconnectors.
  • Motor protection circuits.
  • Cable protection.
  • Busbar distribution assemblies.
  • Commercial and industrial electrical installations.

Technical Specifications

Item number A1006618
Catalogue No BTC69V100
Description British Standard fuse-link IEC BS88 gG Type B1 690VAC 460VDC 100A BTC Central Bolted Tag
EAN/UPC Code 3605340536812
Rated voltage AC IEC 690 V
Rated voltage DC IEC 460 V
Ampere Rating 100 A
RoHS Compliant Yes
AC or DC AC/DC
Speed/Characteristic gG
Fuse Size B1
Mounting Bolted
Clearing I2t At Rated Voltage 80000 A²s
Melting I2t 14000 A²s
AC Max I.R./Breaking Capacity I1: 80 kA
Max. Rated Breaking Capacity DC 40 kA
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Central Bolted Tag
Product Diameter 26.9 mm
Product Length 137 mm
Sell Pack Quantity 10 EA
Sell Pack Weight 1.25 kg
Sell Pack Width 144 mm
Sell Pack Length 145 mm
Sell Pack Height 60 mm
Product group Low Voltage IEC Fuses
Body/Insulating Material Ceramic
Product Weight 0.125 kg
Power Dissipation at Rated Current Value 7.5 W
HS Code 85361090
Country of Manufacture India
Fuse Class gG
Voltage 690 V

Frequently Asked Questions

What is the Mersen BTC69V100 used for?

The BTC69V100 protects industrial electrical circuits against overloads and short circuits in switchgear, power distribution and motor control applications.

What is the current rating of this fuse?

The fuse has a 100 A current rating.

What voltage is the BTC69V100 rated for?

The fuse is rated for 690 V AC and 460 V DC operation.

What fuse characteristic does it have?

The BTC69V100 has a general purpose gG characteristic, providing protection against both overloads and short circuits.

Which standards does the fuse comply with?

The fuse is manufactured in accordance with EN 60269-2 and BS88 Part 2 for industrial low-voltage fuse-links.

Trusted for Industrial Electrical Protection

Mersen BS88 fuse-links are trusted by electrical engineers, panel builders and industrial maintenance professionals worldwide for dependable circuit protection, high breaking capacity and reliable long-term performance.
