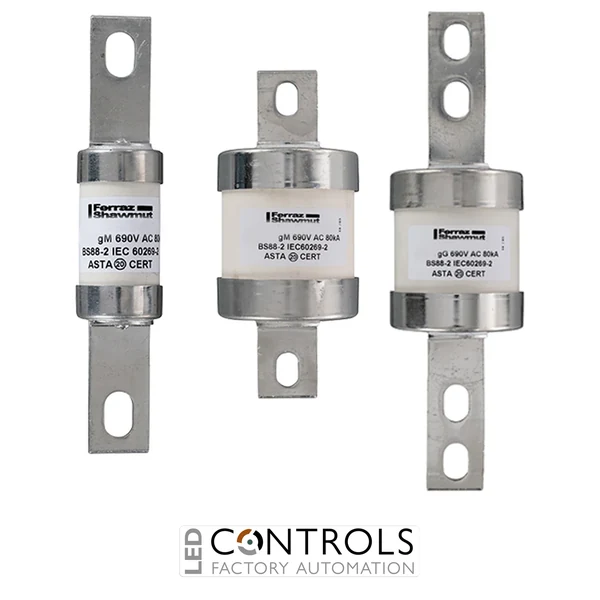

Why Choose the Mersen BTF69V125M160 Industrial Fuse-Link?
The Mersen BTF69V125M160 is a robust industrial fuse-link designed to provide dependable overcurrent and short-circuit protection in low-voltage electrical distribution and motor circuits. Manufactured by Mersen, it is suitable for demanding commercial and industrial installations where reliable fault interruption and effective current limitation are essential.
This fuse-link helps protect cables, switchgear, motor circuits and connected electrical equipment against potentially damaging fault currents. Its bolted-tag construction provides a secure mechanical and electrical connection, making it suitable for installation in compatible fuse holders, switch disconnectors and industrial distribution assemblies.
With a rated voltage of 690 V AC and a motor circuit rating designated as 125M160, the BTF69V125M160 is designed for applications that experience elevated motor starting currents. Its operating characteristics allow normal starting conditions while providing reliable protection against overloads and short circuits.
Key Advantages
- Heavy-duty industrial fuse-link for motor and power circuit protection.
- 125M160 motor circuit rating for demanding electrical loads.
- 690 V AC rated voltage suitable for industrial power systems.
- Current-limiting performance helps reduce fault energy.
- Bolted-tag construction provides a secure electrical connection.
- Helps protect cables, motors, switchgear and distribution equipment.
Key Features
- Mersen BTF industrial fuse-link series.
- 125M160 motor circuit classification.
- 690 V AC rated voltage.
- Designed for overload and short-circuit protection.
- Suitable for circuits with high motor starting currents.
- High current-limiting performance during electrical faults.
- Robust bolted-tag mounting arrangement.
- Suitable for industrial switchgear and motor control equipment.
Reliable Protection for Industrial Motor Circuits
Motor circuit fuse-links such as the Mersen BTF69V125M160 are engineered to withstand the temporary inrush currents produced when industrial motors start. At the same time, they interrupt excessive current during qualifying overload or short-circuit conditions before serious damage can occur.
The BTF69V125M160 is suitable for motor control centres, machinery panels and industrial distribution systems requiring dependable protection at voltages up to 690 V AC. Its current-limiting operation helps reduce thermal and mechanical stress on switchgear, conductors and connected equipment.
Typical Applications
- Industrial motor control centres.
- Motor starters and switch disconnectors.
- Pumps, fans and compressor systems.
- Manufacturing and processing machinery.
- Industrial power distribution panels.
- OEM machinery and automation equipment.
