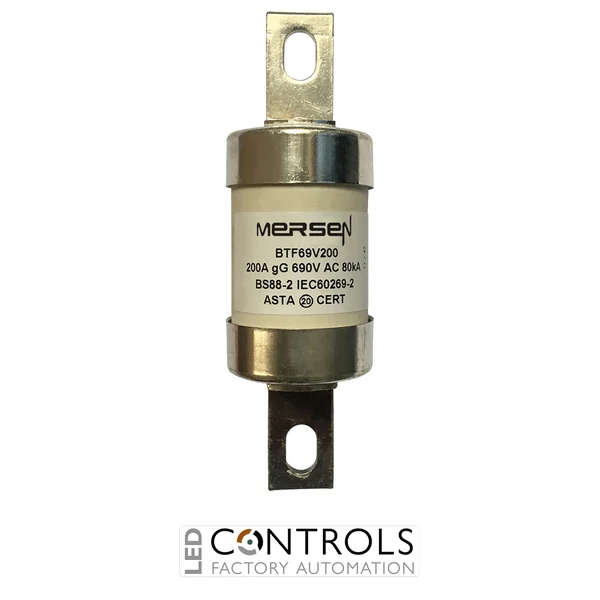

MERSEN FUSE 200A69B2 F1006623

MERSEN FUSE 200A69B2 F1006623

The BS88 gG Type B2 BTF69V200 fuse-link provides robust protection for industrial electrical systems with 200A rating and high breaking capacities for AC and DC circuits.

SKU: BTF69V200Alt SKU: BTF69V200MPN: F1006623
Price
List Price £49.88 ex VAT
Your Price (ex VAT)
£49.88
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £49.88
Trade pricing is personalised to your account

Manufacturer Lead Time

Sold in packs of 5

£49.88

Why Choose the Mersen BTF69V200 BS88 Fuse Link?

The Mersen BTF69V200 is a high-performance BS88 gG Type B2 central bolted-tag fuse link designed to provide dependable overload and short-circuit protection for low-voltage power distribution systems. Manufactured by Mersen, it complies with EN 60269-2 Section II and BS 88 Part 2, delivering excellent current-limiting performance across a broad range of industrial and commercial applications.

Rated at 200 A, 690 V AC and 460 V DC, the BTF69V200 is a Type B2 central bolted-tag fuse link intended for general-purpose (gG) protection. It provides reliable protection for cables, switchgear, busbars and electrical equipment while limiting thermal and mechanical stress during fault conditions.

Its central bolted-tag design allows secure installation directly onto busbars, compatible fuse holders or fuse-switch disconnectors, making it an ideal solution for OEM panel builders, industrial maintenance engineers and electrical contractors requiring dependable low-voltage circuit protection.

Key Advantages

  • BS88 gG Type B2 central bolted-tag fuse link.
  • 200 A rated current.
  • 690 V AC / 460 V DC voltage ratings.
  • Excellent current limitation for overload and short-circuit protection.
  • Suitable for direct busbar or fuse-holder mounting.
  • Manufactured to EN 60269-2 Section II and BS88 Part 2 standards.

Key Features

  • Mersen BTF central bolted-tag fuse series.
  • 200 A ampere rating.
  • 690 V AC / 460 V DC rated voltage.
  • gG utilisation category for full-range circuit protection.
  • BS Type B2 construction.
  • Current-limiting protection against overloads and short circuits.
  • Suitable for industrial power distribution systems.
  • RoHS compliant.

Reliable Protection for Industrial Power Distribution

The Mersen BTF69V200 provides full-range protection against overload and short-circuit faults. Its gG operating characteristic enables dependable protection of cables, switchgear and electrical equipment while significantly limiting fault energy, helping to minimise equipment damage and reduce downtime following electrical faults.

Designed for installation within industrial distribution equipment, the BTF69V200 offers reliable operation in demanding environments and is suitable for use in OEM machinery, electrical switchboards, motor control centres and commercial power distribution systems.

Typical Applications

  • Industrial power distribution systems.
  • Main and sub-distribution switchboards.
  • Fuse-switch disconnectors.
  • OEM electrical panels.
  • Busbar protection.
  • Commercial and industrial electrical installations.

Technical Specifications

Item number F1006623
Catalogue No BTF69V200
Description British Standard fuse-link IEC BS88 gG Type B2 690VAC 460VDC 200A BTF Central Bolted Tag
EAN/UPC Code 3605340485080
Rated voltage AC IEC 690 V
Rated voltage DC IEC 460 V
Ampere Rating 200 A
RoHS Compliant Yes
AC or DC AC/DC
Speed/Characteristic gG
Fuse Size B2
Mounting Bolted
Clearing I2t At Rated Voltage 350000 A²s
Melting I2t 105000 A²s
AC Max I.R./Breaking Capacity I1: 80 kA
Max. Rated Breaking Capacity DC 40 kA
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Central Bolted Tag
Product Diameter 41.9 mm
Product Length 138 mm
Sell Pack Quantity 5 EA
Sell Pack Weight 1.5625 kg
Sell Pack Width 145 mm
Sell Pack Length 245 mm
Sell Pack Height 85 mm
Product group Low Voltage IEC Fuses
Body/Insulating Material Ceramic
Product Weight 0.3125 kg
Power Dissipation at Rated Current Value 16.2 W
HS Code 85361090
Country of Manufacture India
Fuse Class gG
Voltage 690 V

Frequently Asked Questions

What is the Mersen BTF69V200 used for?

The BTF69V200 is designed to protect industrial power distribution circuits, cables, switchgear and electrical equipment against overload and short-circuit faults.

What are the voltage ratings of the BTF69V200?

The fuse link is rated at 690 V AC and 460 V DC.

What does the gG utilisation category mean?

The gG classification provides full-range protection against both overload and short-circuit currents in general-purpose electrical circuits.

What is the BS Type of the BTF69V200?

The BTF69V200 is a BS88 Type B2 central bolted-tag fuse link.

Can the BTF69V200 be reused after operation?

No. Like all industrial fuse links, the BTF69V200 is a single-use protective device and must be replaced after clearing a fault.

Trusted by Electrical Professionals

Mersen BS88 fuse links are trusted worldwide by electrical engineers, OEM manufacturers, panel builders and maintenance professionals for dependable fault interruption, excellent current limitation and long-term reliability in demanding industrial power distribution systems.
