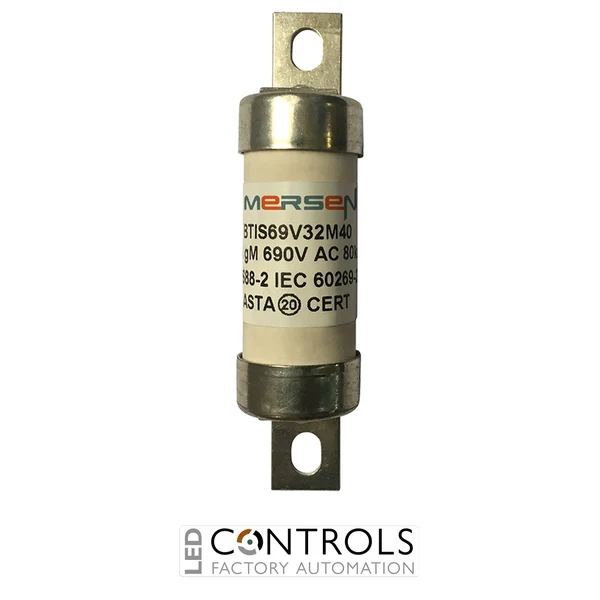

Why Choose the Mersen BTIS69V32M40 British Standard Fuse-Link?
The Mersen BTIS69V32M40 is a high-performance British Standard gM fuse-link designed to protect industrial motors and motor control circuits against damaging overcurrents. Its motor-rated operating characteristic accommodates normal starting currents while providing dependable interruption when a serious electrical fault occurs.
Part of the established Mersen BTIS offset tag fuse-link range, the BTIS69V32M40 combines effective current limitation with robust construction for reliable service in demanding industrial environments. By restricting peak fault current and let-through energy, it helps reduce thermal and mechanical stress on motors, cables, contactors and switchgear.
With a 32 A continuous current rating, a 40 A motor circuit rating and an operating voltage of up to 690 V AC, the BTIS69V32M40 is suited to industrial motor applications requiring secure British Standard fuse mounting and dependable high-voltage circuit protection.
Key Advantages
- British Standard gM fuse-link for motor circuit protection.
- 32 A continuous current rating.
- 40 A motor circuit rating.
- 690 V AC rated voltage for demanding industrial systems.
- Accommodates temporary motor starting currents without unnecessary operation.
- Current-limiting performance helps minimise equipment damage during faults.
Key Features
- Mersen BTIS offset tag fuse-link series.
- 32M40 motor circuit designation.
- 690 V AC rated operating voltage.
- gM utilisation category for motor applications.
- Full-range overcurrent protection characteristics.
- Effective limitation of peak fault current and let-through energy.
- Robust British Standard offset tag construction.
- Suitable for industrial motor starters and control assemblies.
Reliable Protection for Industrial Motor Circuits
The Mersen BTIS69V32M40 is engineered to tolerate the temporary inrush currents produced during motor starting while responding effectively to damaging overcurrent conditions. Its current-limiting action reduces the peak magnitude and duration of fault current, helping protect conductors, contactors, switchgear and connected machinery.
The fuse-link is suitable for use in coordinated motor protection systems and should be selected in accordance with the motor starting characteristics, installation conditions and the requirements of the associated switching and overload protection equipment.
Typical Applications
- Industrial motor control centres.
- Direct-on-line and star-delta motor starters.
- Pumps, compressors and ventilation equipment.
- Conveyors and materials-handling systems.
- Manufacturing and process machinery.
- Industrial switchgear and control panels.
