Why Choose the Mersen FR10AM50V4 Cylindrical Fuse?

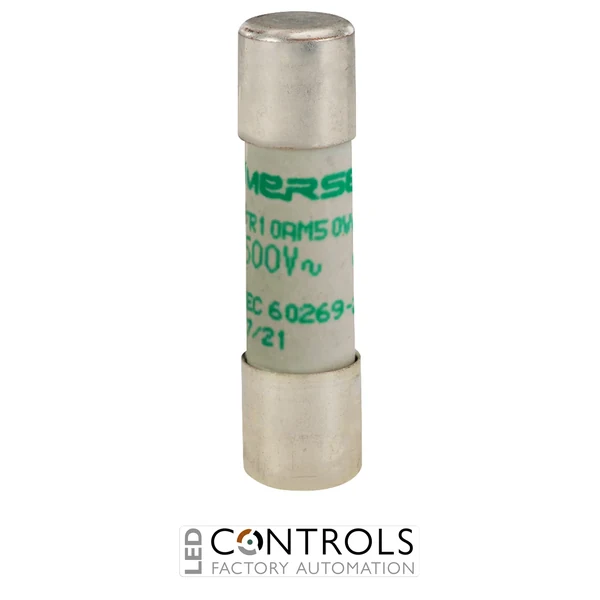

The Mersen FR10AM50V4 is a high-performance 10×38 mm aM cylindrical fuse-link designed to provide dependable short-circuit protection for motor circuits and industrial electrical equipment. Manufactured by Mersen, this fuse forms part of the trusted FR10 aM series, offering exceptional current limiting performance and reliable protection for motor starters, switchgear and industrial control panels.
Designed in accordance with IEC standards, the FR10AM50V4 features a robust ceramic body with silver-plated contacts for excellent electrical conductivity and long service life. As an aM partial-range fuse, it is specifically engineered to protect motors against high fault currents whilst allowing normal motor starting currents to pass without nuisance operation.
With a 4 A current rating, 500 V AC rated voltage and 120 kA breaking capacity, this industrial fuse delivers reliable protection for demanding applications where motor circuits require high fault interruption capability.
Key Advantages
- Designed specifically for motor circuit short-circuit protection.
- 4 A current rating for industrial motor applications.
- 500 V AC IEC rated voltage.
- aM characteristic allows motor starting currents whilst protecting against faults.
- 120 kA breaking capacity for excellent fault interruption.
- High-quality ceramic construction with silver-plated end caps.
Key Features
- Mersen FR10 aM series.
- 10 × 38 mm cylindrical fuse-link.
- 4 A rated current.
- 500 V AC rated voltage.
- aM partial-range motor protection characteristic.
- Ceramic body for excellent thermal performance.
- Silver-plated contacts for reliable conductivity.
- Suitable for industrial motor protection and switchgear applications.
Reliable Protection for Industrial Motor Circuits
The Mersen FR10AM50V4 is designed to protect motors, contactors and associated switchgear from destructive short-circuit currents. Its aM operating characteristic permits the high inrush current required during motor starting whilst rapidly clearing dangerous fault currents before equipment damage occurs.
Its compact 10 × 38 mm format makes it suitable for installation in industrial control panels, machinery and OEM equipment where dependable motor protection and compliance with international standards are essential.
Typical Applications
- Motor starter protection.
- Industrial control panels.
- Motor control centres (MCCs).
- Machine building and OEM equipment.
- Industrial switchgear.
- Automation systems and production machinery.
