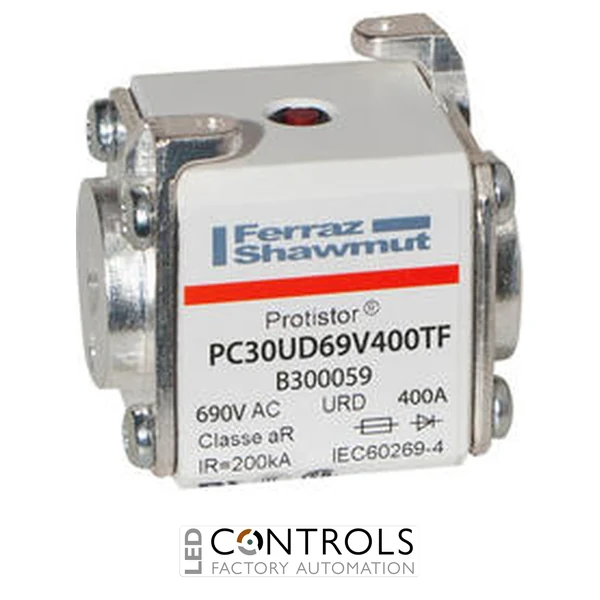

MERSEN FUSE 6,9 URD 30 TT F 0400 PC30UD69V400TF

Q: How can the correct Mersen component be identified?

Check the complete B300059 reference and all other markings on the original component against the equipment manual or official manufacturer documentation.

High-speed Protistor® fuse delivering rapid circuit interruption at 400A with robust performance across 690VAC (IEC) and 700VAC (UL) systems. Features aR characteristic, striker indication system, flush ends, and metric threads for reliable industrial power protection.

SKU: B300059Alt SKU: PC30UD69V400TFMPN: B300059

List Price £126.90 ex VAT

Your Price (ex VAT)

£126.90

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £126.90

Trade pricing is personalised to your account

Manufacturer Lead Time

£126.90

Why Choose the Mersen B300059 Industrial Electrical Component?

The Mersen B300059 is an industrial electrical replacement component intended for use in compatible power distribution, control and automation equipment. Identified by the manufacturer reference B300059, it allows engineers, panel builders and maintenance teams to source a matching component for existing Mersen-equipped systems.

Selecting a component with the correct manufacturer reference helps maintain the electrical and mechanical compatibility of the original installation. This is particularly important in industrial environments, where an unsuitable replacement can cause installation problems, unreliable operation or unnecessary equipment downtime.

Before ordering or installing the Mersen B300059, its current and voltage ratings, operating characteristics, physical dimensions, terminal arrangement and mounting configuration should be checked against the original product label and the equipment documentation.

Key Advantages

Genuine Mersen industrial electrical component.
Clearly identified by the B300059 manufacturer reference.
Suitable for maintenance, repair and replacement requirements.
Helps preserve compatibility with existing industrial equipment.
Suitable for correctly specified electrical control and power systems.
Manufactured by an established electrical protection specialist.

Key Features

Mersen manufacturer reference B300059.
Industrial-grade electrical component.
Suitable for professional maintenance and replacement applications.
Supports accurate component identification by part number.
Suitable for compatible machinery, control panels and power equipment.
Designed for dependable service in industrial installations.
Electrical ratings should be verified before installation.
Mechanical compatibility should be checked against the original component.

Accurate Replacement for Industrial Electrical Equipment

Industrial electrical systems depend on correctly specified components to maintain safe, dependable operation. Matching the Mersen B300059 reference to the original part helps reduce the risk of unsuitable substitutions and supports a more efficient maintenance process.

The complete product markings should always be checked before installation. In addition to the B300059 reference, users should verify the electrical ratings, dimensions, terminals and mounting arrangement to ensure that the component is suitable for the intended equipment.

Typical Applications

Industrial machinery maintenance and repair.
Electrical control panels and switchgear.
Automation and process control equipment.
Power distribution and conversion systems.
Original equipment replacement programmes.
Industrial maintenance, repair and overhaul operations.

Technical Specifications

Item number	B300059
Catalogue No	PC30UD69V400TF
Description	Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 400A With Striker Flush ends metric threads
EAN/UPC Code	3605340322835
Rated voltage AC UL	700 V
Rated voltage AC IEC	690 V
Ampere Rating	400 A
RoHS Compliant	Yes
AC or DC	AC
Speed/Characteristic	aR
Fuse Size	30
Mounting	Bolted
Clearing I2t At Rated Voltage	130 kA²s
Melting I2t	23 kA²s
AC Max I.R./Breaking Capacity	I1: 200 kA
Indication System	Yes
Indication System Type	Striker
Connection/Terminal Material	Silver-Plated Brass
Connection/Terminal Type	Flush ends
Product Width	40 mm
Product Length	50.6 mm
Product Height	48 mm
Sell Pack Quantity	3 EA
Sell Pack Weight	0.7389 kg
Sell Pack Width	85 mm
Sell Pack Length	135 mm
Sell Pack Height	55 mm
Product group	Semiconductor Protection Fuses
Body/Insulating Material	Ceramic
Product Weight	0.2463 kg
Power Dissipation at Rated Current Value	60 W
HS Code	85361090
Country of Manufacture	France
Fuse Type	Semiconductor
Fuse Class	aR
Voltage	690 V

Frequently Asked Questions

What is the Mersen B300059?

The Mersen B300059 is an industrial electrical component identified by its manufacturer part number for use in compatible maintenance, repair and replacement applications.

Can the B300059 be used as a direct replacement?

It may be used as a replacement when its complete part number, electrical ratings, dimensions, terminals and mounting arrangement match the original component.

Which specifications should be checked before installation?

The rated current, rated voltage, operating characteristic, dimensions, terminal arrangement and mounting configuration should all be verified before installation.

Where might the Mersen B300059 be installed?

It may be installed in compatible industrial machinery, control panels, automation equipment and power systems, subject to the original equipment specification.

How can the correct Mersen component be identified?

Check the complete B300059 reference and all other markings on the original component against the equipment manual or official manufacturer documentation.

Trusted Industrial Electrical Components

Mersen components are used by engineers, panel builders and maintenance professionals to support dependable operation across industrial electrical and power management systems.

Item number	B300059
Catalogue No	PC30UD69V400TF
Description	Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 400A With Striker Flush ends metric threads
EAN/UPC Code	3605340322835
Rated voltage AC UL	700 V
Rated voltage AC IEC	690 V
Ampere Rating	400 A
RoHS Compliant	Yes
AC or DC	AC
Speed/Characteristic	aR
Fuse Size	30
Mounting	Bolted
Clearing I2t At Rated Voltage	130 kA²s
Melting I2t	23 kA²s
AC Max I.R./Breaking Capacity	I1: 200 kA
Indication System	Yes
Indication System Type	Striker
Connection/Terminal Material	Silver-Plated Brass
Connection/Terminal Type	Flush ends
Product Width	40 mm
Product Length	50.6 mm
Product Height	48 mm
Sell Pack Quantity	3 EA
Sell Pack Weight	0.7389 kg
Sell Pack Width	85 mm
Sell Pack Length	135 mm
Sell Pack Height	55 mm
Product group	Semiconductor Protection Fuses
Body/Insulating Material	Ceramic
Product Weight	0.2463 kg
Power Dissipation at Rated Current Value	60 W
HS Code	85361090
Country of Manufacture	France
Fuse Type	Semiconductor
Fuse Class	aR
Voltage	690 V
