Why Choose the Mersen BTTM69V630 Central Bolted Tag Fuse-Link?

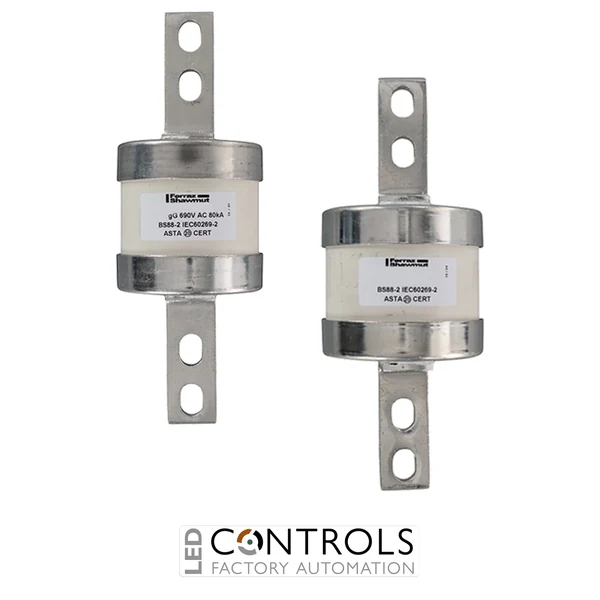

The Mersen BTTM69V630 is a heavy-duty 630 A industrial fuse-link designed to provide reliable overload and short-circuit protection in high-current, low-voltage electrical distribution systems. Its 690 V AC rating makes it suitable for demanding industrial networks, switchgear assemblies and power distribution equipment operating above conventional 415 V levels.
Featuring a robust central bolted tag construction, the BTTM69V630 provides secure mechanical mounting and a dependable electrical connection within compatible fuse carriers, fuse-switch disconnectors and distribution assemblies. The bolted connection is particularly suited to installations exposed to high current, vibration or demanding service conditions.
The fuse-link’s current-limiting operation helps reduce the thermal and mechanical energy released during a short circuit. By rapidly interrupting excessive fault current, it can help protect cables, busbars, transformers, switchgear and connected industrial equipment from extensive damage.
Key Advantages
- Heavy-duty 630 A fuse-link for high-current applications.
- Rated for electrical systems operating at up to 690 V AC.
- Provides dependable overload and short-circuit protection.
- High breaking capacity for demanding industrial fault levels.
- Current-limiting performance helps reduce damaging fault energy.
- Central bolted tags provide secure mechanical and electrical connections.
- Suitable for compatible BS-type industrial fusegear and switchgear.
Key Features
- Mersen industrial fuse-link.
- 630 A rated current.
- 690 V AC rated voltage.
- gG general-purpose operating characteristic.
- Central bolted tag terminal configuration.
- High-current, current-limiting construction.
- Non-resettable, replaceable protective device.
- Designed for industrial power distribution applications.
Reliable Protection for High-Current Power Distribution
High-current short circuits can expose cables, busbars and switchgear to severe thermal and electromechanical forces. The Mersen BTTM69V630 is designed to interrupt these currents rapidly, limiting the energy allowed to pass into the protected installation.
Its gG operating characteristic provides full-range protection against both sustained overloads and short-circuit currents. This makes the fuse-link suitable for protecting distribution feeders, conductors and general industrial electrical equipment, subject to correct circuit coordination and manufacturer selection requirements.
For safe replacement, the new fuse-link must match the required current rating, voltage rating, utilisation category, breaking capacity, physical dimensions and bolted-tag arrangement. The cause of any fuse operation should be identified and rectified before the circuit is re-energised.
Typical Applications
- Industrial power distribution systems.
- Main incoming and outgoing feeders.
- High-current distribution boards.
- Fuse-switch disconnectors.
- Transformer secondary protection.
- Busbar and cable protection.
- Manufacturing and processing facilities.
- Industrial switchgear assemblies.
