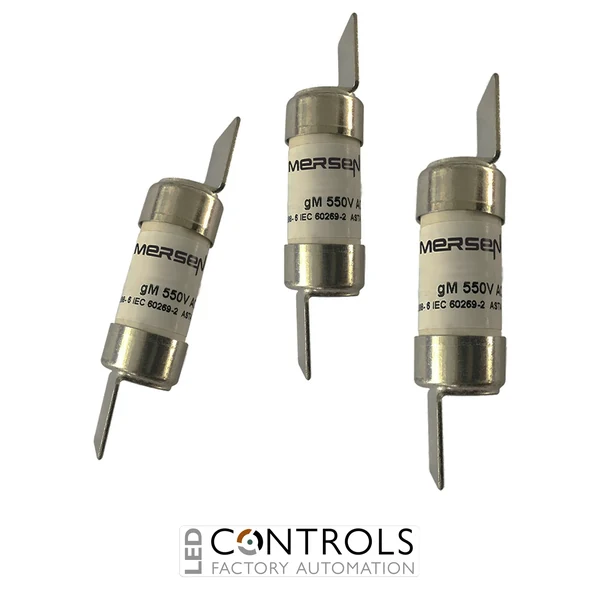

Why Choose the Mersen BNS55V10M16 Motor Protection Fuse Link?
The Mersen BNS55V10M16 is a compact British Standard motor protection fuse link designed to provide dependable short-circuit protection for industrial motors, motor starters and associated electrical equipment. Its motor-rated operating characteristic allows it to tolerate the temporary current surge produced during motor starting while responding rapidly to damaging fault currents.
Engineered for industrial electrical systems, the BNS55V10M16 offers effective current limitation to reduce the thermal and mechanical energy passed through to cables, contactors and downstream equipment during a short circuit. This helps minimise equipment damage and supports reliable coordination with motor overload relays and other protective devices.
With a rated voltage of 550 V AC and a 10M16 motor rating, this Mersen fuse link is suitable for compatible low-voltage motor circuits, machinery panels and motor control assemblies. Its bolted-tag construction provides a secure electrical connection within an appropriately rated fuse holder or switch-fuse unit.
Key Advantages
- Purpose-designed short-circuit protection for industrial motor circuits.
- 10M16 motor rating accommodates normal motor-starting currents.
- 550 V AC voltage rating for compatible industrial systems.
- Current-limiting operation helps reduce damaging fault energy.
- Supports coordination with contactors and motor overload relays.
- Bolted-tag design provides a secure and reliable connection.
Key Features
- Mersen British Standard motor protection fuse link.
- 10M16 motor-circuit rating.
- 550 V AC rated operating voltage.
- Motor-rated time-current characteristic.
- Designed to withstand temporary motor-starting current.
- Rapid interruption of high short-circuit currents.
- Current-limiting performance for improved equipment protection.
- Non-resettable design requiring replacement after operation.
Reliable Protection for Industrial Motor Circuits
Electric motors can draw several times their normal operating current during start-up. A motor-rated fuse such as the Mersen BNS55V10M16 is designed to withstand this temporary inrush without unnecessary operation while still interrupting severe short-circuit currents quickly.
The fuse is normally used alongside a correctly selected overload relay or motor protection device. The fuse provides high-level fault protection, while the overload device protects the motor against sustained overcurrent conditions. Correct selection should consider the motor rating, starting method, starting duration, cable capacity and prospective short-circuit current.
Typical Applications
- Industrial motor starter circuits.
- Motor control centres and control panels.
- Pumps, fans and ventilation systems.
- Conveyors and material-handling equipment.
- Compressors and processing machinery.
- Switch-fuse and industrial distribution assemblies.
