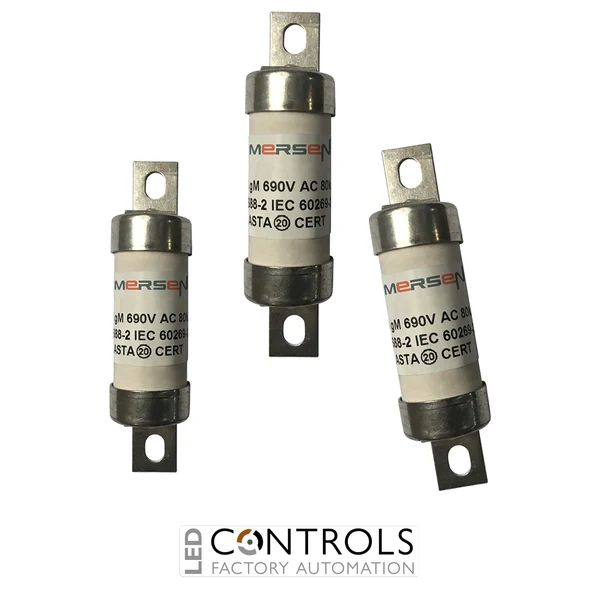

Why Choose the Mersen BTIS69V32M36 British Standard Fuse-Link?
The Mersen BTIS69V32M36 is a high-performance British Standard gM fuse-link designed to provide dependable short-circuit protection for industrial motors and motor control circuits. Its motor-rated operating characteristic accommodates temporary motor starting currents while rapidly interrupting damaging fault currents.
Part of the established Mersen BTIS offset tag fuse-link range, the BTIS69V32M36 combines effective current limitation with a high breaking capacity. This helps reduce the thermal and mechanical stress placed on motors, cables, contactors, switchgear and other connected equipment during a short circuit.
With a 32M36 A motor circuit rating and a rated operating voltage of up to 690 V AC, this fuse-link is suitable for demanding industrial motor applications. Its robust offset tag construction enables secure installation in compatible British Standard fuse holders, fused switches and motor control assemblies.
Key Advantages
- British Standard gM fuse-link for motor circuit protection.
- 32M36 A motor circuit rating.
- 690 V AC rated voltage for demanding industrial systems.
- Accommodates normal motor starting currents without nuisance operation.
- Current-limiting performance helps reduce damage during short circuits.
- Offset tag design provides secure installation in compatible fuse equipment.
Key Features
- Mersen BTIS offset tag fuse-link series.
- 32M36 A motor circuit rating.
- 690 V AC rated voltage.
- gM utilisation category for motor circuit protection.
- High fault-current interruption capability.
- Excellent current-limiting characteristics.
- Robust British Standard offset tag construction.
- Suitable for coordination with motor overload protection devices.
Reliable Protection for Industrial Motor Circuits
The Mersen BTIS69V32M36 is designed to withstand the temporary inrush currents associated with motor starting while providing rapid interruption of serious short-circuit faults. This operating characteristic helps prevent nuisance fuse operation during normal starts without compromising protection when a damaging fault occurs.
As a gM fuse-link, the BTIS69V32M36 is primarily intended to provide motor circuit short-circuit protection. It should normally be coordinated with a suitable overload relay or motor protection device to provide comprehensive protection against both overloads and short circuits.
Typical Applications
- Motor control centres.
- Direct-on-line and star-delta motor starters.
- Industrial pumps and compressors.
- Fans, conveyors and ventilation equipment.
- Manufacturing and processing machinery.
- Industrial switchgear and control panels.
