Why Choose the Mersen CMC101 Modulostar® Fuse Holder?

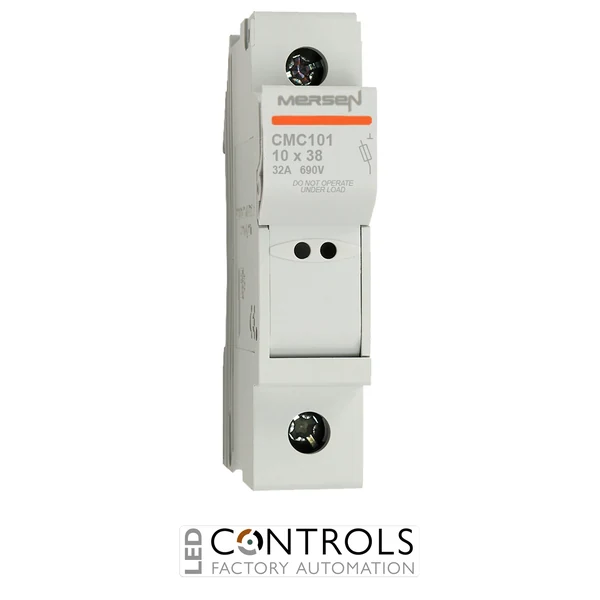

The Mersen CMC101, manufacturer item number P1062705, is a compact Modulostar® modular fuse holder designed for 10×38 mm cylindrical fuse links. Its single-pole configuration provides reliable overcurrent protection and circuit isolation for industrial control panels, machinery and low voltage distribution equipment.
As part of the Mersen Modulostar® CMC10 series, the CMC101 features a robust thermoplastic construction and finger-safe IP20 protection, including during fuse replacement. This helps improve operator safety while allowing straightforward access for inspection and routine maintenance.
Rated at 32 A and suitable for systems up to 690 V AC and 690 V DC, the CMC101 is suitable for a wide range of industrial AC and DC applications. Its compact DIN rail mounting format makes efficient use of enclosure space and allows additional poles to be field assembled using compatible pin-tie accessories.
Key Advantages
- Designed for 10×38 mm cylindrical fuse links.
- Compact single-pole configuration.
- 32 A rated current for industrial circuit protection.
- Suitable for systems up to 690 V AC and 690 V DC.
- Finger-safe IP20 protection, including during fuse replacement.
- DIN rail mounting enables fast and straightforward installation.
- Multi-pole arrangements can be field assembled using compatible accessories.
- Durable thermoplastic construction for demanding environments.
Key Features
- Mersen Modulostar® CMC10 series.
- Catalogue number CMC101.
- Manufacturer item number P1062705.
- Accepts 10×38 mm cylindrical fuse links.
- One-pole modular construction.
- 32 A ampere rating.
- 690 V AC / 690 V DC rated voltage.
- IP20 finger-safe protection.
- DIN rail mounting.
- Standard version without visual blown fuse indication.
- Compatible with field-assembly pin-tie kits.
- RoHS-compliant construction.
Compact Protection for Industrial AC and DC Circuits
The Mersen CMC101 securely houses a 10×38 mm cylindrical fuse link, allowing the correctly selected fuse to protect electrical equipment against overload and short-circuit currents. Its compact modular construction makes it particularly suitable for panels where DIN rail space is limited.
The finger-safe design provides IP20 protection during normal operation and fuse replacement. Multiple CMC10 units can also be joined using suitable pin-tie accessories, allowing panel builders to create coordinated multi-pole arrangements for more complex electrical systems.
Typical Applications
- Industrial control panels.
- Motor and transformer protection circuits.
- Low voltage distribution systems.
- Control and signalling circuits.
- Variable speed drive protection.
- OEM machinery and automation equipment.
- Industrial AC and DC electrical installations.
