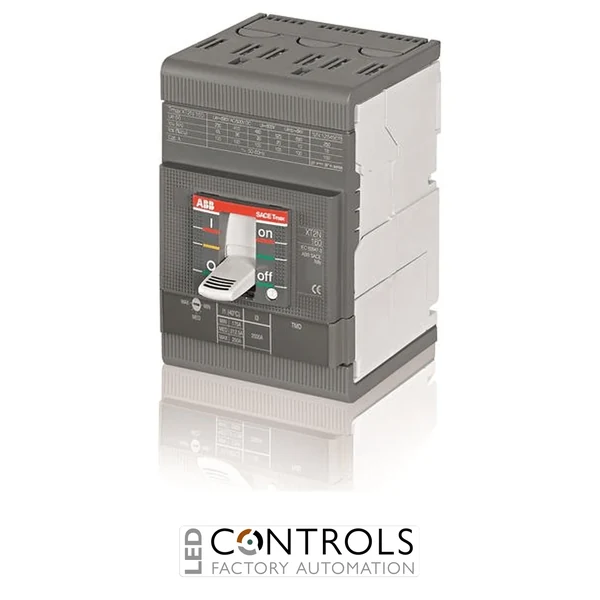

Why Choose the ABB 1SDA067584R1 XT2H 160 TMD 1.6-16A 3P MCCB?
The ABB 1SDA067584R1 is a high-performance SACE Tmax XT2H moulded case circuit breaker (MCCB) designed for dependable low voltage circuit protection in industrial, commercial and OEM electrical systems. As part of the advanced ABB Tmax XT range, this circuit breaker provides robust protection against overloads and short circuits while supporting reliable power distribution.
This model is fitted with a TMD thermomagnetic release, offering both thermal overload protection and magnetic short-circuit protection. The adjustable 1.6-16 A current range makes it suitable for protecting smaller circuits and equipment where accurate, dependable protection is required.
With an XT2H 160 frame, three-pole configuration and fixed front terminal design, the ABB 1SDA067584R1 is ideal for switchboards, control panels, machinery and power distribution applications requiring compact dimensions and high breaking performance.
Key Advantages
- High-quality ABB SACE Tmax XT2H moulded case circuit breaker.
- Adjustable 1.6-16 A TMD thermomagnetic release.
- Three-pole design for three-phase circuit protection.
- Fixed front terminal configuration for panel and switchboard installation.
- High breaking capacity suitable for demanding low voltage networks.
- Compact XT2 frame for efficient control panel layouts.
Key Features
- ABB SACE Tmax XT series.
- XT2H 160 frame size.
- 1.6-16 A adjustable rated current range.
- Three-pole MCCB.
- TMD thermomagnetic release.
- Fixed mounting design.
- Front terminals for straightforward wiring.
- Designed for IEC low voltage installations.
Reliable Circuit Protection for Low Voltage Distribution
Moulded case circuit breakers such as the ABB SACE Tmax XT2H range are used to protect electrical circuits from damage caused by overloads and short circuits. The thermomagnetic trip unit combines thermal protection for sustained overloads with magnetic protection for high fault currents.
The ABB 1SDA067584R1 is particularly suitable for installations requiring compact dimensions, adjustable current protection and strong interrupting performance. Its three-pole fixed construction makes it suitable for three-phase distribution panels, machinery circuits and industrial control systems.
Typical Applications
- Industrial switchboards and distribution panels.
- Three-phase machinery protection.
- OEM control panels and automation systems.
- Motor control centres.
- Commercial electrical installations.
- Low voltage power distribution circuits.
