ABB XT2H 160 4 pole High MCCB Fixed Thermal/Adjustable Magnetic Release In=25A Ii=300A

ABB XT2H 160 4 pole High MCCB Fixed Thermal/Adjustable Magnetic Release In=25A Ii=300A

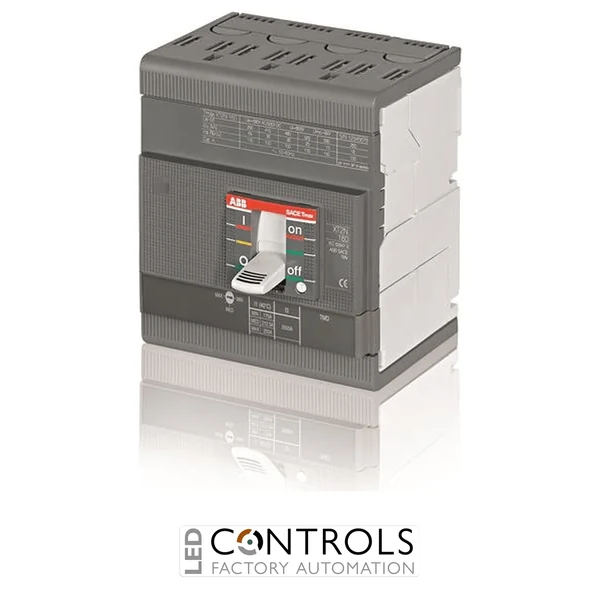

ABB SACE Tmax XT2H 160 thermal magnetic moulded case circuit breaker with 25 A rating, four poles, front terminals and high breaking capacity for industrial power distribution.

SKU: 1SDA067617R1Alt SKU: XT2H 160 TMD 25-300 4p F FMPN: 1SDA067617R1
Price
List Price £604.54 ex VAT
Your Price (ex VAT)
£604.54
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £604.54
Trade pricing is personalised to your account

Manufacturer Lead Time

£604.54

Why Choose the ABB 1SDA067617R1 SACE Tmax XT2H MCCB?

The ABB 1SDA067617R1 is a high-performance SACE Tmax XT2H moulded case circuit breaker (MCCB) designed to provide dependable protection for electrical distribution systems in industrial and commercial installations. Part of the trusted ABB SACE Tmax XT series, this four-pole circuit breaker delivers excellent overload and short-circuit protection while maintaining high operational reliability.

Featuring a 25 A thermal magnetic (TMD) trip unit, front terminals and a fixed mounting configuration, this MCCB offers simple installation and dependable circuit protection. The XT2H frame combines compact dimensions with high breaking capacity, making it suitable for demanding applications where system continuity and equipment protection are essential.

With a 690 V AC rated operating voltage, 70 kA breaking capacity at 415 V AC and compliance with IEC 60947-2, the ABB 1SDA067617R1 is ideal for power distribution panels, switchboards, industrial machinery and OEM electrical systems requiring reliable protection.

Key Advantages

  • High-performance moulded case circuit breaker for industrial power distribution.
  • 25 A thermal magnetic trip unit providing overload and short-circuit protection.
  • Four-pole fixed configuration with front terminals.
  • High breaking capacity up to 70 kA at 415 V AC.
  • Compact XT2 frame simplifies panel installation.
  • Designed for demanding industrial and commercial electrical systems.

Key Features

  • ABB SACE Tmax XT2H series.
  • Product ID: 1SDA067617R1.
  • Rated current: 25 A.
  • Rated uninterrupted current (Iu): 160 A frame.
  • Thermal magnetic TMD trip unit.
  • Four-pole (4P) configuration.
  • Front terminal connection.
  • Fixed mounting version.
  • Suitable for AC and DC distribution applications.

Reliable Protection for Power Distribution Systems

The ABB SACE Tmax XT range is engineered to protect electrical installations against overloads and short circuits while ensuring dependable operation across industrial and commercial environments. Thermal magnetic protection provides fast fault interruption while maintaining reliable long-term performance.

The compact XT2 frame enables efficient installation within switchboards, distribution panels and machine control cabinets. Its high interrupting capacity and proven ABB engineering make it suitable for demanding power distribution applications.

Typical Applications

  • Industrial power distribution systems.
  • Electrical switchboards and panel builders.
  • Motor control centres.
  • Commercial building electrical installations.
  • OEM machinery and automation systems.
  • Infrastructure and utility applications.

Technical Specifications

Mounting Type Fixed
Application Power distribution
Current 25 A
Phase Three Phase
Manufacturer ABB
Series SACE Tmax XT
Model XT2H 160 TMD 25-300 4P F F
Product ID 1SDA067617R1
Product type Moulded Case Circuit Breaker (MCCB)
Frame size XT2
Rated current (In) 25 A
Rated uninterrupted current (Iu) 160 A
Trip unit Thermal Magnetic (TMD)
Instantaneous setting (Ii) 300 A
Number of poles 4
Rated operational voltage 690 V AC / 500 V DC
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 8 kV
Frequency 50 / 60 Hz
Breaking capacity (Icu) Up to 70 kA at 415 V AC
Protection standard IEC 60947-2
Terminal type Front terminals
Mounting type Fixed panel mounting
Dimensions (H × W × D) Approx. 130 × 120 × 82.5 mm
Weight Approx. 1.45 kg
HS Code 85362090
Country of Manufacture Italy
Poles 4-pole
Device Type MCCB
Breaking Capacity 70 kA
Trip Unit Thermal-magnetic

Frequently Asked Questions

What is the ABB 1SDA067617R1 used for?

This moulded case circuit breaker protects electrical distribution systems against overloads and short circuits in industrial and commercial installations.

What is the rated current of this MCCB?

The breaker has a 25 A rated current with a 160 A frame and thermal magnetic trip unit.

How many poles does this circuit breaker have?

The ABB 1SDA067617R1 is supplied as a four-pole (4P) moulded case circuit breaker.

What type of trip unit is fitted?

This model incorporates a thermal magnetic (TMD) trip unit for dependable overload and short-circuit protection.

Where is this MCCB typically installed?

It is commonly installed within switchboards, power distribution panels, industrial machinery and commercial electrical installations.

Trusted by Electrical Professionals Worldwide

ABB SACE Tmax XT moulded case circuit breakers are trusted by panel builders, OEMs and electrical engineers worldwide for reliable protection, outstanding performance and long service life in demanding industrial environments.
