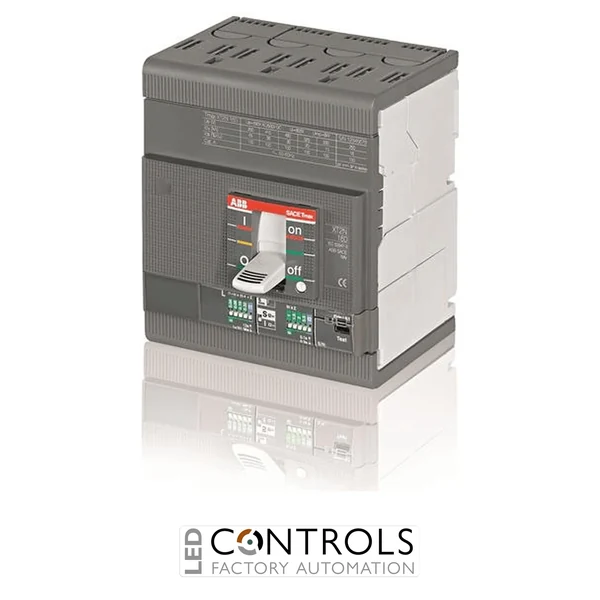

ABB XT2S 160 4 pole Standard MCCB Electronic trip unit I Ii=10A

ABB XT2S 160 4 pole Standard MCCB Electronic trip unit I Ii=10A

ABB 1SDA067839R1 SACE Tmax XT2S 160 four-pole moulded case circuit breaker with Ekip I electronic trip unit, 10 A rated current and fixed front terminal configuration for industrial power distribution.

SKU: 1SDA067839R1Alt SKU: XT2S 160 Ekip I In=10A 4p F FMPN: 1SDA067839R1
Price
List Price £1,077.45 ex VAT
Your Price (ex VAT)
£1,077.45
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £1,077.45
Trade pricing is personalised to your account

Manufacturer Lead Time

£1,077.45

Why Choose the ABB 1SDA067839R1 XT2S 160 Ekip I In=10A 4P MCCB?

The ABB 1SDA067839R1 is a high-performance SACE Tmax XT2S moulded case circuit breaker (MCCB) engineered to provide dependable protection for low voltage electrical distribution systems. Featuring an advanced Ekip I electronic trip unit, this circuit breaker delivers accurate overload and short-circuit protection while helping maximise system reliability and operational safety.

Designed for industrial installations, OEM machinery and commercial electrical panels, the XT2S series combines compact dimensions with excellent interrupting performance. Its electronic protection enables precise current monitoring, improved selectivity and enhanced protection compared with traditional thermal magnetic circuit breakers.

Configured with a 160 A frame size, 10 A rated current, four poles and front terminals, the ABB 1SDA067839R1 is ideal for protecting critical power distribution circuits where dependable operation and long service life are essential.

Key Advantages

  • High-performance ABB SACE Tmax XT2S moulded case circuit breaker.
  • Ekip I electronic trip unit provides accurate protection.
  • 10 A rated current within a 160 A frame.
  • Four-pole design for complete circuit isolation.
  • High short-circuit breaking capacity for demanding industrial installations.
  • Compact fixed version with front terminal connections.
  • Suitable for industrial control panels, switchboards and power distribution systems.

Key Features

  • Manufacturer: ABB
  • Series: SACE Tmax XT
  • Model: XT2S 160 Ekip I In=10A 4P F F
  • Product ID: 1SDA067839R1
  • 160 A frame size.
  • 10 A rated current.
  • Ekip I electronic trip unit.
  • Four-pole fixed MCCB.
  • Front terminal configuration.
  • Designed for IEC low voltage power distribution.

Reliable Protection for Low Voltage Power Distribution

The ABB SACE Tmax XT range has been developed to provide dependable circuit protection across industrial, commercial and infrastructure applications. Electronic trip units improve protection accuracy while simplifying coordination between upstream and downstream protective devices.

The XT2S platform combines compact dimensions, high interrupting capacity and robust construction, making it an excellent choice for switchboards, motor control centres, machinery and critical electrical installations where safe and reliable operation is essential.

Typical Applications

  • Industrial power distribution panels.
  • OEM machinery and automation equipment.
  • Motor control centres.
  • Commercial electrical switchboards.
  • Manufacturing facilities.
  • Infrastructure and utility installations.

Technical Specifications

Mounting Type Fixed
Application Power distribution
Trip Unit I
Current 10 A
Phase Three Phase
Manufacturer ABB
Series SACE Tmax XT
Model XT2S 160 Ekip I In=10A 4P F F
Product ID 1SDA067839R1
Product type Moulded case circuit breaker (MCCB)
Frame size XT2 160
Rated current (In) 10 A
Rated uninterrupted current (Iu) 160 A
Number of poles 4
Trip unit Ekip I electronic
Rated operational voltage Up to 690 V AC
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 8 kV
Frequency 50 / 60 Hz
Terminal type Front terminals
Mounting Fixed
Breaking capacity Up to 85 kA at 220 to 240 V AC, 50 kA at 380 to 440 V AC
Dimensions (H × W × D) 130 × 120 × 82.5 mm
Weight Approx. 1.6 kg
HS Code 85362090
Country of Manufacture Italy
Poles 4-pole
Device Type MCCB
Breaking Capacity 85 kA

Frequently Asked Questions

What is the ABB 1SDA067839R1 used for?

This moulded case circuit breaker protects low voltage electrical distribution systems against overloads and short circuits.

What is the rated current of this MCCB?

The electronic trip unit is configured with a 10 A rated current within a 160 A frame size.

How many poles does this circuit breaker have?

The ABB 1SDA067839R1 is a four-pole moulded case circuit breaker.

What type of trip unit is fitted?

This model incorporates the ABB Ekip I electronic trip unit for accurate overload and short-circuit protection.

Where is this MCCB commonly installed?

It is typically installed in industrial switchboards, power distribution panels, motor control centres and OEM electrical equipment.
