Why Choose the ABB 1SDA067857R1 SACE Tmax XT2H MCCB?

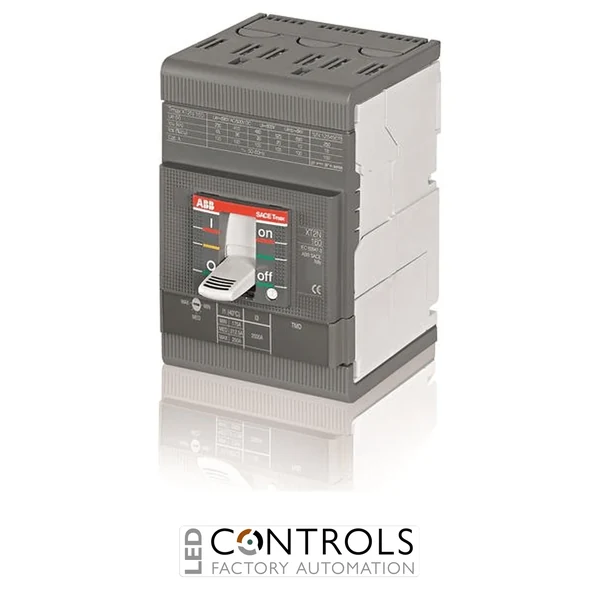

The ABB 1SDA067857R1 is a high-performance SACE Tmax XT2H moulded case circuit breaker (MCCB) designed for reliable protection in industrial, commercial and OEM electrical distribution systems. Part of the advanced ABB SACE Tmax XT series, this breaker combines compact construction with solid-state electronic protection for demanding low-voltage applications.
This model features an Ekip Dip LS/I electronic release with a 10 A rated current, providing long-time, short-time and instantaneous protection functions for precise circuit protection. Its three-pole fixed configuration with front terminals supports straightforward installation within switchboards, control panels and machinery assemblies.
With a rated operational voltage of 690 V AC, a 70 kA breaking capacity at 415 V AC and compliance with IEC 60947-2, the ABB 1SDA067857R1 provides dependable protection for panel builders, contractors and OEM machine builders requiring proven ABB performance.
Key Advantages
- Compact ABB moulded case circuit breaker for industrial protection systems.
- Ekip Dip LS/I electronic release for accurate circuit protection.
- 10 A rated current in a compact XT2H 160 frame.
- Three-pole fixed design with front terminal connection.
- High breaking capacity up to 70 kA at 415 V AC.
- Suitable for power distribution, control panels and OEM electrical systems.
Key Features
- ABB SACE Tmax XT2H series.
- Product ID: 1SDA067857R1.
- XT2H 160 frame moulded case circuit breaker.
- Ekip Dip LS/I solid-state electronic release.
- 10 A rated current.
- Three-pole (3P) configuration.
- Fixed mounting version with front terminals.
- Designed for AC power distribution applications.
Reliable Electronic Protection for Electrical Systems
ABB SACE Tmax XT circuit breakers are designed to provide dependable circuit protection across modern low-voltage installations. The Ekip Dip LS/I electronic release offers precise protection settings for long-time, short-time and instantaneous fault conditions, helping protect cables, equipment and downstream circuits.
The compact XT2H frame makes this breaker well suited to switchboards, distribution panels, automation systems and OEM machinery. Its high interrupting capacity and robust fixed mounting format help simplify panel design while maintaining reliable protection performance.
Typical Applications
- Industrial control panels and electrical switchboards.
- OEM machinery and automation systems.
- Power distribution panels.
- Commercial building electrical installations.
- Low-voltage protection circuits.
- Infrastructure and industrial electrical systems.
