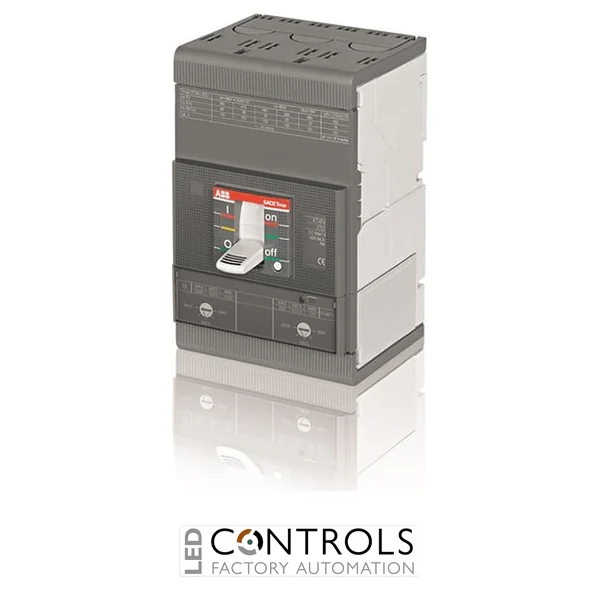

Why Choose the ABB 1SDA068569R1 XT4L 160 Ekip LSIG MCCB?
The ABB 1SDA068569R1 is a high-performance SACE Tmax XT4L moulded case circuit breaker (MCCB) designed for reliable protection of industrial and commercial low voltage power distribution systems. Featuring an advanced Ekip LSIG electronic trip unit, this breaker provides precise overload, short circuit, instantaneous and earth fault protection for demanding electrical installations.
As part of the ABB SACE Tmax XT series, the XT4L range combines compact construction with high breaking performance and dependable operation. Its fixed three-pole design, front terminals and solid-state release make it suitable for switchboards, distribution panels, OEM machinery and industrial control equipment.
With a 160 A rated current, 160 A frame size, 690 V AC rated operational voltage and 120 kA breaking capacity at 415 V AC, the ABB 1SDA068569R1 is ideal for installations requiring robust circuit protection, high selectivity and enhanced electronic trip functionality.
Key Advantages
- High-performance ABB SACE Tmax XT4L moulded case circuit breaker.
- 160 A rated current within a compact 160 A frame size.
- Ekip LSIG electronic trip unit for adjustable circuit protection.
- Includes earth fault protection in addition to LSI functions.
- 120 kA breaking capacity at 415 V AC for demanding applications.
- Fixed three-pole MCCB with front terminals.
Key Features
- ABB SACE Tmax XT4L series.
- 160 A rated current.
- XT4 160 frame size.
- Three-pole fixed configuration.
- Ekip LSIG solid-state electronic release.
- 690 V AC rated operational voltage.
- Front terminal connection for panel installation.
- Designed for reliable low voltage circuit protection.
Reliable Protection for Industrial Power Distribution
Moulded case circuit breakers such as the ABB XT4L are used to protect electrical circuits against overloads, short circuits and fault conditions. The integrated Ekip LSIG trip unit provides long-time, short-time, instantaneous and ground fault protection functions, helping engineers coordinate protection across distribution boards and control systems.
The ABB 1SDA068569R1 is designed for installations where dependable fault interruption, adjustable electronic protection and compact panel mounting are essential. Its robust construction and high breaking capacity make it suitable for demanding industrial environments and critical electrical infrastructure.
Typical Applications
- Industrial power distribution boards.
- Electrical switchboards and panel boards.
- Motor control centres.
- OEM machinery and automation equipment.
- Commercial building distribution systems.
- Manufacturing and process control installations.
