Why Choose the ABB 1SDA100685R1 Ekip Touch Measuring LSIG Trip Unit?

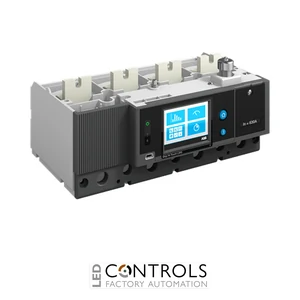

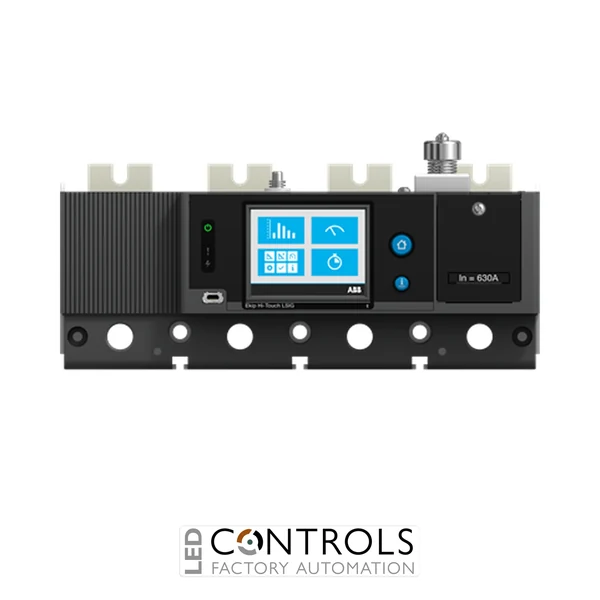

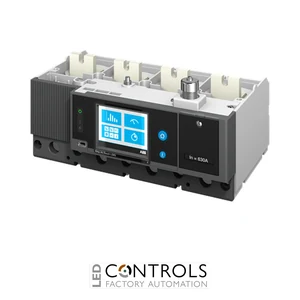

The ABB 1SDA100685R1 is an advanced Ekip Touch Measuring LSIG electronic trip unit designed for ABB SACE Tmax XT5 moulded case circuit breakers. It provides intelligent protection, accurate electrical measurement and advanced monitoring functions for modern low-voltage power distribution systems.
Featuring comprehensive LSIG protection, the ABB Ekip Touch unit provides protection against overload, short circuit, instantaneous faults and earth faults. The integrated touch interface enables simple configuration, diagnostics and monitoring of electrical operating conditions.
With a 400 A rated current, four-pole configuration and compatibility with ABB Tmax XT5 circuit breakers, the 1SDA100685R1 is ideal for industrial switchgear, automation systems and commercial electrical installations requiring reliable and intelligent circuit protection.
Key Advantages
- Advanced ABB Ekip Touch electronic protection technology.
- LSIG protection functions for comprehensive circuit safety.
- 400 A rated current suitable for industrial distribution applications.
- Integrated measurement functions for improved electrical monitoring.
- Compatible with ABB Tmax XT5 moulded case circuit breakers.
- Four-pole design supports flexible low-voltage power distribution systems.
Key Features
- ABB SACE Tmax XT5 accessory.
- Ekip Touch Measuring LSIG electronic trip unit.
- Rated current In = 400 A.
- Four-pole (4P) configuration.
- LSIG protection: Long time, Short time, Instantaneous and Ground fault.
- Solid-state electronic release technology.
- Integrated AC current measurement capability.
- Touch display interface for setup and diagnostics.
- Designed for ABB low-voltage circuit breaker applications.
Intelligent Circuit Protection for Modern Electrical Systems
Electronic trip units such as the ABB Ekip Touch Measuring LSIG provide accurate protection coordination and advanced diagnostics for industrial electrical networks. They continuously monitor current conditions to help protect equipment and improve system reliability.
The ABB Ekip platform allows engineers to configure protection settings, monitor electrical performance and optimise low-voltage distribution systems. The 1SDA100685R1 provides a flexible protection solution for switchboards, machinery applications and industrial automation environments.
Typical Applications
- Industrial switchgear assemblies.
- Manufacturing and automation power systems.
- Commercial electrical distribution boards.
- Machine protection systems.
- OEM control panels.
- Low-voltage energy management installations.
