Why Choose the ABB 1SDA100385R1 Moulded Case Circuit Breaker?

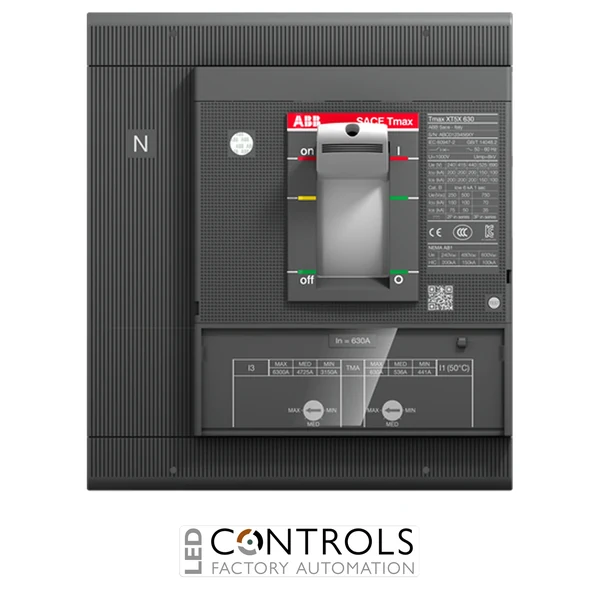

The ABB 1SDA100385R1 is a robust SACE Tmax XT5N moulded case circuit breaker (MCCB) designed to deliver dependable protection for low-voltage electrical distribution systems. Engineered for industrial and commercial installations, it provides reliable protection against overloads and short circuits while maintaining the continuity and safety of critical electrical infrastructure.
Part of the proven ABB SACE Tmax XT range, this fixed circuit breaker combines a compact design with advanced thermomagnetic protection, making it an excellent choice for panel builders, OEMs and electrical contractors. The front terminal configuration simplifies installation whilst the fully rated neutral enhances system flexibility for a wide range of applications.
With a 400 A rated current, 4-pole configuration and a 36 kA breaking capacity at 415 V AC, the ABB 1SDA100385R1 is ideal for protecting switchboards, power distribution systems, industrial machinery and commercial electrical installations requiring reliable overcurrent protection.
Key Advantages
- High-performance moulded case circuit breaker for industrial and commercial electrical protection.
- 400 A rated current suitable for medium and high-capacity distribution systems.
- 4-pole design provides protection for all phases and the neutral conductor.
- Reliable thermomagnetic (TMA) trip unit protects against overloads and short circuits.
- Fixed front terminal arrangement enables straightforward panel installation.
- Compact ABB XT5 frame reduces switchboard space requirements.
Key Features
- ABB SACE Tmax XT5N series.
- 400 A rated current.
- 36 kA breaking capacity at 415 V AC.
- 4-pole fixed construction.
- Thermomagnetic TMA protection unit.
- Adjustable magnetic short-circuit setting.
- Fully rated neutral (100% In).
- Front terminal connections for simple installation.
Reliable Protection for Low Voltage Power Distribution
The ABB XT5N moulded case circuit breaker provides dependable protection by automatically disconnecting electrical circuits during overload or short-circuit conditions. Its thermomagnetic release combines thermal protection for sustained overloads with rapid magnetic tripping during fault conditions, helping protect equipment and minimise downtime.
The SACE Tmax XT series is widely used throughout industrial, commercial and infrastructure projects where high reliability, compact dimensions and compliance with international electrical standards are essential.
Typical Applications
- Industrial switchboards.
- Commercial electrical distribution panels.
- Motor control centres.
- Manufacturing plants.
- OEM machinery.
- Infrastructure and utility installations.
