Why Choose the ABB 1SDA100755R1 XT6S 1000 Ekip Dip LS/I Moulded Case Circuit Breaker?

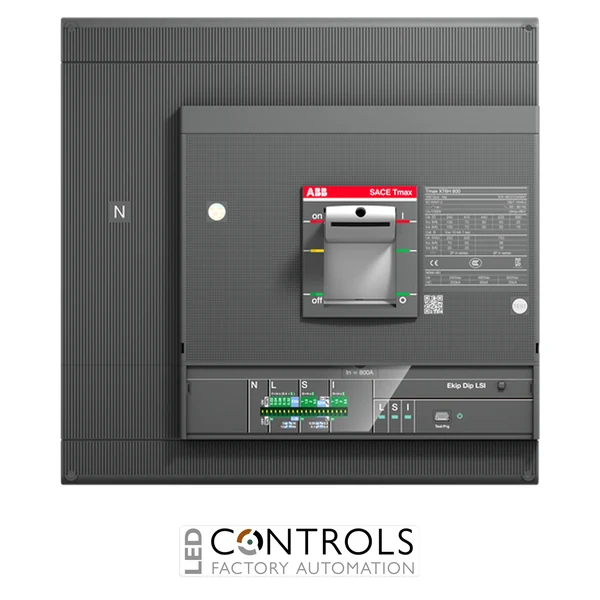

The ABB 1SDA100755R1, also identified as the XT6S 1000 Ekip Dip LS/I In=1000 4P F F, is a high-performance moulded case circuit breaker (MCCB) from the ABB SACE Tmax XT range. Designed for demanding industrial and commercial power distribution systems, it provides dependable protection against overloads and short circuits while delivering high breaking performance and long-term operational reliability.
This model features an advanced Ekip Dip LS/I electronic trip unit, offering adjustable Long-time (L), Short-time (S) and Instantaneous (I) protection. The electronic release provides precise protection settings, helping improve system selectivity and equipment protection in modern low-voltage installations.
With a 1000 A rated current, 4-pole fixed configuration and front terminals, the XT6S 1000 is suitable for industrial switchboards, motor control centres, critical infrastructure, manufacturing facilities and commercial power distribution systems operating up to 690 V AC.
Key Advantages
- Genuine ABB SACE Tmax XT moulded case circuit breaker.
- 1000 A rated current.
- 4-pole fixed version.
- Advanced Ekip Dip LS/I electronic trip unit.
- Adjustable overload and short-circuit protection.
- Suitable for installations up to 690 V AC.
- High-performance XT6S interrupting capacity.
- Designed for demanding industrial power distribution.
Key Features
- ABB SACE Tmax XT Series.
- Model: XT6S 1000 Ekip Dip LS/I In=1000 4P F F.
- Product code: 1SDA100755R1.
- Electronic Ekip Dip LS/I trip unit.
- Fixed mounted circuit breaker.
- Front terminal connections.
- Four-pole construction.
- Industrial-grade MCCB.
- High mechanical and electrical endurance.
- Compatible with ABB XT6 accessories.
Advanced Electronic Circuit Protection
The integrated Ekip Dip LS/I trip unit continuously monitors current flow and delivers accurate electronic protection against overloads and short circuits. Adjustable protection settings help engineers achieve improved discrimination and coordination between upstream and downstream protective devices, reducing unnecessary outages while maximising installation safety.
The XT6S frame is engineered for demanding industrial applications requiring dependable interruption performance, robust mechanical durability and advanced protection for modern low-voltage distribution networks.
Typical Applications
- Main industrial switchboards.
- Commercial power distribution.
- Motor control centres.
- Manufacturing plants.
- Critical infrastructure.
- Data centres.
- Energy distribution systems.
- OEM electrical equipment.
