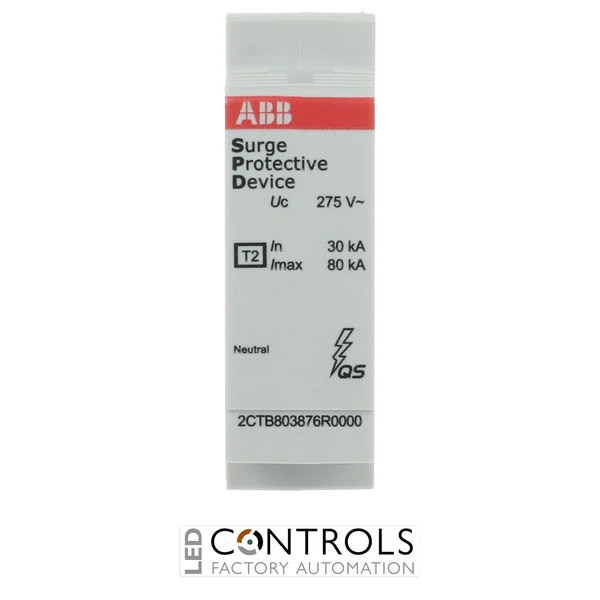

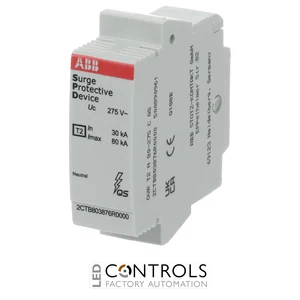

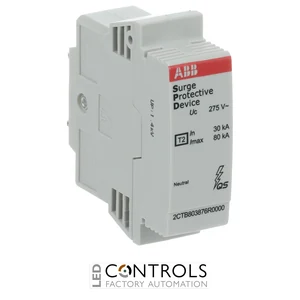

2CTB803876R0000 ABB OVR T2-T3 N 80-275 C QS Replacement Surge Protection Cartridge

2CTB803876R0000 ABB OVR T2-T3 N 80-275 C QS Replacement Surge Protection Cartridge

ABB 2CTB803876R0000 OVR T2-T3 N 80-275 C QS is a single-pole QuickSafe replacement surge protection cartridge with 80 kA maximum discharge current, 30 kA nominal discharge current, 6.25 kA impulse current and 1.4 kV voltage protection level.

SKU: 2CTB803876R0000MPN: 2CTB803876R0000
Price
List Price £74.57 ex VAT
Your Price (ex VAT)
£74.57
Manufacturer Lead Time Estimated Delivery 10 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £74.57
Trade pricing is personalised to your account

Manufacturer Lead Time

£74.57

Why Choose the ABB OVR T2-T3 N 80-275 C QS Replacement Cartridge?

The ABB OVR T2-T3 N 80-275 C QS 2CTB803876R0000 is a single-pole pluggable replacement surge protection cartridge from ABB's OVR QuickSafe range. Designed for the neutral protection position of compatible OVR surge protective devices, it enables a worn protection element to be replaced without replacing the complete SPD assembly.

The OVR T2-T3 N 80-275 C QS provides a maximum discharge current Imax of 80 kA and a nominal discharge current In of 30 kA using an 8/20 µs waveform. It also has an impulse current Iimp of 6.25 kA using a 10/350 µs waveform and a voltage protection level Up of 1.4 kV.

Designed for 230/400 V AC TT and TN-S systems, the cartridge has a 275 V rating and QuickSafe plug-in construction. Its compact 17.6 mm width makes it a straightforward service component for compatible ABB OVR assemblies, supporting rapid maintenance and restoration of surge protection after cartridge replacement becomes necessary.

Key Advantages

  • 80 kA maximum discharge current (Imax) for high transient surge-current capability.
  • 30 kA nominal discharge current (In) using an 8/20 µs waveform.
  • 6.25 kA impulse current Iimp using a 10/350 µs waveform.
  • 1.4 kV voltage protection level Up for effective transient voltage limitation.
  • QuickSafe plug-in cartridge design enables straightforward replacement of the protection element.
  • Designed as a neutral replacement cartridge for compatible ABB OVR surge protective devices.

Key Features

  • ABB OVR QuickSafe surge protection range.
  • Single-pole replacement cartridge.
  • 275 V rating.
  • 80 kA maximum discharge current Imax.
  • 30 kA nominal discharge current In.
  • 6.25 kA impulse current Iimp.
  • 1.4 kV voltage protection level Up.
  • QuickSafe (QS) plug-in construction.
  • Suitable for compatible TT and TN-S systems.
  • Complies with IEC 61643-11 and EN 61643-11.

QuickSafe Replacement Cartridge for ABB OVR Surge Protection

Pluggable surge protective devices allow individual protection elements to be renewed after they reach the end of their service life, avoiding unnecessary replacement of the complete installed SPD assembly. This approach can reduce maintenance time while retaining the correctly installed base and associated electrical connections.

The ABB OVR T2-T3 N 80-275 C QS provides 80 kA Imax, 30 kA In, 6.25 kA Iimp and a 1.4 kV Up in a compact single-pole QuickSafe cartridge. It is intended for the neutral position of compatible ABB OVR configurations used in TT and TN-S low-voltage distribution systems.

Typical Applications

  • Replacement cartridge for compatible ABB OVR QuickSafe SPDs.
  • Neutral surge protection in TT electrical distribution systems.
  • Neutral surge protection in TN-S electrical distribution systems.
  • 230/400 V AC building electrical installations.
  • Commercial and industrial distribution boards.
  • Preventive and corrective maintenance of pluggable ABB surge protection assemblies.
  • Restoring protection after an installed compatible cartridge reaches end of life.

Technical Specifications

Tick the specs you need, then view products that match.

Impulse Current Iimp (kA) 6.25 kA
Series OVR QuickSafe
Order code 2CTB803876R0000
EAN / GTIN 3660308520944
Product group Surge Protection Devices
Product type Replacement surge protection cartridge
Application Neutral protection cartridge for compatible OVR assemblies
Product main type T2
Arrester class Class II
Number of poles 1
Number of protected poles 1
Compatible distribution systems TT / TN-S
Nominal AC system voltage 230/400 V AC
Nominal voltage 230 V AC
Voltage rating 275 V
Maximum discharge current Imax (8/20 µs) 80 kA
Nominal discharge current In (8/20 µs) 30 kA
Impulse current Iimp (10/350 µs) 6.25 kA
Voltage protection level Up 1.4 kV
Rated service short-circuit breaking capacity Ics 100 kA
Degree of protection IP20
Construction Plug-in replacement cartridge
Technology QuickSafe (QS)
Maximum operating altitude 5000 m
Dimensions (H × W × D) 57 × 17.6 × 55.6 mm
Weight 0.12 kg
Standards IEC 61643-11 / EN 61643-11

Frequently Asked Questions

What is the ABB OVR T2-T3 N 80-275 C QS?

The ABB 2CTB803876R0000 is a single-pole QuickSafe replacement surge protection cartridge designed for the neutral protection position of compatible ABB OVR surge protective devices.

What are the discharge current ratings of the OVR T2-T3 N 80-275 C QS?

The cartridge has a maximum discharge current Imax of 80 kA and a nominal discharge current In of 30 kA, based on an 8/20 µs surge-current waveform.

What is the impulse current rating of 2CTB803876R0000?

The ABB 2CTB803876R0000 has an impulse current Iimp of 6.25 kA using a 10/350 µs waveform.

What is the voltage protection level of the OVR T2-T3 N 80-275 C QS?

The cartridge provides a voltage protection level Up of 1.4 kV.

Is the ABB OVR T2-T3 N 80-275 C QS a complete surge protective device?

The 2CTB803876R0000 is a plug-in replacement cartridge intended for use with compatible ABB OVR QuickSafe surge protective device assemblies rather than as a standalone complete SPD assembly.

Trusted QuickSafe Surge Protection from ABB

ABB OVR QuickSafe replacement cartridges provide electrical installers and maintenance professionals with a practical way to restore compatible pluggable surge protective devices, combining high surge-current capability with compact construction and straightforward cartridge replacement.
