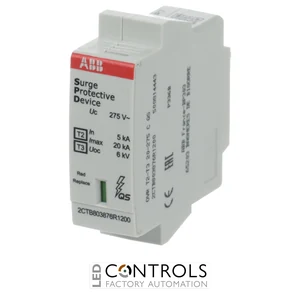

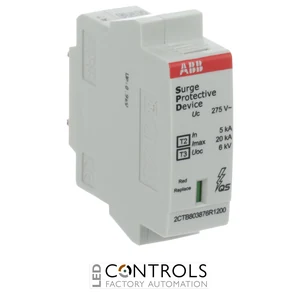

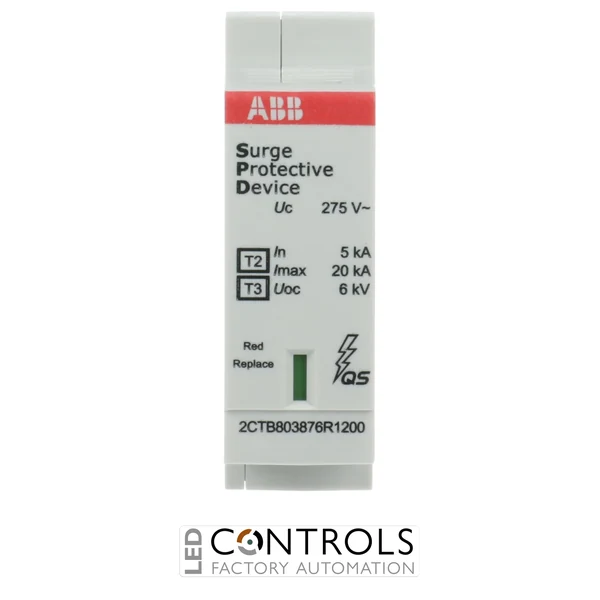

Why Choose the ABB OVR T2-T3 20-275 C QS Replacement Surge Protection Cartridge?
The ABB OVR T2-T3 20-275 C QS is a replacement phase cartridge for compatible ABB OVR QuickSafe combined Type 2 and Type 3 surge protective devices. Designed for the ABB OVR T2-T3 20-275 range, it enables a worn or end-of-life surge protection cartridge to be replaced without changing the complete SPD base.
The cartridge provides a maximum discharge current (Imax) of 20 kA and a nominal discharge current (In) of 5 kA using an 8/20 µs surge-current waveform. It is designed for 230 V AC nominal applications with a 275 V AC maximum continuous operating voltage (Uc) and provides a 0.9 kV voltage protection level (Up).
As a genuine ABB QuickSafe pluggable replacement cartridge, the OVR T2-T3 20-275 C QS provides a straightforward way to restore surge protection after a cartridge reaches end of life. Its integrated status indicator assists with visual condition checking, while the compact single-pole cartridge format is designed for direct installation into compatible ABB OVR T2-T3 pluggable bases.
Key Advantages
- Genuine ABB replacement phase cartridge for compatible OVR T2-T3 QuickSafe SPDs.
- Restores surge protection without replacing the complete SPD base.
- Combined Type 2 and Type 3 surge protection characteristics.
- 20 kA maximum discharge current (Imax) using an 8/20 µs waveform.
- 5 kA nominal discharge current (In).
- 275 V AC maximum continuous operating voltage.
- Low 0.9 kV voltage protection level (Up).
- QuickSafe technology supports dependable surge protection and end-of-life disconnection.
- Integrated status indication simplifies visual inspection.
- Compact plug-in format supports fast and convenient maintenance.
Key Features
- ABB OVR T2-T3 QuickSafe replacement cartridge.
- Phase cartridge for compatible 275 V OVR T2-T3 devices.
- Single protected pole.
- Type 2 + Type 3 / Class II + III surge protection.
- 20 kA Imax maximum discharge current.
- 5 kA In nominal discharge current.
- 2 kA Iimp impulse current using a 10/350 µs waveform.
- 230 V AC nominal voltage.
- 275 V AC Uc maximum continuous operating voltage.
- 0.9 kV voltage protection level (Up).
- 100 kA short-circuit withstand capability.
- Integrated QuickSafe technology.
- Visual state indicator.
- Plug-in replacement construction.
Reliable Replacement Protection for ABB OVR T2-T3 QuickSafe SPDs
Pluggable surge protective devices allow the protection element to be replaced independently of the permanently wired base. When a surge cartridge reaches the end of its service life, replacing only the cartridge can restore the SPD to its intended protection capability while reducing maintenance time and avoiding unnecessary rewiring of the installation.
The ABB OVR T2-T3 20-275 C QS provides the electrical characteristics required for compatible 275 V OVR T2-T3 QuickSafe devices, including a 20 kA maximum discharge current, 5 kA nominal discharge current and 0.9 kV voltage protection level. Its plug-in construction and visual status indication make it a practical spare component for maintaining ABB surge protection installations.
Typical Applications
- Replacement cartridge for compatible ABB OVR T2-T3 20-275 QuickSafe SPDs.
- Maintenance of low-voltage surge protection systems.
- 230 V AC single-phase electrical installations.
- 230/400 V AC distribution systems.
- TT, TN-C and TN-S electrical networks.
- Residential and commercial distribution boards.
- Industrial control and automation panels.
- Replacement of end-of-life phase surge protection cartridges.
