Why Choose the ABB OVR T2 N 80-350 C QS Surge Protection Device?

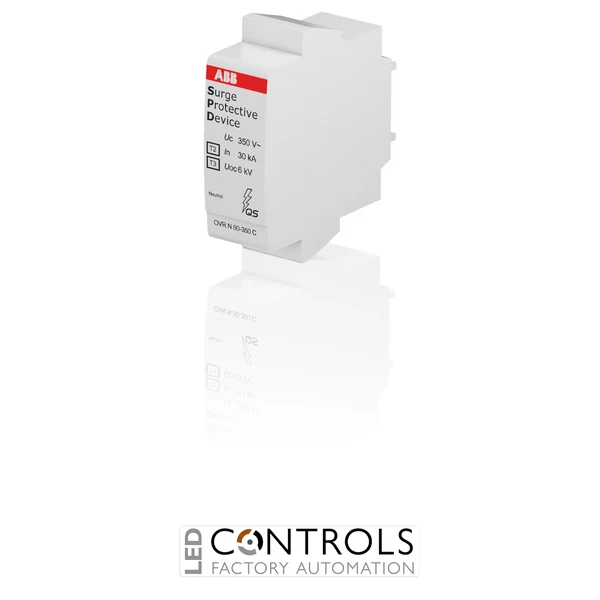

The ABB OVR T2 N 80-350 C QS, order code 2CTB803886R0000, is a Type 2 surge protection device (SPD) cartridge designed to protect low-voltage electrical installations and connected equipment against transient overvoltages caused by indirect lightning events and switching surges. As part of the ABB OVR QuickSafe surge protection range, it provides dependable protection for industrial, commercial and electrical distribution applications.
Designed for neutral-to-earth surge protection, the OVR T2 N 80-350 C QS combines a high maximum discharge current with a compact, replaceable cartridge format. It has a maximum discharge current (Imax) of 80 kA, a nominal discharge current (In) of 30 kA and a voltage protection level (Up) of 1.4 kV, helping divert damaging transient currents away from sensitive electrical equipment.
The device is intended for 230 V AC systems and has a maximum continuous operating voltage of 350 V AC. It is suitable for use in TT and TN-S low-voltage distribution systems and is manufactured in accordance with IEC 61643-11 / EN 61643-11.
Key Advantages
- High-performance Type 2 surge protection for low-voltage electrical installations.
- 80 kA maximum discharge current (Imax) for handling substantial transient surge currents.
- 30 kA nominal discharge current (In) for reliable surge protection performance.
- 1.4 kV voltage protection level (Up) helps limit transient overvoltages reaching downstream equipment.
- Designed for neutral-to-earth protection in compatible electrical distribution systems.
- Replaceable cartridge construction simplifies maintenance and replacement.
- Compact single-pole format for integration into electrical distribution equipment.
Key Features
- ABB OVR T2 QuickSafe surge protection range.
- Type 2 / Class II surge protection device.
- 80 kA maximum discharge current (8/20 µs).
- 30 kA nominal discharge current (8/20 µs).
- 6.25 kA impulse current (10/350 µs).
- 350 V AC maximum continuous operating voltage.
- 1.4 kV voltage protection level.
- Single-pole neutral protection configuration.
- IP20 protection rating.
- Compliant with IEC 61643-11 / EN 61643-11.
Reliable Surge Protection for Electrical Systems
Surge protection devices help safeguard electrical installations by diverting transient surge currents and limiting the voltage that reaches connected equipment. Type 2 SPDs are commonly installed within low-voltage distribution systems to protect against transient overvoltages associated with indirect lightning activity and electrical switching events.
The ABB OVR T2 range is designed for coordinated surge protection within electrical installations. The OVR T2 N 80-350 C QS provides high-capacity neutral-to-earth protection and its replaceable cartridge design allows the protection element to be serviced without replacing the complete surge protection assembly.
Typical Applications
- Low-voltage electrical distribution systems.
- Industrial electrical control and distribution panels.
- Commercial building electrical installations.
- TT and TN-S distribution networks.
- Protection against indirect lightning-induced surges.
- Protection against electrical switching transients.
- Coordinated surge protection systems using ABB OVR devices.
