Why Choose the ABB OVR T2 3N 40-275 P TS QS Surge Protection Device?

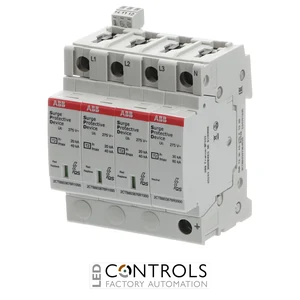

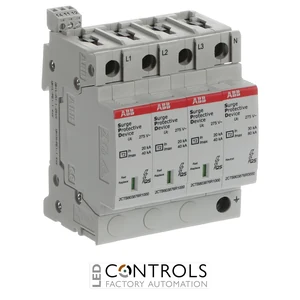

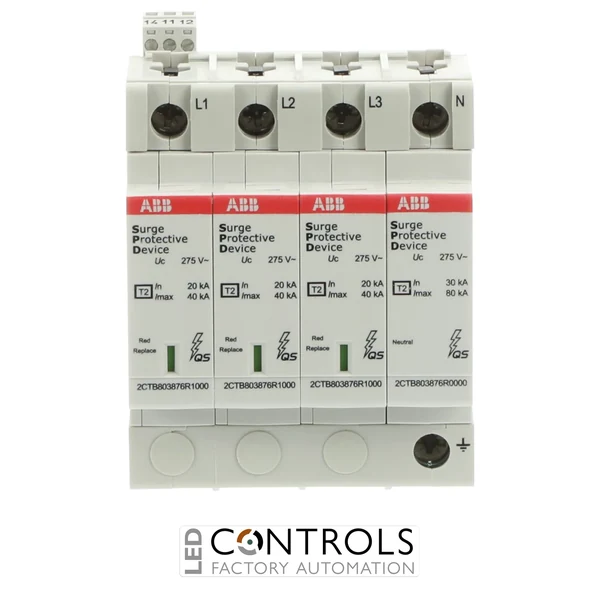

The ABB OVR T2 3N 40-275 P TS QS, order code 2CTB803973R0500, is a pluggable Type 2 surge protection device (SPD) designed to protect low-voltage electrical installations and sensitive equipment against transient overvoltages caused by indirect lightning and electrical switching events. As part of the ABB OVR QuickSafe surge protection range, it provides dependable surge protection for three-phase plus neutral electrical distribution systems.
Designed for 230/400 V AC TT and TN-S networks, this SPD uses a 3+1 protection configuration and provides a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA. Its 1.5 kV voltage protection level (Up) helps limit transient overvoltages reaching downstream electrical and electronic equipment.
The OVR T2 3N 40-275 P TS QS has a 275 V AC maximum continuous operating voltage and features pluggable protection cartridges, visual status indication and remote signalling auxiliary contacts. Its four-pole DIN rail format makes it suitable for integration into residential, commercial and industrial electrical distribution boards where reliable three-phase surge protection and remote status monitoring are required.
Key Advantages
- High-performance Type 2 surge protection for three-phase plus neutral electrical installations.
- 40 kA maximum discharge current (Imax) with an 8/20 µs waveform.
- 20 kA nominal discharge current (In) with an 8/20 µs waveform.
- 1.5 kV voltage protection level (Up) helps protect downstream equipment from transient overvoltages.
- 275 V AC maximum continuous operating voltage for 230/400 V AC systems.
- Integrated remote signalling auxiliary contacts for monitoring SPD status.
- Pluggable construction simplifies inspection, maintenance and replacement.
- Suitable for TT and TN-S distribution networks.
Key Features
- ABB OVR QuickSafe surge protection range.
- Type 2 surge protection device.
- 3+1 protection configuration for three-phase plus neutral systems.
- 40 kA maximum discharge current (8/20 µs).
- 20 kA nominal discharge current (8/20 µs).
- 2 kA impulse current (10/350 µs).
- 275 V AC maximum continuous operating voltage.
- 1.5 kV overall voltage protection level.
- 1.25 kV L-N voltage protection level.
- 1.4 kV N-PE voltage protection level.
- Integrated visual status indication.
- 1 NO + 1 NC auxiliary contacts for remote signalling.
- Pluggable protection elements for straightforward maintenance.
- DIN rail mounting for electrical distribution boards.
- IP20 protection rating.
- Compliant with IEC 61643-11 / EN 61643-11.
Reliable Type 2 Protection for Three-Phase Electrical Systems
Type 2 surge protection devices protect low-voltage electrical installations and sensitive equipment against transient overvoltages associated with indirect lightning and switching events. They are designed to safely discharge surge currents characterised by an 8/20 µs waveform while limiting the residual voltage reaching downstream equipment.
The ABB OVR T2 3N 40-275 P TS QS combines three-phase plus neutral protection with pluggable construction, visual status indication and remote signalling. These features make it suitable for distribution boards where dependable surge protection, straightforward maintenance and remote monitoring of protection status are required.
Typical Applications
- 230/400 V three-phase plus neutral electrical installations.
- TT and TN-S low-voltage distribution networks.
- Residential electrical distribution systems.
- Commercial building electrical installations.
- Industrial control and distribution panels.
- Intermediate electrical distribution boards.
- Protection of sensitive electrical and electronic equipment.
- Protection against indirect lightning-induced and electrical switching surges.
