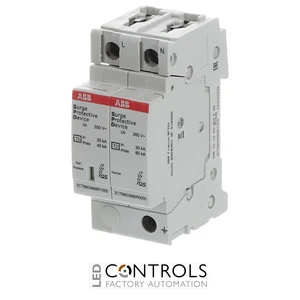

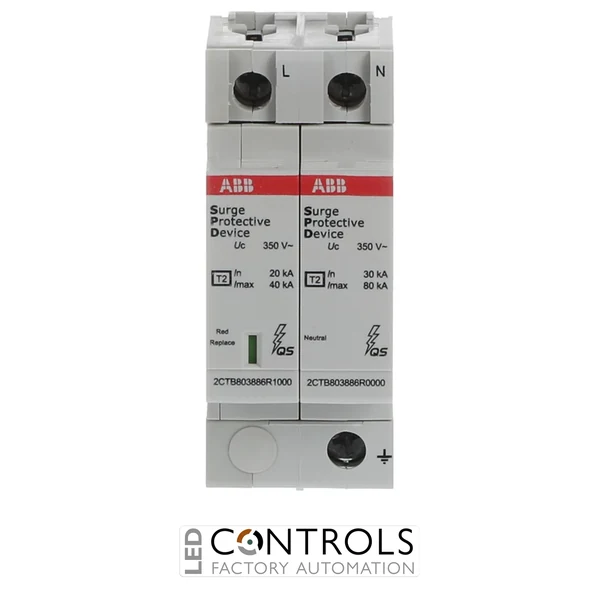

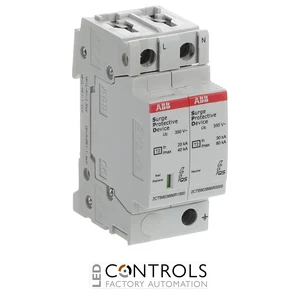

2CTB803982R1100 ABB OVR T2 1N 40-350 P QS Type 2 Surge Protective Device

2CTB803982R1100 ABB OVR T2 1N 40-350 P QS Type 2 Surge Protective Device

ABB OVR T2 1N 40-350 P QS Type 2 pluggable surge protective device for 230 V AC single-phase plus neutral TT and TN-S systems, with 350 V AC maximum continuous operating voltage, 20 kA nominal discharge current and 40 kA maximum discharge current.

SKU: 2CTB803982R1100MPN: 2CTB803982R1100
Price
List Price £202.21 ex VAT
Your Price (ex VAT)
£202.21
Manufacturer Lead Time Estimated Delivery 10 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £202.21
Trade pricing is personalised to your account

Manufacturer Lead Time

£202.21

Why Choose the ABB OVR T2 1N 40-350 P QS Surge Protective Device?

The ABB OVR T2 1N 40-350 P QS is a high-performance Type 2 surge protective device (SPD) designed to protect low-voltage electrical installations against transient overvoltages caused by indirect lightning effects and switching events. Identified by ABB order code 2CTB803982R1100, this two-pole device is designed for single-phase plus neutral applications in TT and TN-S networks.

As part of the ABB OVR Type 2 QuickSafe surge protection range, the OVR T2 1N 40-350 P QS combines high surge-current handling capability with pluggable protection cartridges and visual status indication. Its modular DIN rail construction simplifies installation and maintenance in residential, commercial and industrial distribution boards.

The device is designed for a 230 V AC nominal system voltage and has a 350 V AC maximum continuous operating voltage. It provides a 20 kA nominal discharge current (In) and a 40 kA maximum discharge current (Imax) using an 8/20 µs waveform, providing dependable protection for downstream electrical and electronic equipment.

Key Advantages

  • High-performance Type 2 surge protection for single-phase plus neutral systems.
  • 40 kA maximum discharge current (Imax) for effective transient overvoltage protection.
  • 20 kA nominal discharge current (In) using an 8/20 µs waveform.
  • 350 V AC maximum continuous operating voltage.
  • Suitable for TT and TN-S low-voltage distribution networks.
  • Pluggable protection cartridges simplify maintenance and replacement.
  • Integrated visual status indication assists with routine inspection.
  • Compact two-module DIN rail format for distribution boards and control panels.

Key Features

  • ABB OVR Type 2 QuickSafe surge protection series.
  • Type 2 / Class II surge protective device.
  • 1+1 single-phase plus neutral protection configuration.
  • 230 V AC nominal system voltage.
  • 350 V AC maximum continuous operating voltage.
  • 20 kA nominal discharge current (In, 8/20 µs).
  • 40 kA maximum discharge current (Imax, 8/20 µs).
  • 2 kA impulse current capability (10/350 µs).
  • 1.5 kV L-N voltage protection level at In.
  • 1.4 kV N-PE voltage protection level.
  • <25 ns response time.
  • Pluggable protection modules with visual status indication.

Reliable Type 2 Protection for Low-Voltage Installations

Type 2 surge protective devices are designed to divert surge currents generated by indirect lightning effects and electrical switching events before damaging transient voltages reach downstream equipment. Installed at the origin of an installation, in intermediate distribution boards or close to terminal equipment, they help reduce the risk of insulation damage, electronic component failure and operational disruption.

The ABB OVR T2 1N 40-350 P QS combines a high 40 kA maximum discharge current with pluggable QuickSafe construction for convenient maintenance. Its phase protection cartridge can be replaced with the ABB OVR T2 40-350 C QS, while the neutral protection cartridge is replaceable with the compatible OVR T2 N 80-350 C QS.

Typical Applications

  • 230 V AC single-phase electrical distribution boards.
  • TT and TN-S low-voltage distribution systems.
  • Residential and commercial building installations.
  • Industrial control panels and automation systems.
  • Intermediate and sub-distribution boards.
  • Protection of sensitive electronic and control equipment.
  • Electrical installations exposed to switching and indirect lightning transients.

Technical Specifications

Tick the specs you need, then view products that match.

Impulse Current Iimp (kA) 2 kA
Series OVR T2 QuickSafe
ABB order code 2CTB803982R1100
Product group Surge Protection Devices
Product type Surge protective device (SPD)
SPD classification Type 2 / Class II
Protection configuration 1+1 / single-phase plus neutral
Number of poles 2
Number of protected poles 2
Nominal system voltage 230 V AC
Maximum continuous operating voltage 350 V AC
Nominal discharge current (In, 8/20 µs) 20 kA
Maximum discharge current (Imax, 8/20 µs) 40 kA
Impulse current (Iimp, 10/350 µs) 2 kA
Voltage protection level at In (L-N) 1.5 kV
Voltage protection level (N-PE) 1.4 kV
Response time <25 ns
Short-circuit withstand 100 kA
Network systems TT / TN-S
Protection rating IP20
Status indicator Yes
Mounting 35 mm DIN rail
Module width 2 modular spaces
Solid conductor capacity 2.5–25 mm²
Stranded conductor capacity 2.5–16 mm²
Standards IEC 61643-11 / EN 61643-11
Dimensions (H × W × D) 88 × 35.6 × 58 mm
Weight 0.24 kg
EAN 3660308519719

Frequently Asked Questions

What is the ABB OVR T2 1N 40-350 P QS used for?

It is a Type 2 surge protective device designed to protect 230 V AC single-phase plus neutral electrical installations against transient overvoltages caused by indirect lightning effects and switching events.

What is the maximum discharge current of this SPD?

The OVR T2 1N 40-350 P QS has a maximum discharge current (Imax) of 40 kA using an 8/20 µs waveform.

What is the maximum continuous operating voltage?

The device has a maximum continuous operating voltage of 350 V AC and is designed for a nominal system voltage of 230 V AC.

Which electrical networks are compatible with the OVR T2 1N 40-350 P QS?

The device is designed for TT and TN-S networks and provides two-pole single-phase plus neutral surge protection.

Can the surge protection cartridges be replaced?

Yes. The ABB OVR T2 1N 40-350 P QS uses pluggable replacement cartridges, allowing the protection modules to be serviced without replacing the complete DIN rail assembly.

Trusted Surge Protection from ABB

ABB OVR QuickSafe surge protective devices provide dependable transient overvoltage protection for residential, commercial and industrial electrical systems, combining high surge-current capability with compact modular installation and convenient maintenance.
