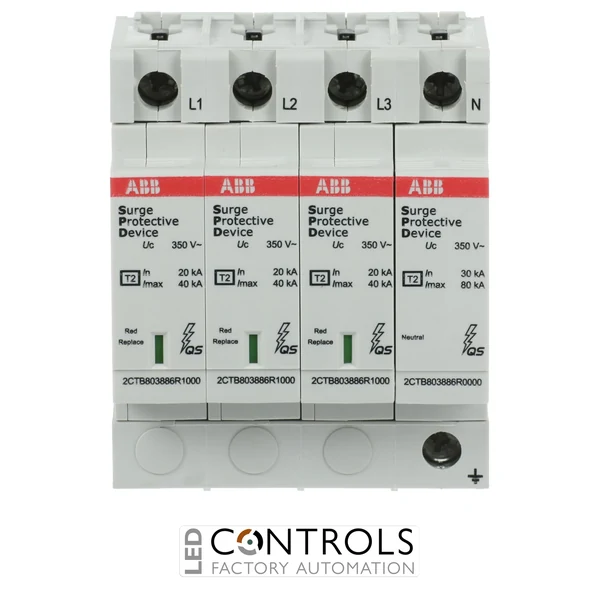

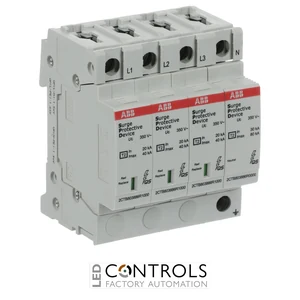

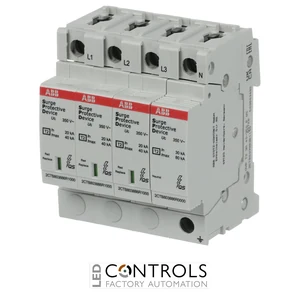

2CTB803983R1100 ABB OVR T2 3N 40-350 P QS Type 2 Surge Protection Device

2CTB803983R1100 ABB OVR T2 3N 40-350 P QS Type 2 Surge Protection Device

ABB OVR T2 3N 40-350 P QS is a pluggable Type 2 surge protection device with 40 kA maximum discharge current, 20 kA nominal discharge current and 350 V AC maximum continuous operating voltage for 230/400 V TT and TN-S electrical installations.

SKU: 2CTB803983R1100MPN: 2CTB803983R1100
Price
List Price £374.25 ex VAT
Your Price (ex VAT)
£374.25
Manufacturer Lead Time Estimated Delivery 10 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £374.25
Trade pricing is personalised to your account

Manufacturer Lead Time

£374.25

Why Choose the ABB OVR T2 3N 40-350 P QS Surge Protection Device?

The ABB OVR T2 3N 40-350 P QS, order code 2CTB803983R1100, is a pluggable Type 2 surge protection device (SPD) designed to protect low-voltage electrical installations against transient overvoltages caused by indirect lightning and electrical switching events. As part of the ABB OVR QuickSafe surge protection range, it provides coordinated surge protection for three-phase plus neutral electrical distribution systems.

Designed for 230/400 V AC TT and TN-S networks, this SPD uses a 3+1 protection configuration and provides a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA. Its overall voltage protection level (Up) of 1.7 kV, together with L-N and N-PE protection levels of 1.5 kV and 1.4 kV respectively, helps limit transient overvoltages reaching downstream equipment.

The OVR T2 3N 40-350 P QS has a 350 V AC maximum continuous operating voltage and uses replaceable phase and neutral protection cartridges. Its four-pole DIN rail format, visual status indication and 100 kA short-circuit withstand capability make it suitable for residential, commercial and industrial distribution boards requiring dependable three-phase surge protection.

Key Advantages

  • High-performance Type 2 surge protection for three-phase plus neutral electrical installations.
  • 40 kA maximum discharge current (Imax) for effective protection against transient surge currents.
  • 20 kA nominal discharge current (In) with an 8/20 µs waveform.
  • 1.7 kV overall voltage protection level (Up) helps limit transient voltage reaching downstream equipment.
  • 350 V AC maximum continuous operating voltage for 230/400 V AC systems.
  • 100 kA short-circuit withstand for robust installation in low-voltage distribution systems.
  • Pluggable QuickSafe construction enables straightforward replacement of individual protection cartridges.
  • Suitable for TT and TN-S distribution networks.

Key Features

  • ABB OVR QuickSafe surge protection range.
  • Type 2 / Class II surge protection device.
  • 3+1 protection configuration for three-phase plus neutral systems.
  • 40 kA maximum discharge current (8/20 µs).
  • 20 kA nominal discharge current (8/20 µs).
  • 2 kA impulse current (10/350 µs).
  • 350 V AC maximum continuous operating voltage.
  • 1.7 kV overall voltage protection level.
  • 1.5 kV L-N voltage protection level.
  • 1.4 kV N-PE voltage protection level.
  • 100 kA short-circuit withstand.
  • Replaceable phase and neutral protection cartridges.
  • DIN rail mounting for electrical distribution boards.
  • IP20 protection rating.
  • Compliant with IEC 61643-11 / EN 61643-11.

Reliable Type 2 Protection for Three-Phase Electrical Systems

Type 2 surge protection devices are designed to protect low-voltage installations against transient overvoltages associated with indirect lightning and electrical switching events. They safely divert surge currents characterised by an 8/20 µs waveform while limiting the residual voltage that can reach connected electrical and electronic equipment.

The ABB OVR T2 3N 40-350 P QS combines a 3+1 protection arrangement with pluggable QuickSafe construction for TT and TN-S networks. Individual phase cartridges can be replaced with the ABB OVR T2 40-350 C QS, while the neutral protection element uses the OVR T2 N 80-350 C QS, simplifying maintenance without requiring replacement of the complete SPD assembly.

Typical Applications

  • 230/400 V three-phase plus neutral electrical installations.
  • TT and TN-S low-voltage distribution networks.
  • Main and sub-distribution boards.
  • Residential electrical distribution systems.
  • Commercial building electrical installations.
  • Industrial control and distribution panels.
  • Protection of sensitive electrical and electronic equipment.
  • Protection against indirect lightning-induced and electrical switching surges.

Technical Specifications

Tick the specs you need, then view products that match.

Impulse Current Iimp (kA) 2 kA
Series OVR QuickSafe
Order code / MPN 2CTB803983R1100
Product group Surge Protection Devices
Product type Type 2 surge protection device
SPD classification Type 2 / Class II
Protection configuration 3+1
Number of poles 4
Nominal system voltage 230/400 V AC
Frequency 45–65 Hz
Maximum continuous operating voltage (Uc) 350 V AC
Nominal discharge current (In, 8/20 µs) 20 kA
Maximum discharge current (Imax, 8/20 µs) 40 kA
Impulse current (Iimp, 10/350 µs) 2 kA
Total current 80 kA
Voltage protection level (Up) 1.7 kV
Voltage protection level (L-N) 1.5 kV
Voltage protection level (N-PE) 1.4 kV
Distribution systems TT, TN-S
Short-circuit withstand 100 kA
Maximum backup circuit breaker 125 A, curve B or C
Maximum backup fuse 125 A, gG/gL
Response time <25 ns
Ground residual current <10 µA
Mounting type 35 mm DIN rail
Protection rating IP20
Operating temperature -40 to +80 °C
Maximum operating altitude 2000 m
Solid conductor range 2.5–25 mm²
Stranded conductor range 2.5–16 mm²
Stripping length 12.5 mm
Fire resistance UL 94 V-0
Standards IEC 61643-11 / EN 61643-11
Dimensions (H × W × D) 88 × 71.2 × 58 mm
Weight 0.48 kg
Construction Pluggable

Frequently Asked Questions

What is the ABB OVR T2 3N 40-350 P QS used for?

The ABB OVR T2 3N 40-350 P QS is a Type 2 surge protection device designed to protect 230/400 V three-phase plus neutral electrical installations against transient overvoltages caused by indirect lightning and electrical switching events.

What is the discharge current rating of the OVR T2 3N 40-350 P QS?

The device has a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA, based on an 8/20 µs surge-current waveform.

What is the maximum continuous operating voltage?

The ABB OVR T2 3N 40-350 P QS has a maximum continuous operating voltage (Uc) of 350 V AC and is designed for 230/400 V AC electrical systems.

What voltage protection level does this ABB SPD provide?

The OVR T2 3N 40-350 P QS has an overall voltage protection level (Up) of 1.7 kV, with protection levels of 1.5 kV between L-N and 1.4 kV between N-PE.

Can the protection cartridges be replaced?

Yes. The OVR T2 3N 40-350 P QS has a pluggable construction. ABB specifies the OVR T2 40-350 C QS as the replacement phase cartridge and the OVR T2 N 80-350 C QS as the replacement neutral cartridge.
