Why Choose the ABB OVR T2 N 80-350 P QS Surge Protection Device?

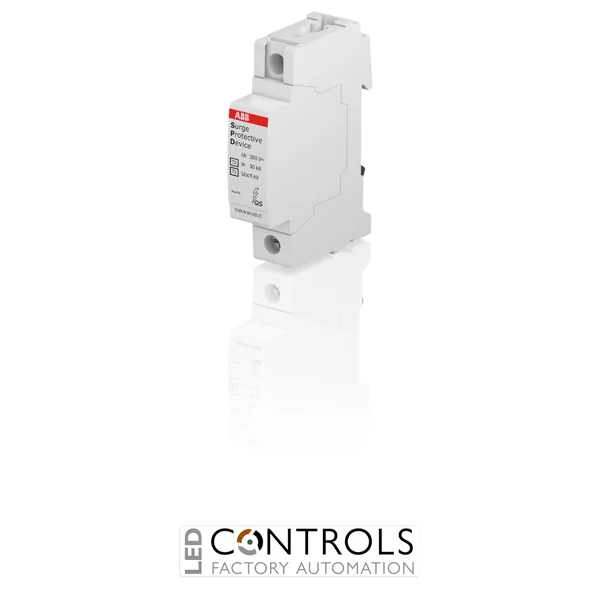

The ABB OVR T2 N 80-350 P QS, order code 2CTB803983R1900, is a pluggable Type 2 surge protection device (SPD) designed for neutral protection in low-voltage electrical installations. As part of the ABB OVR QuickSafe surge protection range, it helps protect electrical systems and connected equipment against transient overvoltages associated with indirect lightning and electrical switching events.
This single-pole neutral SPD provides a maximum discharge current (Imax) of 80 kA and a nominal discharge current (In) of 30 kA, both based on the standard 8/20 µs surge-current waveform. It also provides an impulse current capability of 2 kA with a 10/350 µs waveform and a voltage protection level (Up) of 1.4 kV.
With a 350 V AC maximum continuous operating voltage and compatibility with 230/400 V AC TT and TN-S systems, the OVR T2 N 80-350 P QS is suited to coordinated surge protection installations in industrial and commercial buildings. Its compact single-module, DIN rail-mounted and pluggable construction enables straightforward integration and maintenance within electrical distribution boards.
Key Advantages
- High-capacity Type 2 neutral surge protection for low-voltage electrical installations.
- 80 kA maximum discharge current (Imax) with an 8/20 µs waveform.
- 30 kA nominal discharge current (In) with an 8/20 µs waveform.
- 2 kA impulse current with a 10/350 µs waveform.
- 1.4 kV voltage protection level (Up) helps limit transient voltage reaching downstream equipment.
- 350 V AC maximum continuous operating voltage.
- Designed for TT and TN-S low-voltage distribution systems.
- Pluggable QuickSafe construction simplifies inspection and replacement.
Key Features
- ABB OVR QuickSafe surge protection range.
- Type 2 surge protection device.
- Single-pole neutral protection configuration.
- 80 kA maximum discharge current (8/20 µs).
- 30 kA nominal discharge current (8/20 µs).
- 2 kA impulse current (10/350 µs).
- 350 V AC maximum continuous operating voltage.
- 1.4 kV voltage protection level.
- 100 kA short-circuit withstand.
- Pluggable protection element for convenient maintenance.
- DIN rail mounting for electrical distribution boards.
- IP20 protection rating.
- Compliant with IEC 61643-11 / EN 61643-11.
Reliable Neutral Surge Protection for Electrical Systems
Type 2 surge protection devices are designed to protect low-voltage electrical installations and sensitive equipment against indirect surge events. They safely discharge transient currents characterised by an 8/20 µs waveform while limiting the residual voltage that reaches connected electrical and electronic equipment.
The ABB OVR T2 N 80-350 P QS is specifically designed as a neutral protection element for compatible TT and TN-S distribution systems. Its high discharge capacity, 1.4 kV protection level and pluggable QuickSafe construction make it suitable for coordinated surge protection arrangements where reliable performance and straightforward maintenance are required.
Typical Applications
- 230/400 V low-voltage electrical installations.
- TT and TN-S electrical distribution networks.
- Main and intermediate electrical distribution boards.
- Industrial electrical installations.
- Commercial building electrical systems.
- Neutral protection within coordinated surge protection systems.
- Protection of downstream electrical and electronic equipment.
- Protection against indirect lightning-induced and electrical switching surges.
