Why Choose the ABB OVR T1-T2 4L 100-255 P TS Surge Protective Device?

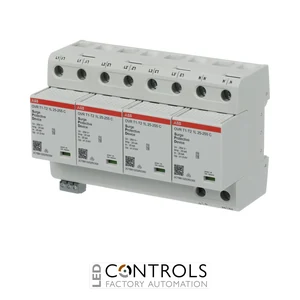

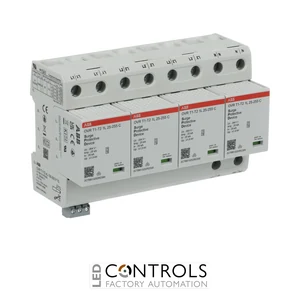

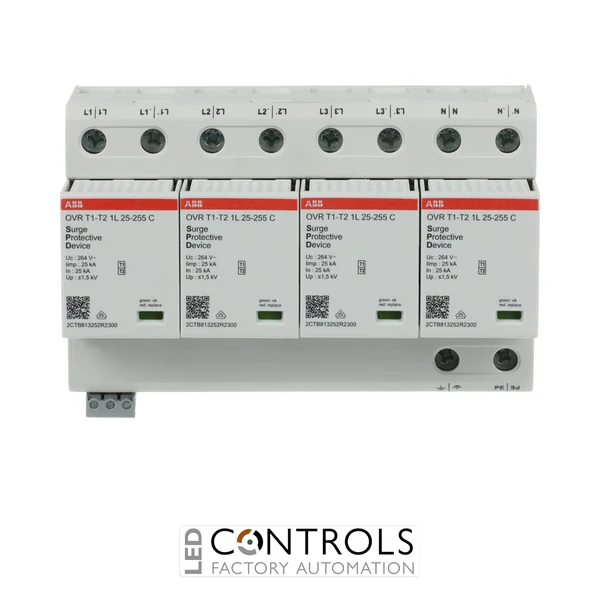

The ABB OVR T1-T2 4L 100-255 P TS is a high-capacity combined Type 1 + Type 2 surge protective device (SPD) designed to protect three-phase low-voltage electrical installations against lightning currents and transient overvoltages. Identified by ABB order code 2CTB812101R2300, this four-pole device is designed for TN-S distribution systems with a nominal system voltage of 230/400 V AC.
The device combines Type 1 lightning-current protection and Type 2 surge protection in a pluggable DIN rail assembly. Each protected path provides an impulse discharge current (Iimp) of 25 kA using a 10/350 µs waveform, giving a total lightning-current discharge capability of 100 kA across the four protected poles.
For transient surge protection, the OVR T1-T2 4L 100-255 P TS provides a 25 kA nominal discharge current (In) and a 60 kA maximum discharge current (Imax) per protected path using an 8/20 µs waveform. A 1.5 kV voltage protection level (Up), replaceable protection modules, local status indication and integrated TS remote signalling contacts make it particularly suitable for demanding commercial and industrial power-distribution applications.
Key Advantages
- Combined Type 1 + Type 2 protection against lightning currents and transient overvoltages.
- Four-pole configuration for 230/400 V AC TN-S systems.
- 25 kA impulse discharge current (Iimp) per pole using a 10/350 µs waveform.
- 100 kA total lightning-current discharge capability across the four protected poles.
- 60 kA maximum discharge current (Imax) per protected path using an 8/20 µs waveform.
- Low 1.5 kV voltage protection level (Up) helps limit stress on downstream equipment.
- Pluggable protection modules simplify servicing and replacement.
- TS remote signalling enables integration with building, control and maintenance monitoring systems.
Key Features
- ABB OVR T1-T2 surge protection range.
- Type 1 / Class I + Type 2 / Class II SPD.
- Four protected poles.
- 230/400 V AC nominal system voltage.
- 264 V AC maximum continuous operating voltage (Uc).
- 25 kA impulse discharge current (Iimp, 10/350 µs) per pole.
- 100 kA total discharge current (Itotal, 10/350 µs).
- 25 kA nominal discharge current (In, 8/20 µs).
- 60 kA maximum discharge current (Imax, 8/20 µs).
- 1.5 kV voltage protection level (Up).
- Visual operating-status indication.
- Integrated 1NO + 1NC remote signalling contacts.
- Pluggable modular construction for DIN rail installation.
Reliable Type 1 and Type 2 Protection for Power Distribution Systems
Combined Type 1 and Type 2 SPDs provide protection against both high-energy lightning-current impulses and lower-energy transient overvoltages. Type 1 performance is tested using the 10/350 µs lightning-current waveform, while Type 2 performance uses the 8/20 µs surge-current waveform. Combining both functions in one device helps provide coordinated protection at the electrical installation level.
The ABB OVR T1-T2 4L 100-255 P TS provides 25 kA Iimp per protected pole and 100 kA total lightning-current capability, together with a 1.5 kV protection level. Its pluggable construction simplifies maintenance, while visual indication and TS remote contacts allow protection status to be checked locally or integrated into a remote monitoring system.
Typical Applications
- 230/400 V AC TN-S electrical distribution systems.
- Main low-voltage distribution boards.
- Commercial and industrial switchboards.
- Industrial automation and control installations.
- Building electrical distribution systems.
- Installations requiring combined Type 1 and Type 2 surge protection.
- Systems requiring remote monitoring of surge protective device status.
