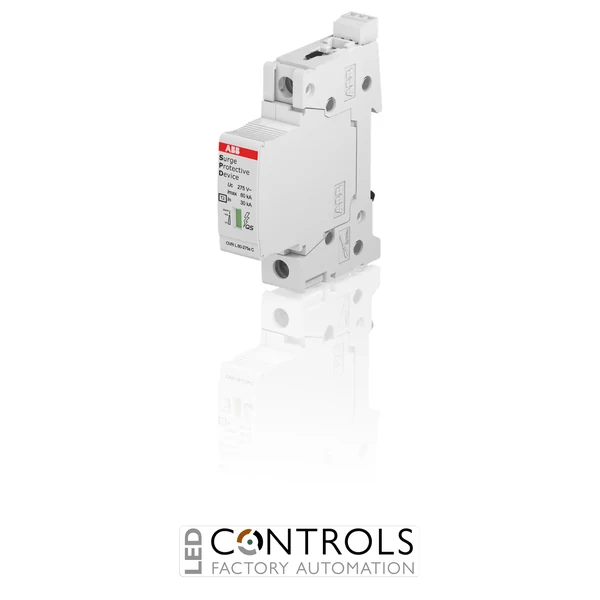

2CTB815708R0000 ABB OVR T2 80-275s P TS QS Surge Protective Device

2CTB815708R0000 ABB OVR T2 80-275s P TS QS Surge Protective Device

ABB OVR T2 80-275s P TS QS single-pole Type 2 pluggable surge protective device for 230/400 V AC TT, TN-C and TN-S systems, with 20 kA nominal discharge current, 80 kA maximum discharge current, Safety Reserve technology and remote signalling.

SKU: 2CTB815708R0000MPN: 2CTB815708R0000
Price
List Price £162.35 ex VAT
Your Price (ex VAT)
£162.35
Manufacturer Lead Time Estimated Delivery 10 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £162.35
Trade pricing is personalised to your account

Manufacturer Lead Time

£162.35

Why Choose the ABB OVR T2 80-275s P TS QS Surge Protective Device?

The ABB OVR T2 80-275s P TS QS is a single-pole Type 2 surge protective device (SPD) designed to protect low-voltage electrical installations against transient overvoltages caused by indirect lightning effects and electrical switching events. Identified by ABB order code 2CTB815708R0000, it is suitable for 230/400 V AC TT, TN-C and TN-S distribution systems.

Designed for applications requiring substantial surge-current capability, the OVR T2 80-275s P TS QS provides a 20 kA nominal discharge current (In), 80 kA maximum discharge current (Imax) using an 8/20 µs waveform and a 6.25 kA impulse current (Iimp) using a 10/350 µs waveform. Its maximum continuous operating voltage is 275 V AC, with a voltage protection level of 1.4 kV.

ABB combines its patented QuickSafe technology with a Safety Reserve system, pluggable construction and visual status indication. This TS version also incorporates 1NO + 1NC auxiliary contacts for remote status signalling, allowing the SPD condition to be integrated into monitoring, alarm or building-management systems.

Key Advantages

  • Type 2 / Class II surge protection for low-voltage AC distribution systems.
  • High 80 kA maximum discharge current (Imax) using an 8/20 µs waveform.
  • 20 kA nominal discharge current (In) for Type 2 surge protection.
  • 6.25 kA impulse current (Iimp) using a 10/350 µs waveform.
  • 1.4 kV voltage protection level (Up).
  • ABB Safety Reserve functionality maintains basic protection after the primary protection stage reaches end of life.
  • Patented QuickSafe technology with integrated thermal disconnection.
  • TS remote signalling enables external monitoring of SPD condition.
  • Pluggable cartridge construction simplifies maintenance and replacement.

Key Features

  • ABB OVR T2 surge protection range.
  • Type 2 / Class II surge protective device.
  • Single protected pole.
  • Varistor technology.
  • Suitable for TT, TN-C and TN-S systems.
  • 230/400 V AC nominal system voltage.
  • 275 V AC maximum continuous operating voltage (Uc).
  • 20 kA nominal discharge current (In, 8/20 µs).
  • 80 kA maximum discharge current (Imax, 8/20 µs).
  • 6.25 kA impulse current (Iimp, 10/350 µs).
  • 1.4 kV voltage protection level (Up).
  • 100 kA short-circuit withstand capability.
  • QuickSafe and Safety Reserve technologies.
  • Visual status indication plus 1NO + 1NC remote signalling contacts.
  • IP20 protection rating.
  • Pluggable, single-module DIN rail construction.

High-Capacity Type 2 Protection with Safety Reserve and Remote Signalling

Type 2 SPDs are designed to discharge transient surge currents generated by indirect lightning effects and electrical switching events. With an 80 kA maximum discharge current, the ABB OVR T2 80-275s P TS QS provides high surge-current capability while its 1.4 kV protection level helps limit transient voltage stress on downstream electrical and electronic equipment.

ABB's Safety Reserve system provides an additional protection stage when the primary varistor reaches its end-of-life condition, allowing maintenance to be planned while basic surge protection remains available. Combined with QuickSafe thermal disconnection, a visual status indicator, pluggable construction and 1NO + 1NC TS contacts, the device supports both local inspection and remote condition monitoring.

Typical Applications

  • 230/400 V AC low-voltage distribution systems.
  • TT, TN-C and TN-S electrical networks.
  • Main electrical distribution switchboards.
  • Intermediate and sub-distribution boards.
  • Commercial building electrical installations.
  • Industrial power-distribution systems.
  • Automation and control panels requiring high-capacity Type 2 surge protection.
  • Installations requiring remote monitoring of SPD condition.

Technical Specifications

Tick the specs you need, then view products that match.

Impulse Current Iimp (kA) 6.25 kA
Series OVR T2
ABB order code 2CTB815708R0000
Product group Surge Protection Devices
Product type Surge protective device
SPD classification Type 2 / Class II
Technology Varistor / ABB QuickSafe
Number of poles 1
Number of protected poles 1
Low-voltage distribution systems TT / TN-C / TN-S
Nominal voltage 230 V AC
Nominal system voltage 230/400 V AC
Maximum continuous operating voltage (Uc) 275 V AC
Nominal discharge current (In, 8/20 µs) 20 kA
Maximum discharge current (Imax, 8/20 µs) 80 kA
Impulse current (Iimp, 10/350 µs) 6.25 kA
Voltage protection level (Up) 1.4 kV
Response time <25 ns
Rated service short-circuit breaking capacity (Ics) 100 kA
Short-circuit withstand (Icc) 100 kA
Maximum backup fuse 160 A
Maximum backup MCB 125 A
Safety Reserve / preventive-maintenance function Yes
Integrated QuickSafe technology Yes
Status indicator Yes
Remote signalling Yes
Auxiliary contacts 1NO + 1NC
Minimum auxiliary-contact load 12 V DC / 10 mA
Maximum auxiliary-contact load 250 V AC / 1 A
Auxiliary-contact conductor cross-section 1.5 mm²
Solid conductor range 2.5–25 mm²
Stranded conductor range 2.5–35 mm²
Stripping length 12.5 mm
Protection rating IP20
Operating and storage temperature -40 to +80 °C
Maximum operating altitude 5000 m
Fire resistance UL 94 V-0
Power loss 28 mW
Mounting 35 mm DIN rail
Construction Pluggable
Width 1 modular space
Dimensions (H × W × D) 95.8 × 17.8 × 76.7 mm
Weight 0.15 kg
Standards IEC 61643-11 / EN 61643-11
Compatible replacement cartridge OVR T2 80-275s C QS
Replacement cartridge order code 2CTB815708R2600
EAN 3660308525406

Frequently Asked Questions

What is the ABB OVR T2 80-275s P TS QS used for?

It is a Type 2 surge protective device for protecting low-voltage TT, TN-C and TN-S electrical installations against transient overvoltages caused by indirect lightning effects and switching events.

What are the discharge-current ratings of this SPD?

The OVR T2 80-275s P TS QS has a nominal discharge current (In) of 20 kA and a maximum discharge current (Imax) of 80 kA using an 8/20 µs waveform. Its impulse current (Iimp) rating is 6.25 kA using a 10/350 µs waveform.

What does the “s” mean in OVR T2 80-275s P TS QS?

The “s” identifies ABB's Safety Reserve version. When the primary protection stage reaches its end-of-life condition, an additional varistor continues to provide basic surge protection until the SPD cartridge can be replaced.

What does TS mean on the OVR T2 80-275s P TS QS?

The TS designation indicates remote signalling. This model incorporates 1NO + 1NC auxiliary contacts rated up to 250 V AC / 1 A for external monitoring of SPD status.

Can the protection cartridge be replaced?

Yes. The SPD has a pluggable construction. The compatible replacement module is the ABB OVR T2 80-275s C QS, order code 2CTB815708R2600.

Trusted High-Capacity Surge Protection from ABB

ABB OVR Type 2 surge protective devices combine high surge-current capability with QuickSafe technology, Safety Reserve functionality, pluggable modules and condition signalling to support effective transient overvoltage protection and planned maintenance in low-voltage distribution systems.
