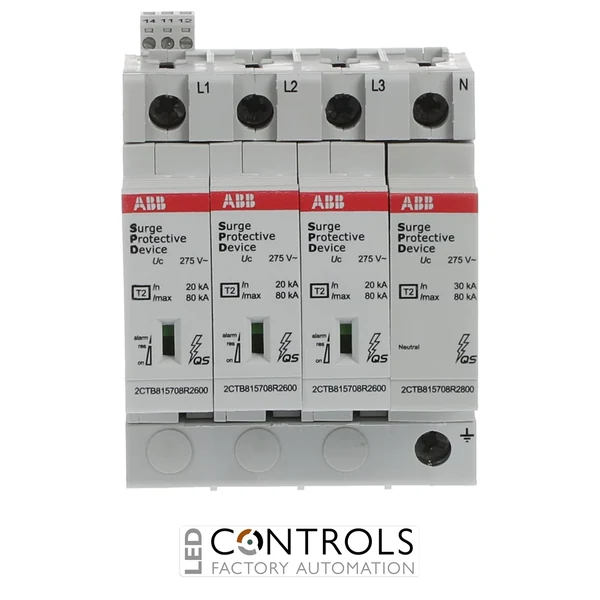

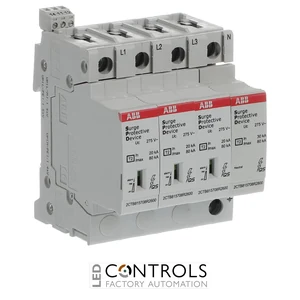

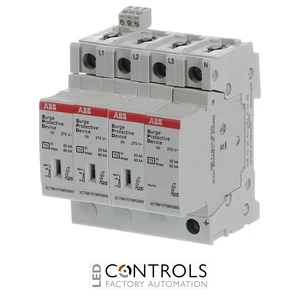

2CTB815708R0800 ABB OVR T2 3N 80-275s P TS QS Surge Protective Device

2CTB815708R0800 ABB OVR T2 3N 80-275s P TS QS Surge Protective Device

ABB OVR T2 3N 80-275s P TS QS is a pluggable 3+1 Type 2 surge protective device for 230/400 V AC TN-S and TT systems, with Safety Reserve technology, 30 kA nominal discharge current, 80 kA maximum discharge current, 275 V AC maximum continuous operating voltage and remote status signalling.

SKU: 2CTB815708R0800MPN: 2CTB815708R0800
Price
List Price £595.47 ex VAT
Your Price (ex VAT)
£595.47
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £595.47
Trade pricing is personalised to your account

Manufacturer Lead Time

£595.47

Why Choose the ABB OVR T2 3N 80-275s P TS QS Surge Protective Device?

The ABB OVR T2 3N 80-275s P TS QS, order code 2CTB815708R0800, is a high-capacity Type 2 surge protective device (SPD) designed for three-phase plus neutral 230/400 V AC TN-S and TT electrical systems. It is suitable for installation at the origin of an installation, in intermediate distribution boards and close to terminal equipment, providing protection against transient overvoltages generated by indirect lightning strikes and electrical switching events.

The OVR T2 3N 80-275s P TS QS uses a 3+1 protection configuration with four protected lines and a maximum continuous operating voltage Uc of 275 V AC. It provides a nominal discharge current In of 30 kA and a maximum discharge current Imax of 80 kA using the 8/20 µs waveform, together with an impulse-current capability Iimp of 6.25 kA using the 10/350 µs waveform.

ABB's patented Safety Reserve system provides additional protection availability and supports planned preventive maintenance, while integrated QuickSafe technology provides dependable thermal disconnection. Pluggable phase and neutral cartridges, end-of-life indication and TS remote signalling make this SPD particularly well suited to demanding commercial and industrial installations where straightforward servicing and remote condition monitoring are required.

Key Advantages

  • High-capacity Type 2 / Class II surge protection for three-phase plus neutral systems.
  • Designed for 230/400 V AC TN-S and TT networks.
  • 80 kA maximum discharge current using the 8/20 µs waveform.
  • 30 kA nominal discharge current for robust transient surge suppression.
  • 6.25 kA impulse-current capability using the 10/350 µs waveform.
  • 80 kA total-current capability.
  • Safety Reserve technology increases protection availability and supports preventive maintenance.
  • Integrated QuickSafe thermal disconnection improves operational safety.
  • TS remote signalling enables connection to monitoring and alarm systems.
  • Pluggable phase and neutral cartridges simplify servicing and replacement.
  • 100 kA short-circuit withstand capability supports demanding electrical installations.

Key Features

  • ABB OVR T2 QuickSafe series.
  • Type 2 / Class II surge protective device.
  • 3+1 protection configuration.
  • Four protected lines: L-N, L-PE and N-PE protection paths.
  • Designed for TN-S and TT low-voltage distribution systems.
  • 230/400 V AC nominal system voltage.
  • 275 V AC maximum continuous operating voltage Uc.
  • 30 kA nominal discharge current In.
  • 80 kA maximum discharge current Imax.
  • 6.25 kA impulse current Iimp.
  • 1.5 kV L-PE, 1.4 kV L-N and 1.4 kV N-PE voltage protection levels.
  • Safety Reserve preventive-maintenance function.
  • Pluggable construction with end-of-life status indication.
  • 1 NO + 1 NC auxiliary contacts for remote signalling.

High-Capacity Safety Reserve Protection for Three-Phase Plus Neutral Systems

Type 2 SPDs are designed to discharge surge currents generated by indirect lightning strikes and switching operations before damaging transient voltages reach connected equipment. With a 30 kA nominal discharge current, 80 kA maximum discharge current and coordinated 3+1 topology, the ABB OVR T2 3N 80-275s P TS QS provides robust surge protection for demanding three-phase plus neutral TN-S and TT installations.

ABB's patented Safety Reserve system provides an additional protection stage so the SPD is not completely disconnected from the network when the primary protection element reaches end of life. This helps maintain basic protection until maintenance can be performed. Combined with individually replaceable cartridges, end-of-life indication and TS auxiliary contacts, the design supports efficient preventive maintenance and remote SPD condition monitoring.

Typical Applications

  • Three-phase plus neutral 230/400 V AC TN-S installations.
  • Three-phase plus neutral 230/400 V AC TT installations.
  • Main low-voltage distribution switchboards.
  • Intermediate and sub-distribution boards.
  • Commercial building electrical systems.
  • Industrial and manufacturing facilities.
  • Protection of automation, control and sensitive electronic equipment.
  • Installations exposed to significant transient surge currents.
  • Applications requiring Safety Reserve preventive-maintenance functionality.
  • Systems requiring remote surge-protection status monitoring.

Technical Specifications

Tick the specs you need, then view products that match.

Impulse Current Iimp (kA) 6.25 kA
Series OVR T2 QuickSafe
ABB order code 2CTB815708R0800
EAN / GTIN 3660308525444
Product group Surge Protection Devices
Product type Type 2 surge protective device
SPD classification Type 2 / Class II
Standards IEC 61643-11 / EN 61643-11
Low-voltage distribution systems TN-S / TT
Configuration 3+1
Number of poles 4
Number of protected lines 4
Nominal system voltage 230 / 400 V AC
Maximum continuous operating voltage Uc 275 V AC
Current type / frequency AC, 47–63 Hz
Impulse current Iimp (10/350 µs) 6.25 kA
Nominal discharge current In (8/20 µs) 30 kA
Maximum discharge current Imax (8/20 µs) 80 kA
Total current 80 kA
Voltage protection level Up, L-PE 1.5 kV
Voltage protection level Up, L-N 1.4 kV
Voltage protection level Up, N-PE 1.4 kV
Short-circuit withstand capability Isccr 100 kA
Follow-current interrupting capability 0.1 kA N-PE
Ground residual current <10 µA
TOV withstand, L-N / N-PE 337 / 1200 V
Maximum backup circuit breaker 125 A, B or C curve
Maximum backup fuse 160 A gG/gL
Integrated thermal disconnector Yes
QuickSafe technology Yes
Safety Reserve Yes
Preventive maintenance function Yes
End-of-life indicator Yes
Remote signalling Yes
Normally open auxiliary contacts 1
Normally closed auxiliary contacts 1
Minimum auxiliary contact load 12 V DC / 10 mA
Maximum auxiliary contact load 250 V AC / 1 A
Solid conductor connection 2.5–35 mm²
Stranded conductor connection 2.5–25 mm²
Wire stripping length 12.5 mm
Construction Pluggable
Phase replacement cartridge OVR T2 80-275s C QS
Phase replacement cartridge order code 2CTB815708R2600
Neutral replacement cartridge OVR T2 N 80-275s C QS
Neutral replacement cartridge order code 2CTB815708R2800
Degree of protection IP20
Flammability rating UL 94 V-0
Operating temperature -40 to +80 °C
Maximum operating altitude 2000 m
Response time <25 ns
Mounting type 35 mm DIN rail
Module width 4 modules
Dimensions (H × W × D) 95 × 71.2 × 69.4 mm
Dimensions with TS auxiliary contact (H × W × D) 95.8 × 71.2 × 76.7 mm
Weight approx. 0.60 kg

Frequently Asked Questions

What is the ABB OVR T2 3N 80-275s P TS QS used for?

It is a Type 2 surge protective device designed for three-phase plus neutral 230/400 V AC TN-S and TT systems, protecting electrical installations and connected equipment against transient overvoltages caused by indirect lightning effects and electrical switching events.

What are the discharge-current ratings of the OVR T2 3N 80-275s P TS QS?

The device has a nominal discharge current In of 30 kA and a maximum discharge current Imax of 80 kA using the 8/20 µs waveform, together with a 6.25 kA impulse-current capability using the 10/350 µs waveform.

What does the “s” mean in OVR T2 3N 80-275s?

The “s” identifies ABB's Safety Reserve version. The Safety Reserve system provides an additional protection stage that maintains basic surge protection when the primary protection element reaches end of life, allowing maintenance to be planned while the installation retains a level of protection.

What does TS mean on the OVR T2 3N 80-275s P TS QS?

The TS version includes remote signalling through one normally open and one normally closed auxiliary contact, allowing SPD condition information to be integrated with suitable monitoring, alarm or building-management systems.

Can the phase and neutral protection cartridges be replaced?

Yes. The device uses pluggable cartridges. The phase replacement cartridge is the ABB OVR T2 80-275s C QS, order code 2CTB815708R2600, while the neutral replacement cartridge is the ABB OVR T2 N 80-275s C QS, order code 2CTB815708R2800.

Trusted ABB Surge Protection Technology

ABB OVR Type 2 surge protective devices combine high surge-current capability, QuickSafe technology and pluggable construction, with the OVR T2 3N 80-275s P TS QS delivering Safety Reserve preventive maintenance, 80 kA maximum discharge capability and remote status signalling for demanding three-phase plus neutral TN-S and TT electrical installations.
