Why Choose the ABB OVR T2 80-440s P QS Surge Protective Device?

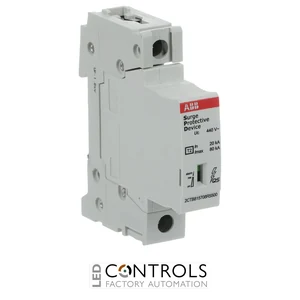

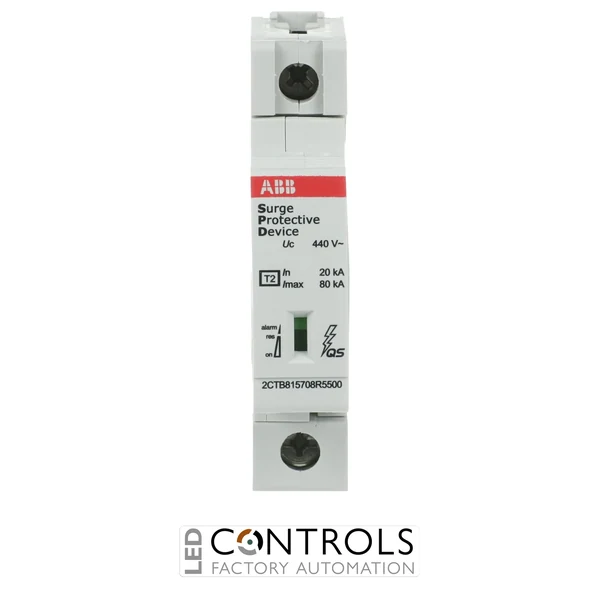

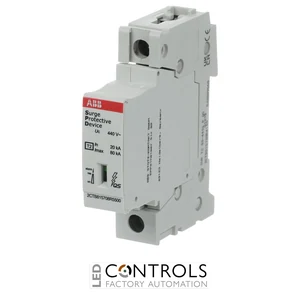

The ABB OVR T2 80-440s P QS, order code 2CTB815708R4100, is a high-performance Type 2 surge protective device (SPD) designed to protect low-voltage electrical installations and sensitive equipment against transient overvoltages caused by indirect lightning effects and switching events. As part of the ABB OVR QuickSafe surge protection range, this single-pole device combines high surge-current capability with a compact, pluggable DIN-rail design for dependable protection in electrical distribution systems.
The OVR T2 80-440s P QS uses varistor-based surge protection and incorporates an integrated thermal disconnector, end-of-life indication and ABB's QuickSafe safety reserve technology. Its replaceable protection module simplifies servicing, while the mechanical status indicator provides straightforward visual confirmation of the device's operating condition.
With a maximum continuous operating voltage (Uc) of 440 V AC, nominal discharge current (In) of 20 kA and maximum discharge current (Imax) of 80 kA, this Type 2 SPD provides substantial protection against 8/20 µs surge currents. Its 1.8 kV voltage protection level (Up) helps limit transient voltages reaching downstream equipment in 400 V AC electrical systems.
Key Advantages
- High-performance Type 2 surge protection for low-voltage electrical installations.
- 80 kA maximum discharge current (Imax) for robust protection against transient surge events.
- 20 kA nominal discharge current (In) with an 8/20 µs waveform.
- 440 V AC maximum continuous operating voltage (Uc).
- Low 1.8 kV voltage protection level (Up) helps protect downstream equipment.
- QuickSafe technology with integrated thermal disconnection and safety reserve.
- Plug-in protection module enables straightforward replacement and maintenance.
- Mechanical end-of-life indicator provides convenient local status checking.
- Compact single-module design for efficient DIN-rail installation.
Key Features
- ABB OVR T2 QuickSafe surge protective device series.
- Type 2 / Class II surge protection.
- Single-pole, one protected-line configuration.
- Maximum discharge current (Imax): 80 kA.
- Nominal discharge current (In): 20 kA.
- Impulse current (Iimp): 6.25 kA.
- Maximum continuous operating voltage (Uc): 440 V AC.
- Voltage protection level (Up): 1.8 kV.
- Suitable for nominal 400 V AC networks.
- Integrated thermal disconnector and end-of-life indicator.
- Pluggable, replaceable protection module.
- DIN-rail mounting and System pro M compact compatibility.
- IP20 degree of protection.
- Designed and tested as a Type 2 SPD according to IEC 61643-11.
Reliable Surge Protection for Electrical Distribution Systems
Type 2 surge protective devices are designed to discharge transient currents generated by indirect lightning strikes and switching operations before damaging overvoltages can reach sensitive downstream equipment. The ABB OVR T2 80-440s P QS safely handles surge currents with the characteristic 8/20 µs waveform while limiting the residual voltage presented to the protected installation.
The ABB OVR QuickSafe design combines high surge-current capability with practical maintenance features. Its pluggable module can be replaced without changing the complete base assembly, while the integrated thermal disconnector, safety reserve and mechanical end-of-life indication support dependable operation and straightforward maintenance in distribution boards.
Typical Applications
- Low-voltage main distribution switchboards.
- Sub-distribution boards and final electrical circuits.
- Industrial control panels and automation installations.
- Commercial and industrial buildings.
- Machinery and production equipment power distribution.
- 400 V AC electrical networks requiring Type 2 surge protection.
- Protection against indirect lightning-induced and switching overvoltages.
